ZT30 | Gimbals & Cameras

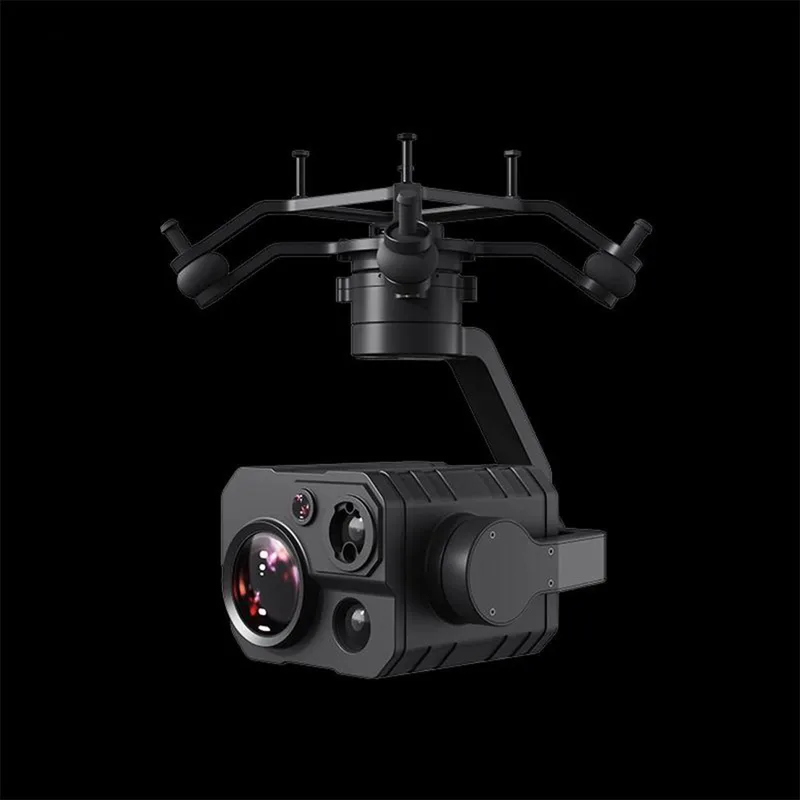

ZT30 Four-Sensor

Thermal imager: 640 x 512, 19 mm focal length, 30 fps
Sensors: 4K 30x optical zoom, 640 x 512 thermal, laser rangefinder, 2K wide-angle
Laser rangefinder: 1,200 m

$9,285USD · EXW Hong Kong

Send inquiry

SKUZT30

MOQ1 PC

Lead timeTo be confirmed in the quotation for the selected configuration and destination

Price basisUSD · EXW Hong Kong

Product Overview

The ZT30 Four-Sensor belongs to the Aerosys gimbal camera range. Four-sensor optical pod combining a 30x optical zoom 4K camera, a 640 x 512 thermal imager, a 1,200 m laser rangefinder and a 2K wide-angle camera. Zoom is listed as 30x optical, 180x hybrid, with control at S.Bus, Ethernet, UDP/TCP, UART; ArduPilot and PX4 compatible. Quotations are prepared for the selected configuration, with included items itemised before order.

Technical Specifications

Parameter	Value
Sensor
Thermal imager	640 x 512, 19 mm focal length, 30 fps
Laser rangefinder	1,200 m
Zoom	30x optical, 180x hybrid
Stabilization and control
Yaw axis	360-degree continuous rotation
Additional published specifications
Sensors	4K 30x optical zoom, 640 x 512 thermal, laser rangefinder, 2K wide-angle
Stabilisation	3-axis
Control	S.Bus, Ethernet, UDP/TCP, UART; ArduPilot and PX4 compatible
AI tracking	supported with the optional SIYI AI tracking module

Configuration and supply

MOQ1 PC

Price$9,285

Price basisEXW Hong Kong; freight, insurance, import duty, VAT and destination charges excluded.

Supply scopeItemised in the quotation for the selected configuration.

Lead timeConfirmed in the quotation for the selected configuration and destination.

PackingDimensions and gross weight confirmed with the quotation.

Export documents are confirmed per destination.

Application Scenarios

Powerline and tower inspection
Security and perimeter surveillance
Search and rescue support
Mapping and photogrammetry
Firefighting and maritime patrol

Related applications

UAV Powerline & Transmission Line Inspection

Recommended: AT-G10, AT-G190, ZT30, AT-135T, G30

View application →

UAV Security & Perimeter Surveillance

Recommended: AT-135T, ZT30, G30, AT-T35

View application →

UAV Surveying, Mapping & Photogrammetry

Recommended: AT-G10, ZT30

View application →

Industrial Plant & Pipeline Inspection with UGV and UAV

Recommended: ZT30

View application →

Related applications

Frequently Asked Questions

What endurance and range are published for the ZT30 Four-Sensor?

Laser rangefinder: 1,200 m. Actual figures depend on payload, speed, altitude and mission profile; confirm the intended configuration before order.

What is included in one set?

The quotation itemises the selected items and accessories, ground equipment where applicable, and documentation for the chosen configuration. MOQ is 1 PC; lead time is confirmed per order.

Can the ZT30 Four-Sensor be configured for a specific mission?

Send the payload or sensor, interface, operating environment, quantity and destination. The configuration and supply scope is confirmed before quotation.

How are price and shipping handled?

Prices are in USD on an EXW Hong Kong basis. Freight, insurance, import duty, VAT and destination charges are additional. Packing and shipping are confirmed with the quotation.
