AT-100D | Gimbals & Cameras

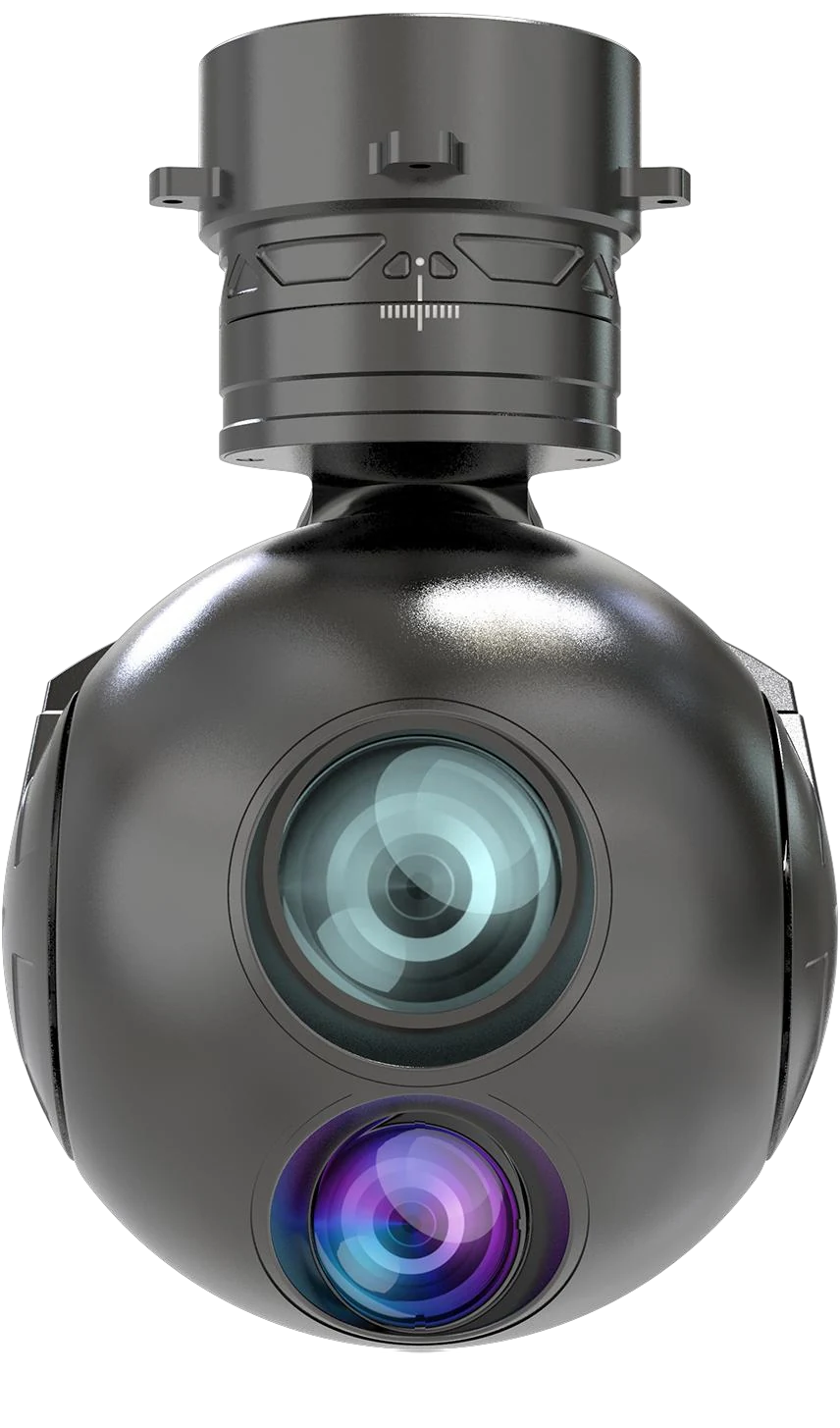

AT-100D Three-Axis Dual-Light Gimbal

Dimensions: ≤Φ100mm×160mm, weight ≤800g
Stabilization: N×360° azimuth / -120°~+40° elevation
LWIR: 8-14μm / 640×512 / 12μm / 19mm F1.0 / FOV 23°×18.4°

$4,588USD · EXW Hong Kong

Send inquiry

SKUAT-100D

MOQ1 SET

Lead timeTo be confirmed in the quotation for the selected configuration and destination

Price basisUSD · EXW Hong Kong

Product Overview

The AT-100D Three-Axis Dual-Light Gimbal belongs to the Aerosys gimbal camera range. The AT-100D is a three-axis gyro-stabilized dual-light gimbal with a compact and lightweight industrial design. For TV, the published value is 0.4-0.9μm / 1920×1080 / f=4.7-47mm (10×) / HFOV 58.3°-7.1°; stabilization is published as N×360° azimuth / -120°~+40° elevation. Configuration and supply scope are confirmed for the selected set and itemised in the quotation.

Technical Specifications

Parameter	Value
Sensor
TV	0.4-0.9μm / 1920×1080 / f=4.7-47mm (10×) / HFOV 58.3°-7.1°
LWIR	8-14μm / 640×512 / 12μm / 19mm F1.0 / FOV 23°×18.4°
Detection	TV person 2.7 km / vehicle 11.9 km; LWIR person 0.9 km / vehicle 4.0 km
Stabilization and control
Stabilization	N×360° azimuth / -120°~+40° elevation
Mechanical and installation
Dimensions	≤Φ100mm×160mm, weight ≤800g
Power	11-28 VDC, 15W avg / 30W peak

Configuration and supply

MOQ1 SET

Price$4,588

Price basisEXW Hong Kong; freight, insurance, import duty, VAT and destination charges excluded.

Supply scopeItemised in the quotation for the selected configuration.

Lead timeConfirmed in the quotation for the selected configuration and destination.

PackingDimensions and gross weight confirmed with the quotation.

Export documents are confirmed per destination.

Application Scenarios

Powerline and tower inspection
Security and perimeter surveillance
Search and rescue support
Mapping and photogrammetry
Firefighting and maritime patrol

Related applications

UAV Powerline & Transmission Line Inspection

Recommended: AT-G10, AT-G190, ZT30, AT-135T, G30

View application →

UAV Security & Perimeter Surveillance

Recommended: AT-135T, ZT30, G30, AT-T35

View application →

UAV Surveying, Mapping & Photogrammetry

Recommended: AT-G10, ZT30

View application →

Industrial Plant & Pipeline Inspection with UGV and UAV

Recommended: ZT30

View application →

Frequently Asked Questions

What is included in one set?

The quotation itemises the selected items and accessories, ground equipment where applicable, and documentation for the chosen configuration. MOQ is 1 SET; lead time is confirmed per order.

Can the AT-100D Three-Axis Dual-Light Gimbal be configured for a specific mission?

Send the payload or sensor, interface, operating environment, quantity and destination. The configuration and supply scope is confirmed before quotation.

How are price and shipping handled?

Prices are in USD on an EXW Hong Kong basis. Freight, insurance, import duty, VAT and destination charges are additional. Packing and shipping are confirmed with the quotation.

What documentation is supplied with the AT-100D Three-Axis Dual-Light Gimbal?

The quotation lists the available datasheet, manual and packing information for the selected configuration. Confirm the required documents with the inquiry.

How is the AT-100D Three-Axis Dual-Light Gimbal supported after delivery?

Support and after-sales terms are confirmed with the quotation. Send the configuration, quantity and destination so the applicable terms can be stated.
