Flight controllers for UAV integration
Explore 14 CUAV and ZeroOne AeroSpace models and configurations, with product details and published specifications here on Aerosys. Tell us your requirements to confirm configuration, quantity and terms.
CUAV flight controllers
Six current CUAV intelligent controller models, with selected controller and power-board configurations.

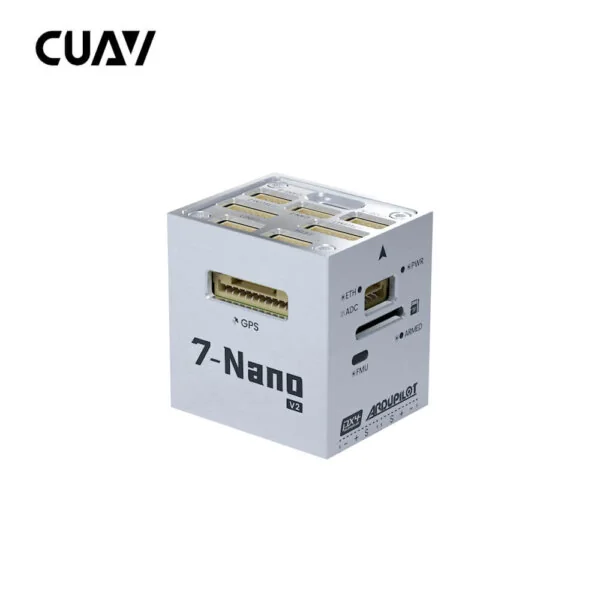

CUAV 7-Nano V2
CUAV 7-Nano V2 is a 33 g flight controller with dual IMUs, 100 Mbit Ethernet and switchable 3.3 V/5 V PWM in a 30.5 × 25.5 × 31.8 mm form factor.

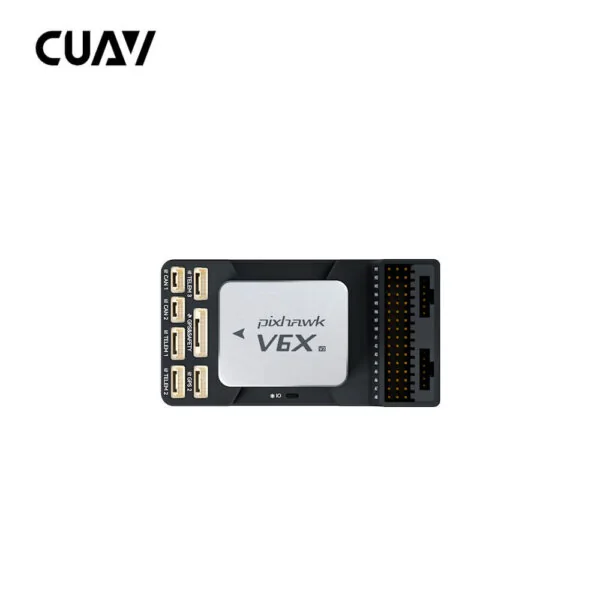

CUAV Pixhawk V6X V2
A modular FMU v6X flight controller with three dissimilar IMUs, dual barometers and 16 PWM I/O, shown with the CUAV PMU 2 Lite package.

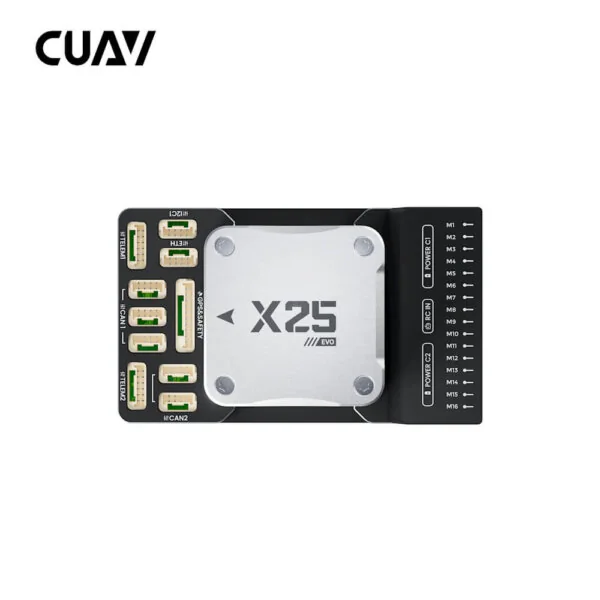

CUAV X25 EVO
CUAV X25 EVO lists three IMUs, two barometers, RM3100, five CAN connections and PMU 2 Lite support for industrial UAV integration.
CUAV X7+ Pro
A modular CUAV flight controller for carrier-board integration, with two CAN buses, two GPS ports and DShot support on outputs M1–M12.

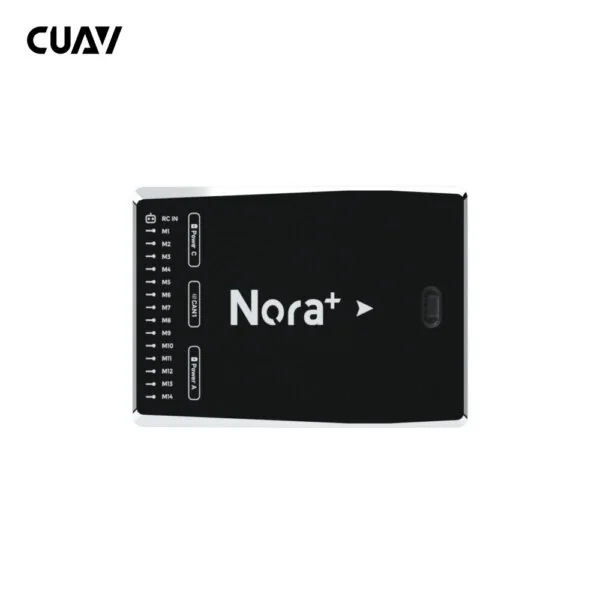

CUAV Nora+
A compact CUAV controller with side-facing interfaces, three IMUs, two barometers, dual Type-C ports and custom carrier-board support.
CUAV X25 MEGA
An industrial CUAV flight controller with ADIS-16607, a detachable CORE module, Ethernet and five CAN connections.
CUAV 7-Nano V2 with CAN PDB
The CUAV 7-Nano V2 with CAN PDB pairs the compact flight controller with a CAN power-distribution configuration.
CUAV X7+ Pro CORE
CUAV X7+ Pro CORE is a modular flight-controller core for custom carrier-board integration.

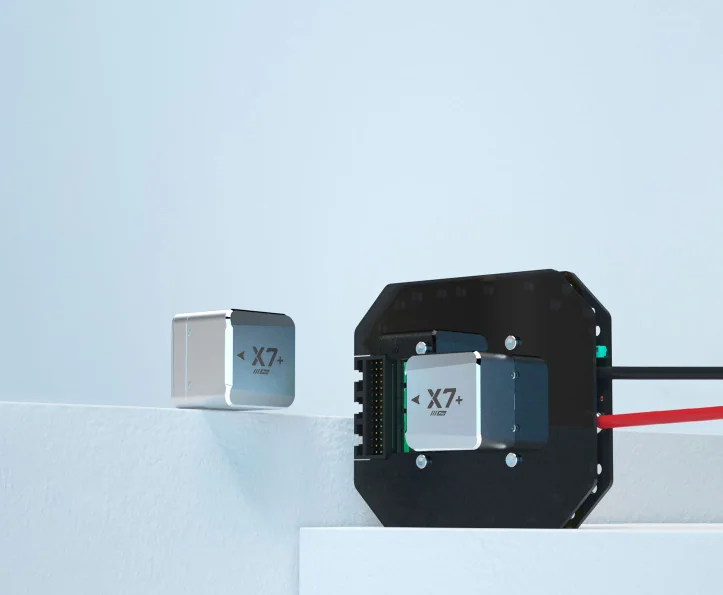

CUAV CAN PDB + X7+ Pro CORE
The CUAV CAN PDB + X7+ Pro CORE combines the flight-controller core and power-distribution assembly.
ZeroOne AeroSpace flight controllers
Five ZeroOne X6 and X9 controller models for platform integration.
ZeroOne X6
ZeroOne X6 is an FMU v6X flight controller with triple IMUs, 100 Mbit Ethernet and switchable 3.3 V/5 V PWM.
ZeroOne X6 Air+
Compact FMU v6C flight controller with dual ICM45686 IMUs, built-in damping, 15 PWM outputs and ArduPilot/PX4 support.
ZeroOne X6 Pro
ZeroOne X6 Pro combines an FMU v6X design, redundant sensors, temperature compensation and 100 Mbit Ethernet.

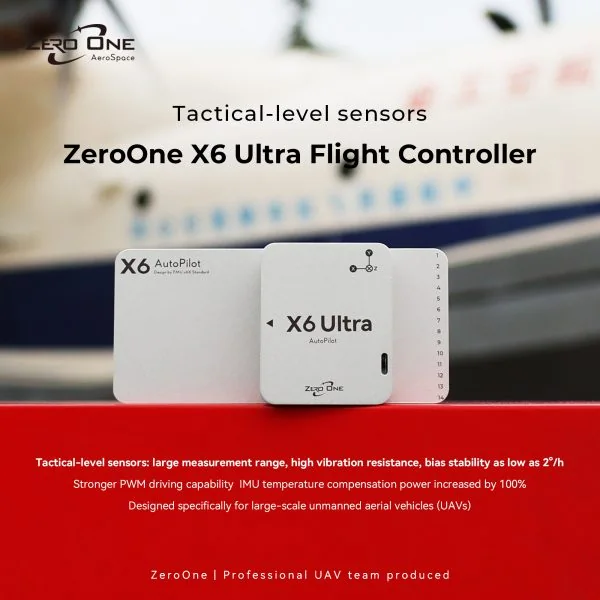

ZeroOne X6 Ultra
ZeroOne X6 Ultra lists an STM32H753, SCH16T sensors, triple-IMU redundancy, RM3100 and 100 Mbit Ethernet.
ZeroOne X9 Series
ZeroOne X9 is a modular flight-controller series with triple-redundant sensors, OneDam vibration damping and configurable interface baseboards.
Need a configuration check?
Tell us your airframe, firmware target, required interfaces, quantity and destination. We will confirm the appropriate controller and package before quoting.
Send your requirements
