X6 | Flight Controllers

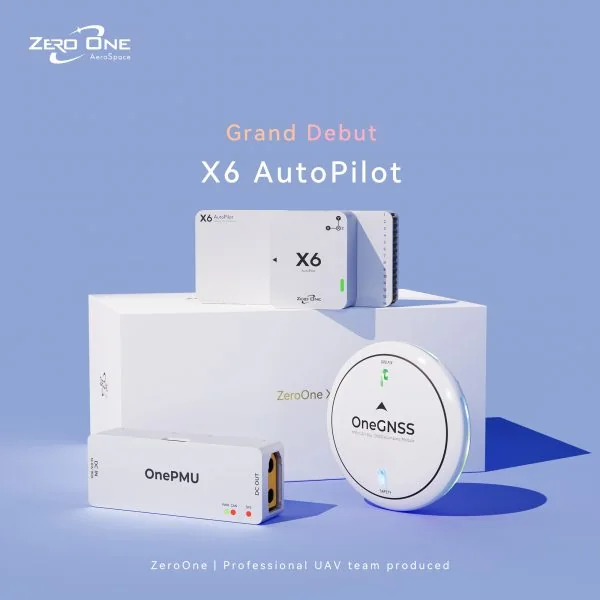

ZeroOne X6 Flight Controller
ZeroOne X6 is an FMU v6X flight controller with triple IMUs, 100 Mbit Ethernet and switchable 3.3 V/5 V PWM.
- Hardware architecture: FMU v6X
- Ethernet: 100 Mbit interface
- PWM level: switchable 3.3 V / 5 V
$523
Product overview
The ZeroOne X6 controller uses FMU v6X architecture with three IMUs, built-in vibration isolation, an RM3100 compass, 100 Mbit Ethernet and switchable 3.3 V / 5 V PWM levels. It supports ArduPilot and PX4.
Product features
- FMU v6X controller with three IMUs and built-in vibration isolation.
- IMU temperature compensation and an RM3100 compass support sensor stability.
- 100 Mbit Ethernet and switchable 3.3 V / 5 V PWM levels support integration.
- ArduPilot and PX4 firmware support.
Published technical specifications
| Parameter | Published value |
|---|---|
| Hardware architecture | FMU v6X |
| Processor | STM32H7 family |
| IMU design | Three redundant IMUs; ICM-45686 listed |
| Compass | RM3100 |
| Ethernet | 100 Mbit interface |
| PWM level | Switchable 3.3 V / 5 V |
| Firmware | ArduPilot and PX4 |
Integration and quotation
Share the airframe type, firmware target and version, I/O map, power system, quantity and destination in a quote request.
- Aircraft type and available mounting space
- Target firmware and required connectors, buses and outputs
- Power source, peripheral voltage and package options
- Quantity and destination for the quotation
Compare models in the CUAV and ZeroOne flight controller catalog.
