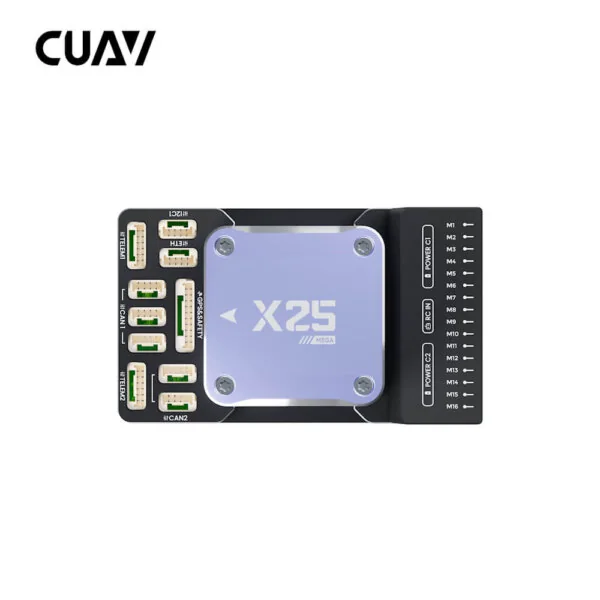

CUAV X25 MEGA Flight Controller
An industrial CUAV flight controller with ADIS-16607, a detachable CORE module, Ethernet and five CAN connections.
- PWM outputs: 16
- Controller input: 10–18 V
- PMU 2 Lite input: 20–70 V
$639–689
Product overview
X25 MEGA pairs an STM32H7 processor with an ADIS-16607, IIM-42652 and IIM-42653 sensor set, a detachable CORE module, 16 PWM outputs, Ethernet and five CAN connections. It supports 10–18 V controller input and 20–70 V PMU 2 Lite input across listed options.
Product features
- Industrial controller built around an ADIS-16607 IMU and a removable CORE module.
- Redundant sensor set, dual temperature compensation and vibration isolation are listed by CUAV.
- Ethernet, multiple CAN connections and PMU 2 power-module support are available for integration.
Published technical specifications
| Parameter | Published value |
|---|---|
| Processor | STM32H7 Cortex-M7, 480 MHz |
| IMUs | ADIS-16607, IIM-42652 and IIM-42653 |
| Compass | RM3100 |
| Barometers | ICP-20100 and BMP581 |
| PWM outputs | 16 |
| GPS / telemetry | 2 GPS ports / 2 telemetry ports |
| CAN / Ethernet | CAN1 × 3, CAN2 × 2 / 1 Ethernet port |
| Controller input | 10–18 V |
| PMU 2 Lite input | 20–70 V |
| Operating temperature | −20 to 85 °C |
| Dimensions | 76.5 × 45.45 × 32.2 mm |
| Controller weight | 108.5 g |
Integration and quotation
Plan the controller and PMU power inputs separately, then specify the required CORE, PMU and interface options, quantity and destination in a quote request.
- Aircraft type and available mounting space
- Target firmware and required connectors, buses and outputs
- Power source, peripheral voltage and package options
- Quantity and destination for the quotation
