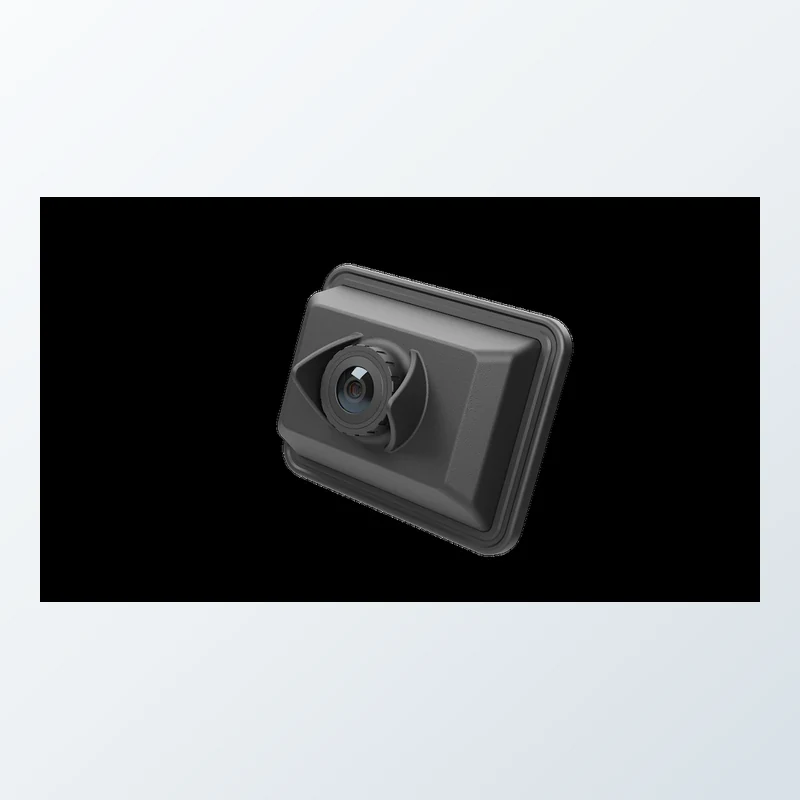

Skydroid C01PRO
- Stabilisation: EIS (electronic image stabilisation)
- Camera: 5 MP, 1/2.53-inch sensor, F2.2, 2.20 mm lens
- Field of view: HFOV 154.4° / VFOV 111.8° / DFOV 204°
Product overview
60 g wide-angle camera pod that stabilises electronically instead of on mechanical axes: a 5 MP 1/2.53-inch sensor behind a 2.20 mm F2.2 lens gives 154.4° horizontal field of view, with pitch adjustable from -90° to 0°. Video leaves over a network port as a 1280 × 720 30 fps H.265 RTSP stream, and the housing is rated IP65.
Choosing your configuration
For a camera payload, compare optical functions, mounting, power and control/video interfaces. Tell us the carrier platform and imaging task; confirm included accessories and any integration work in the quotation.
Aerosys Technology is an authorized Skydroid dealer. Please confirm the exact model, included items and support terms in your quotation.
Pricing and quotation
Where a price is displayed, it applies to the listed configuration and quantity tier. Ask for a quotation to confirm included items, optional accessories, shipping charges and the current order total. Availability, delivery and support terms will be confirmed for your order.
Product questions
What should I check before selecting this model?
For a camera payload, compare optical functions, mounting, power and control/video interfaces. Tell us the carrier platform and imaging task; confirm included accessories and any integration work in the quotation.
What information do you need for a quotation?
Send the model or SKU, quantity, destination and intended civil or commercial use through the inquiry form or the existing email and WhatsApp channels. Include the equipment you plan to connect so we can discuss the configuration.
Does the displayed price cover every configuration?
Where a price is displayed, it applies to the listed configuration and quantity tier. Ask for a quotation to confirm included items, optional accessories, shipping charges and the current order total. Availability, delivery and support terms will be confirmed for your order.
- Stabilisation:EIS (electronic image stabilisation)
- Camera:5 MP, 1/2.53-inch sensor, F2.2, 2.20 mm lens
- Field of view:HFOV 154.4° / VFOV 111.8° / DFOV 204°
- Gimbal angles:pitch -90° to 0°
- Video output:network port, RTSP H.265 stream at 1280 × 720 30 fps
- Power:7.2-80 V, 100 mA at 12 V
Configuration and application fit
Published selection points
- Published specification: Stabilisation: EIS (electronic image stabilisation)
- Published specification: Camera: 5 MP, 1/2.53-inch sensor, F2.2, 2.20 mm lens
- Published specification: Field of view: HFOV 154.4° / VFOV 111.8° / DFOV 204°
- Published specification: Gimbal angles: pitch -90° to 0°
- Published specification: Video output: network port, RTSP H.265 stream at 1280 × 720 30 fps
- Published specification: Power: 7.2-80 V, 100 mA at 12 V
For a configuration quote, send the model, quantity, destination and intended civil or commercial use. Add the required interface, payload, cargo or sensor details where relevant so the supply scope can be checked clearly.
Technical Specifications
| Parameter | Value |
|---|---|
| Stabilisation | EIS (electronic image stabilisation) |
| Camera | 5 MP, 1/2.53-inch sensor, F2.2, 2.20 mm lens |
| Field of view | HFOV 154.4° / VFOV 111.8° / DFOV 204° |
| Gimbal angles | pitch -90° to 0° |
| Video output | network port, RTSP H.265 stream at 1280 × 720 30 fps |
| Power | 7.2-80 V, 100 mA at 12 V |
| Protection rating | IP65 |
| Operating temperature | -10 °C to 60 °C |
| Dimensions | 66 × 52 × 31.9 mm |
| Weight | 60 g (72 g with the 12 g bracket) |
| Interfaces | network port for video out and control in |
Application Scenarios
- Powerline and tower inspection
- Security and perimeter surveillance
- Search and rescue support
- Mapping and photogrammetry
- Firefighting and maritime patrol
Related applications
UAV Powerline & Transmission Line Inspection
View application →
UAV Security & Perimeter Surveillance
View application →
UAV Surveying, Mapping & Photogrammetry
View application →
Industrial Plant & Pipeline Inspection with UGV and UAV
View application →Manual download
Related Products

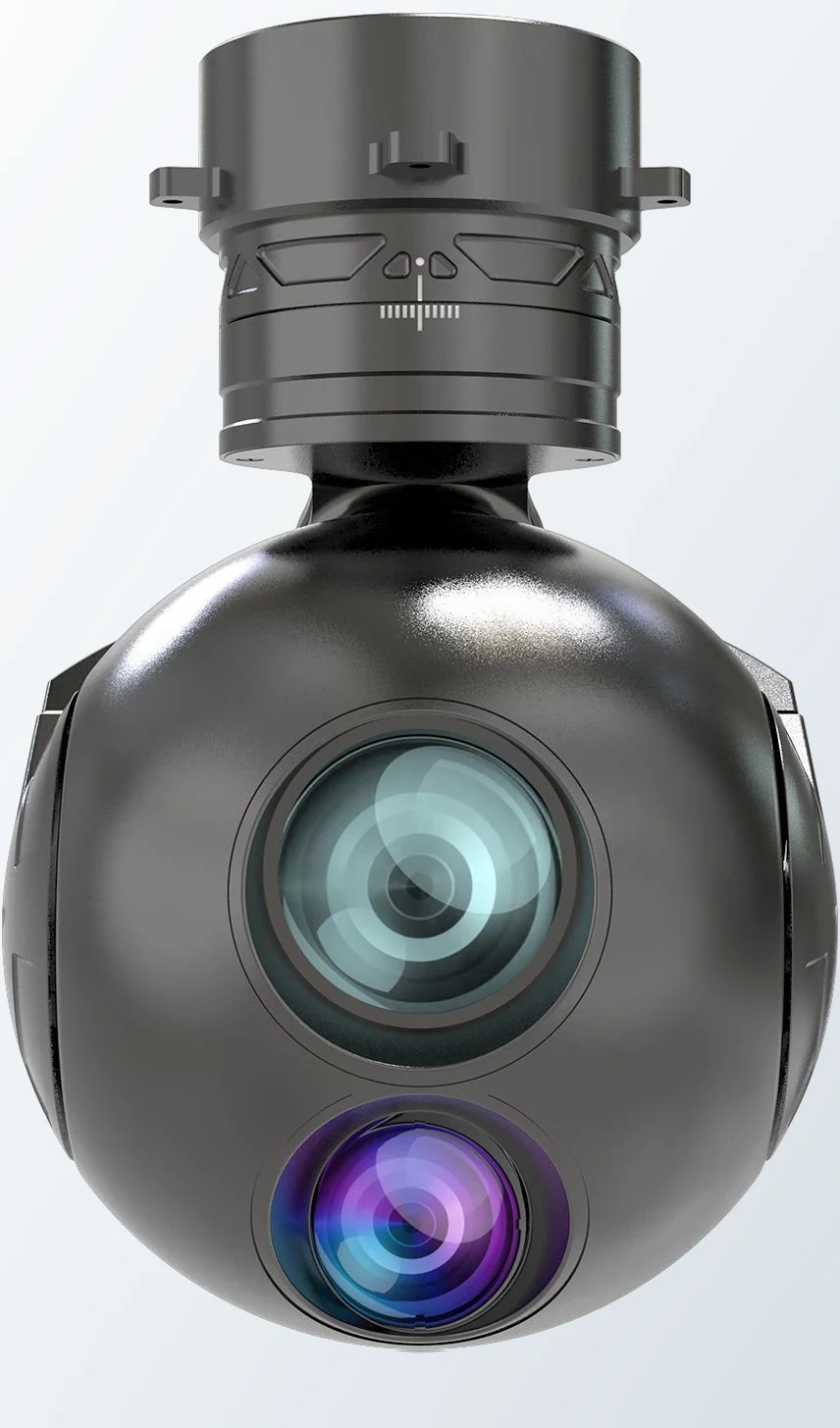

AT-100D Three-Axis Dual-Light Gimbal
The AT-100D is a three-axis gyro-stabilized dual-light gimbal with a compact and lightweight industrial design, equipped with a 10

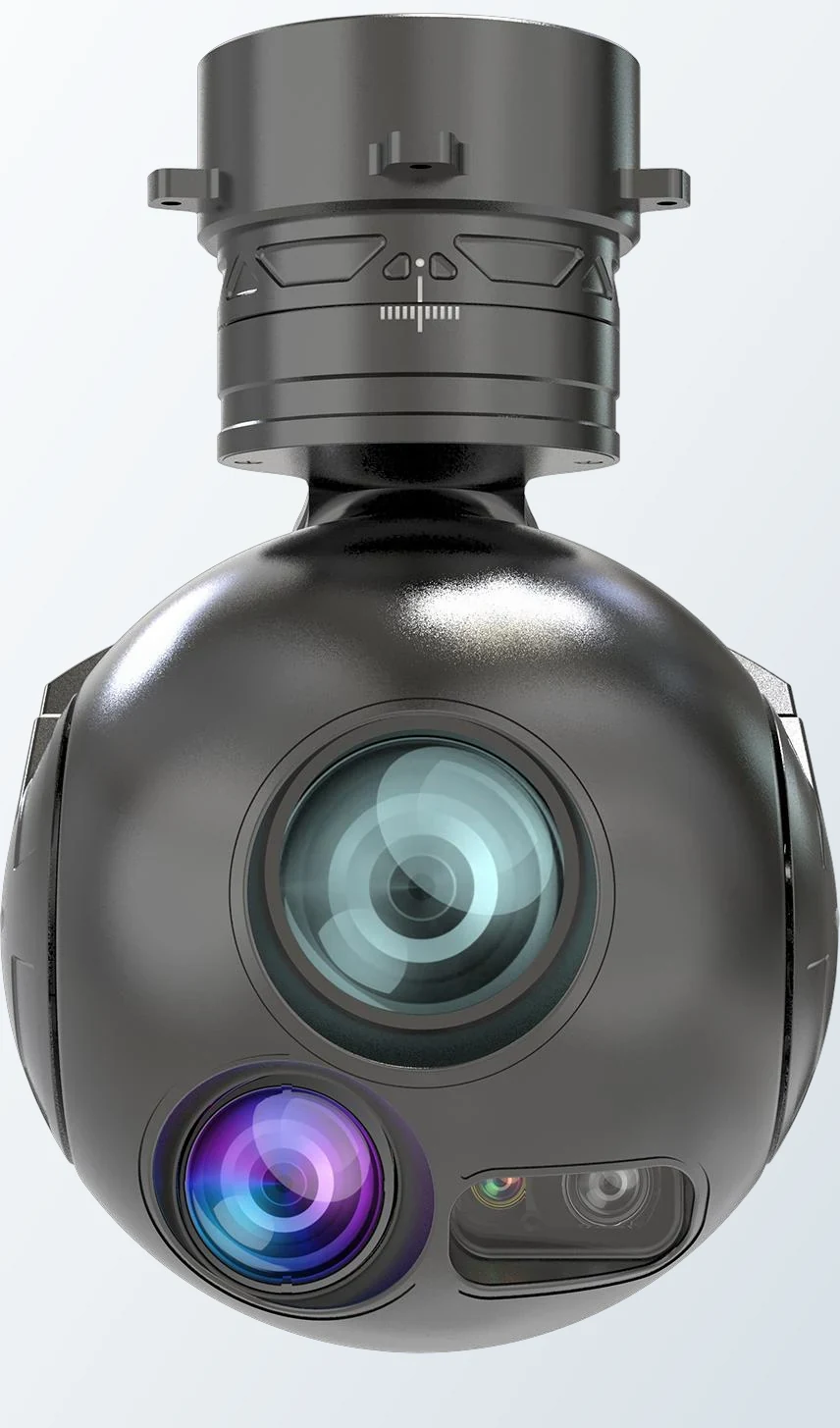

AT-100T Three-Axis Triple-Light Gimbal
The AT-100T is a three-axis gyro-stabilized triple-light gimbal with a compact and lightweight industrial design, equipped with a

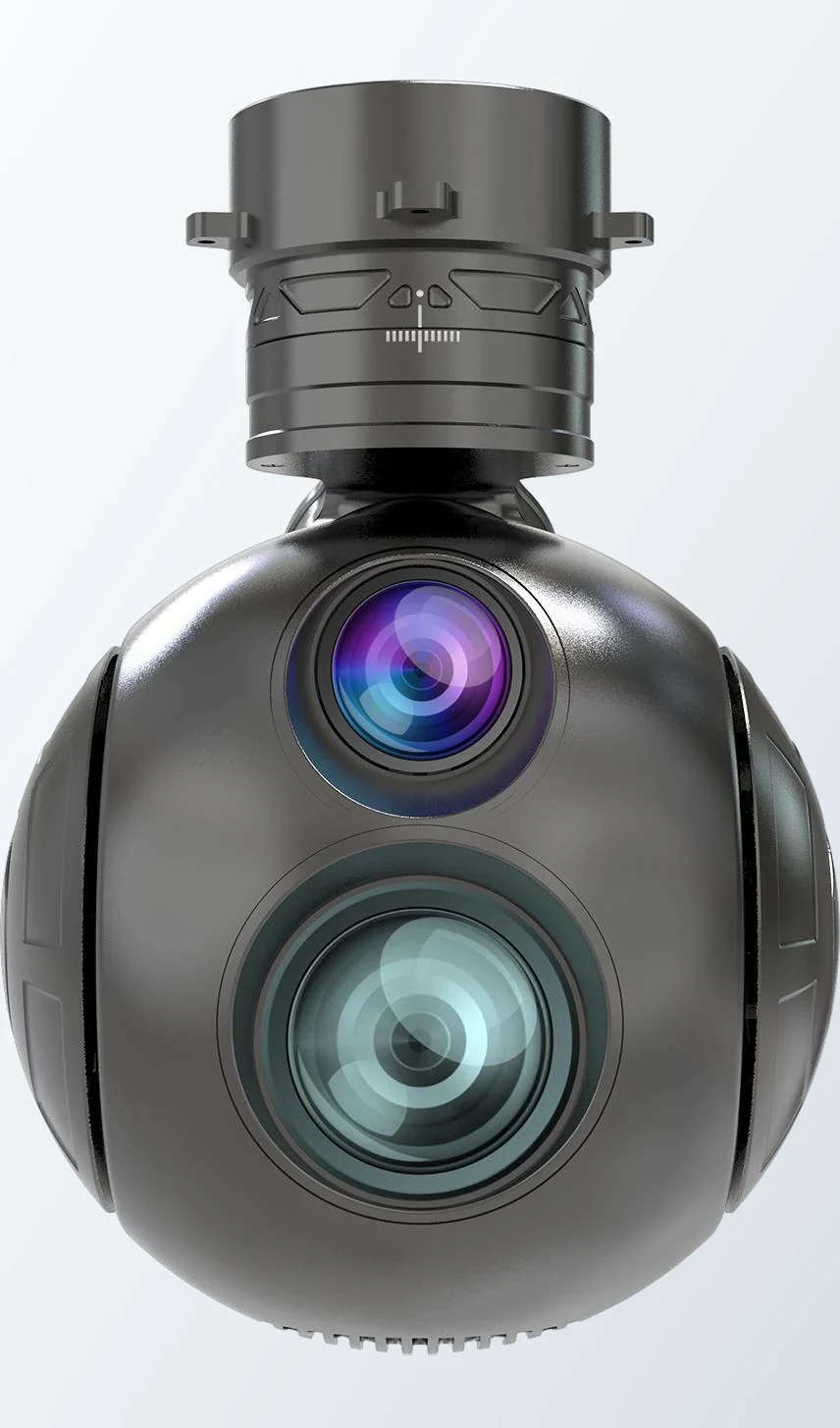

AT-115D Three-Axis Dual-Light Gimbal
The AT-115D is a three-axis gyro-stabilized dual-light gimbal with a compact and lightweight industrial design, equipped with a 30

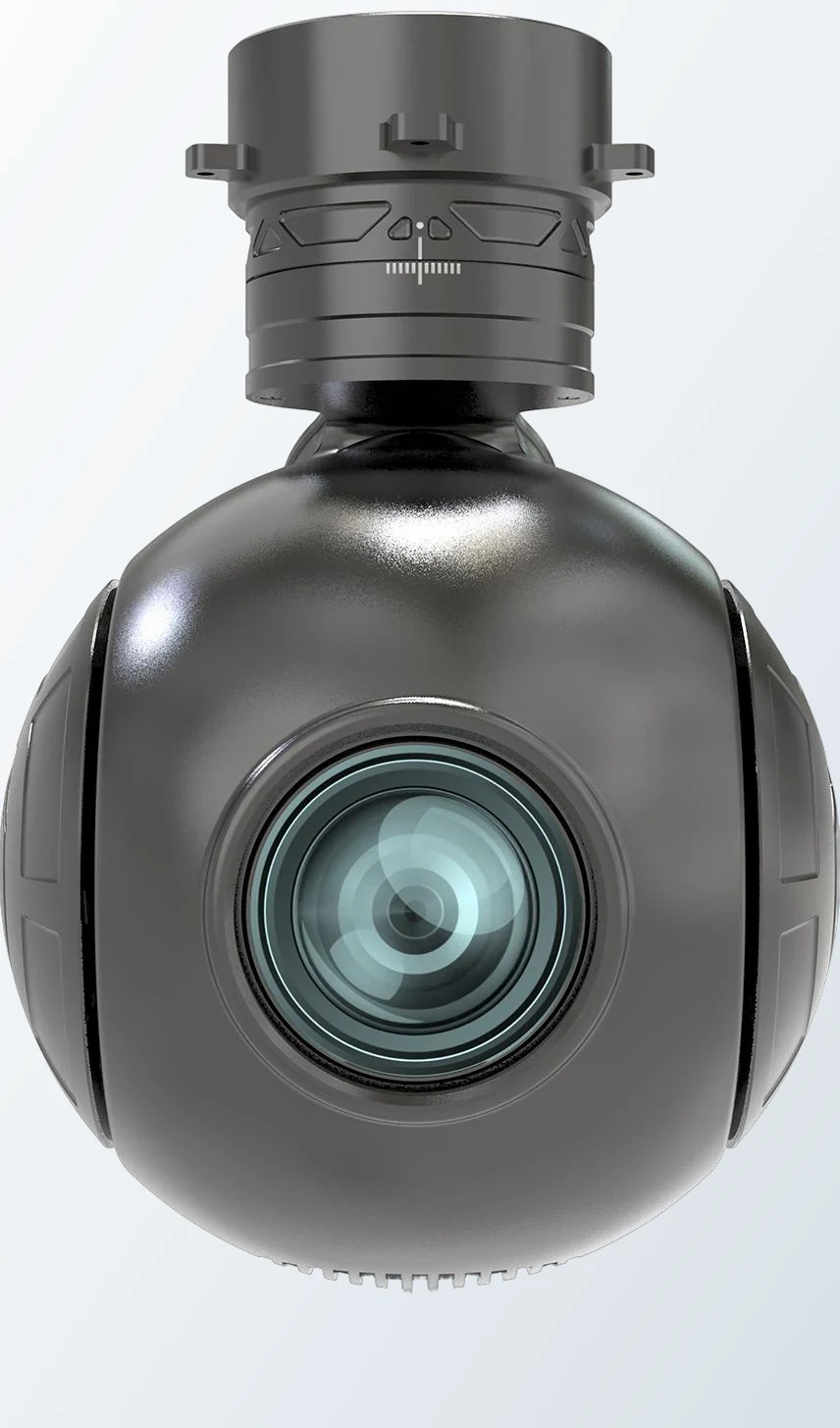

AT-115S Three-Axis Single-Light Gimbal
