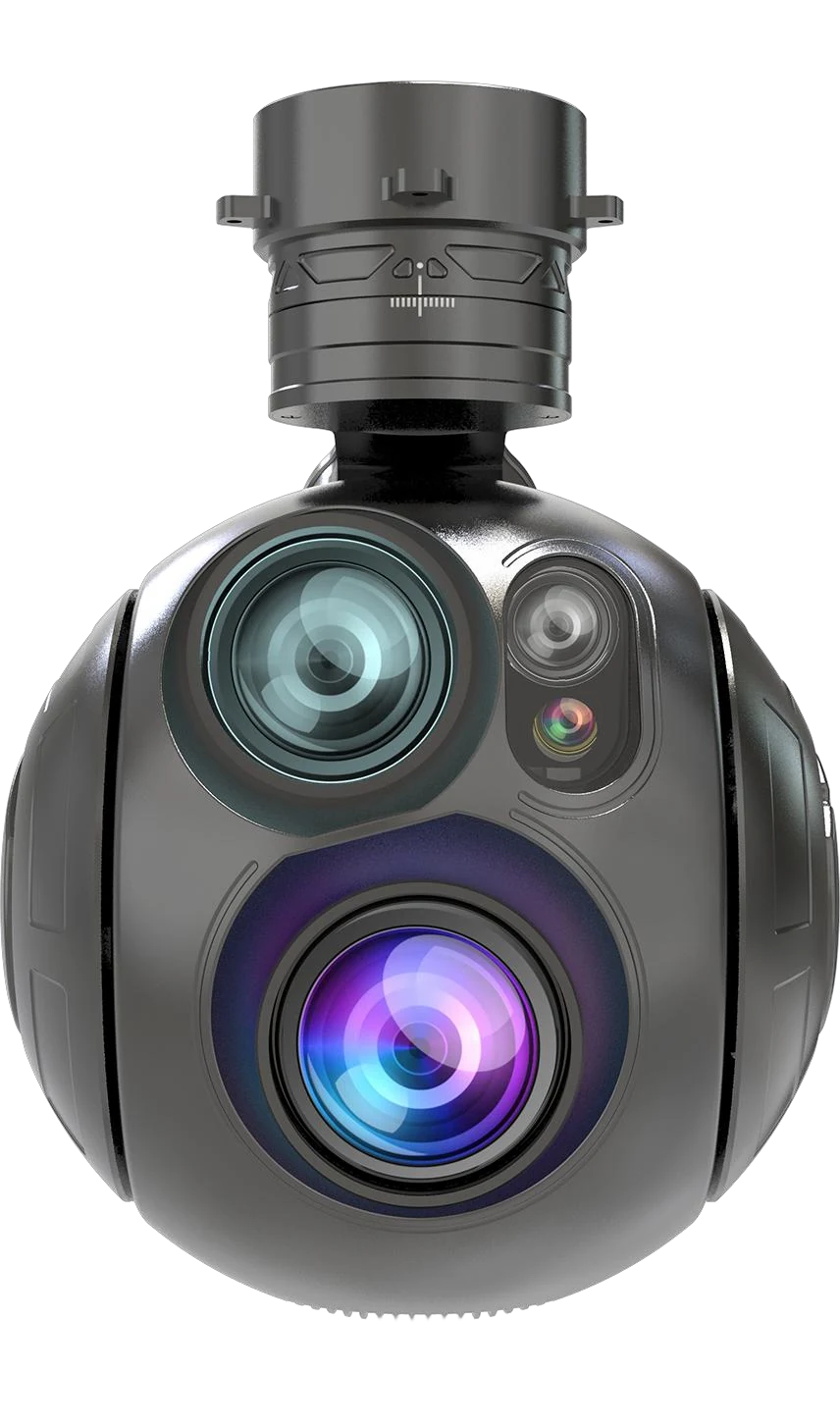

AT-135T Three-Axis Triple-Light Gimbal
- TV: 0.4-0.9μm / 1920×1080 / f=4.25-170mm (40×) / HFOV 62.13°-1.73°
- LWIR: 8-14μm / 640×512 / 12μm / 35mm F1.0 / FOV 12.4°×9.9°
- Laser: 1535nm range-finder module
Product Overview
The AT-135T Three-Axis Triple-Light Gimbal is part of the Gimbals & Cameras range, typically used for Powerline and tower inspection. Key specifications: TV: 0.4-0.9μm / 1920×1080 / f=4.25-170mm (40×) / HFOV 62.13°-1.73°; LWIR: 8-14μm / 640×512 / 12μm / 35mm F1.0 / FOV 12.4°×9.9°; Laser: 1535nm range-finder module. Aerosys Technology supplies it EXW from Hong Kong; MOQ 1 SET.
The AT-135T is a three-axis gyro-stabilized triple-light gimbal with integrated industrial design, equipped with a 40× continuous optical zoom TV camera, an uncooled LWIR thermal imager and a laser range-finder, plus built-in AI target recognition and multi-target tracking modules.
EO/IR gimbals and camera payloads — three-axis stabilisation, optical zoom blocks, LWIR imagers and laser rangefinders for inspection, surveillance and mapping missions.
Key Features
- TV:0.4-0.9μm / 1920×1080 / f=4.25-170mm (40×) / HFOV 62.13°-1.73°
- LWIR:8-14μm / 640×512 / 12μm / 35mm F1.0 / FOV 12.4°×9.9°
- Laser:1535nm range-finder module
- Stabilization:N×360° azimuth / -120°~+40° elevation / roll ±45°
- Dimensions:≤Φ135mm×195mm, weight ≤1.4 kg
- Power:11-28 VDC, 20W avg / 50W peak
Technical Specifications
| Parameter | Value |
|---|---|
| TV | 0.4-0.9μm / 1920×1080 / f=4.25-170mm (40×) / HFOV 62.13°-1.73° |
| LWIR | 8-14μm / 640×512 / 12μm / 35mm F1.0 / FOV 12.4°×9.9° |
| Laser | 1535nm range-finder module |
| Stabilization | N×360° azimuth / -120°~+40° elevation / roll ±45° |
| Dimensions | ≤Φ135mm×195mm, weight ≤1.4 kg |
| Power | 11-28 VDC, 20W avg / 50W peak |
Application Scenarios
- Powerline and tower inspection
- Security and perimeter surveillance
- Search and rescue support
- Mapping and photogrammetry
- Firefighting and maritime patrol
Related solutions: UAV Powerline & Transmission Line Inspection · UAV Security & Perimeter Surveillance · UAV Surveying, Mapping & Photogrammetry · Industrial Plant & Pipeline Inspection with UGV and UAV
Optional Accessories & Variants
UniPod MT11 Four-sensor Optical Pod
Camera gimbal and optical pod for aerial imaging, inspection and surveillance. Key specifications: Four-sensor payload: wide-angle
SIYI AI Tracking Module II
Camera gimbal and optical pod for aerial imaging, inspection and surveillance. Key specifications: 10T Computing Power, Any Object
ZR30 Optical Pod
Camera gimbal and optical pod for aerial imaging, inspection and surveillance. Key specifications: 180X Hybrid Zoom 30X Optical Zo
ZR10 Optical Pod
Camera gimbal and optical pod for aerial imaging, inspection and surveillance. Key specifications: 30X Hybrid Zoom 10X Optical Zoo
Related Products
A8 mini Gimbal Camera
Camera gimbal and optical pod for aerial imaging, inspection and surveillance. Key specifications: 4K Ultra HD Video & Photography
A2 mini FPV Gimbal
Camera gimbal and optical pod for aerial imaging, inspection and surveillance. Key specifications: Ultra-wide angle FPV gimbal cam
ZT6 Mini
Camera gimbal and optical pod for aerial imaging, inspection and surveillance. Key specifications: Dual-sensor payload, Compact mi
ZT30 Four-Sensor
Four-sensor optical pod combining a 30x optical zoom 4K camera, a 640 x 512 thermal imager, a 1,200 m laser rangefinder and a 2K w
Commonly Integrated With
HM30 Full HD Image Transmission System Standard Combo
Video and data link system for long-range UAV video, telemetry and remote control. The package includes HM30 Ground Unit, HM30 Air
HM30 Full HD Image Transmission System Fly More Combo
Video and data link system for long-range UAV video, telemetry and remote control. The package includes HM30 Ground Unit, HM30 Air
HK-T27 Anti-Interference Video & Data Link
30 km ground-to-air link from the AEROLINK Anti-Interference Video & Data Link series. Real-time spectrum sensing with dynamic fre
HK-T30 Anti-Interference Video & Data Link
50 km ground-to-air link from the AEROLINK Anti-Interference Video & Data Link series. Real-time spectrum sensing with dynamic fre
Frequently Asked Questions
Which gimbal gives the longest detection range?
The AT-135T pairs a 40x optical zoom block with a 640x512 LWIR imager and a 1535 nm laser rangefinder in a 1.4 kg, 135 mm package. Where weight is tight, the AT-64DA weighs 260 g and still detects a person at 1.6 km and a vehicle at 6.8 km.
Do your EO/IR gimbals support 360-degree continuous rotation?
Yes. The AT-100T, AT-115T, AT-125T and AT-135T all provide N x 360 degree continuous azimuth with -120 to +40 degree elevation, and the ZT30 has a 360 degree continuous yaw axis. Continuous rotation lets you orbit a target without a cable wrap or a blind sector.
Do your gimbals work with ArduPilot and PX4?
The ZT30 accepts S.Bus, Ethernet, UDP/TCP and UART and is compatible with ArduPilot and PX4. AEROLINK links expose network, RS232, TTL and SBUS ports that connect to the flight controller over a serial link. Tell us your autopilot and we confirm the wiring before dispatch.
What does Aerosys Technology supply?
We are a manufacturer of unmanned aircraft, unmanned ground vehicles and the components that support them, and have been building and shipping them since 2018. Our catalogue covers 108 product models across 8 categories: Ground Control Stations, Video and Data Links, Gimbals and Cameras, VTOL Fixed-Wing UAVs, Multi-rotor UAVs, Unmanned Ground Vehicles, Mowers and Lawn Equipment, and Drone Detection and Tracking — serving commercial operators, system integrators and enterprises worldwide from our base in Hong Kong.
What is the minimum order quantity?
It depends on the product line. Complete platforms such as VTOL aircraft and unmanned ground vehicles are quoted per set. Ground control stations, gimbal systems and video link systems are quoted on a 5-unit basis. Individual components and mowers are available from a single piece. The MOQ for each item is listed on its product page.
How do I get a quotation, and how long is it valid?
Send us the model numbers and quantities you need — WhatsApp is the fastest route, and email works too. Quotations are issued in USD and are valid for 14 days from the date of issue unless a different period is stated. An order is confirmed only when we issue a written order confirmation and receive the agreed payment; a quotation or a WhatsApp message alone is not an accepted order.
