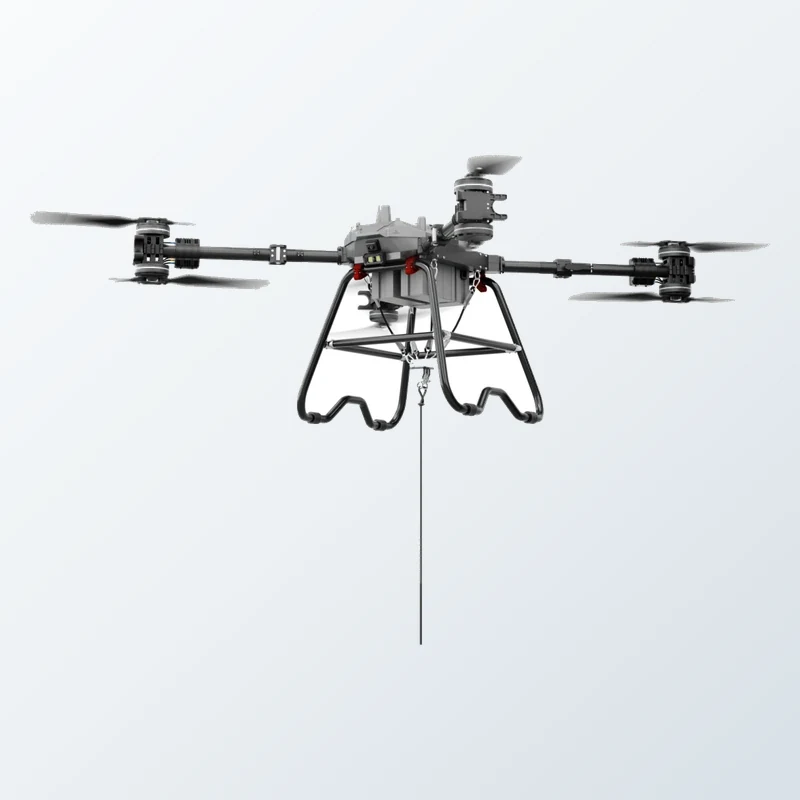

AT-MTR150 Cargo Transport Drone
- Battery qty: 1 set (4 pcs)
- Battery model: Custom battery
- Battery dimensions: 220*110*250mm
Product overview
AT-MTR150 is a 150 kg rated payload cargo drone in the Aerosys industrial UAV line. rated payload weight 150 kg; max payload weight 200 kg; max takeoff weight 333 kg; unfolded dimensions 2800*2800*1005 mm (propellers folded) 4400*4400*1005 mm (propellers unfolded); waterproof rating IP67. Published specification: Battery qty: 1 set (4 pcs); Battery model: Custom battery; Battery dimensions: 220*110*250mm; Battery weight: 11 kg *4; Charger qty: 2; Charging input: 110V-240V; Charging output: 60A (single-channel charging). Delivery is quoted at 25 days.
Choosing your configuration
For a survey or inspection project, compare payload mass and dimensions, flight time at the intended load, launch area and operating conditions. Specify the sensor and required area coverage when asking for a configuration.
Pricing and quotation
Where a price is displayed, it applies to the listed configuration and quantity tier. Ask for a quotation to confirm included items, optional accessories, shipping charges and the current order total. Availability, delivery and support terms will be confirmed for your order.
Product questions
What should I check before selecting this model?
For a survey or inspection project, compare payload mass and dimensions, flight time at the intended load, launch area and operating conditions. Specify the sensor and required area coverage when asking for a configuration.
What information do you need for a quotation?
Send the model or SKU, quantity, destination and intended civil or commercial use through the inquiry form or the existing email and WhatsApp channels. Include the equipment you plan to connect so we can discuss the configuration.
Does the displayed price cover every configuration?
Where a price is displayed, it applies to the listed configuration and quantity tier. Ask for a quotation to confirm included items, optional accessories, shipping charges and the current order total. Availability, delivery and support terms will be confirmed for your order.
- Battery qty:1 set (4 pcs)
- Battery model:Custom battery
- Battery dimensions:220*110*250mm
- Battery weight:11 kg *4
- Charging temperature:-40°C~65℃
- Charger qty:2
Configuration and application fit
Published selection points
- Published specification: Battery qty: 1 set (4 pcs)
- Published specification: Battery model: Custom battery
- Published specification: Battery dimensions: 220*110*250mm
- Published specification: Battery weight: 11 kg *4
- Published specification: Charging temperature: -40°C~65℃
- Published specification: Charger qty: 2
For a configuration quote, send the model, quantity, destination and intended civil or commercial use. Add the required interface, payload, cargo or sensor details where relevant so the supply scope can be checked clearly.
Technical Specifications
| Parameter | Value |
|---|---|
| Battery qty | 1 set (4 pcs) |
| Battery model | Custom battery |
| Battery dimensions | 220*110*250mm |
| Battery weight | 11 kg *4 |
| Charging temperature | -40°C~65℃ |
| Charger qty | 2 |
| Charging input | 110V-240V |
| Charging output | 60A (single-channel charging) |
| Rated power | 3000W |
| Max takeoff weight | 333 kg |
| Max flight speed | 20 m/s |
| Max payload weight | 200 kg |
| Rated payload weight | 150 kg |
| Max thrust (per axis) | 135kg |
| ESC max continuous working current | 180 A |
| Folded dimensions | 1450*1150*1005mm |
| Unfolded dimensions | 2800*2800*1005 mm (propellers folded) 4400*4400*1005 mm (propellers unfolded) |
| Weight (without battery) | 88kg |
| Weight (with battery) | 132kg |
| Waterproof rating | IP67 |
| Remote controller | H12 Pro, 5.5-inch remote controller with screen |
| Max signal range | 10 km |
| Operating frequency | 2,400~2,483 Mhz |
| Remote controller dimensions | 190*152*94 mm |
| Charging port | TYPE-C |
| Operating time | 6~20 H |
| Compatible devices | AT-MTR120 |
| Camera type | FPV wide-angle image-stabilized camera |
| Video resolution | 1280*720 px |
| Night navigation | High-brightness night flight lights |
Application Scenarios
- Supply transport to remote sites
- Emergency relief airdrop
- Mountain and off-road operations
- Line and anchor rope deployment
- Logistics between base and working front
