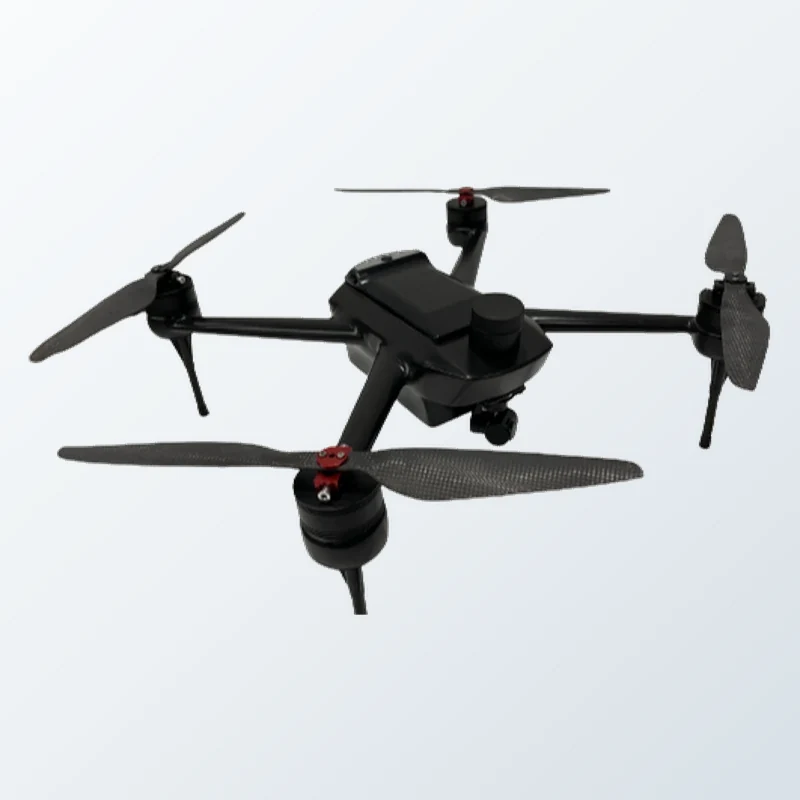

AT-MIN65 Long-Endurance Inspection Drone
- Unfolded dimensions: 480 mm*480 mm*180 mm (18.90” x 18.90” x 7.09”)
- Materials: Carbon fiber + 7075 aviation aluminum + plastic
- Net weight: 2 kg
Product overview
AT-MIN65 is a 65 min flight time long-endurance multirotor in the Aerosys industrial UAV line. payload module Quick release and replacement; max range 5 km; wind resistance level Level 6. Published specification: Unfolded dimensions: 480 mm*480 mm*180 mm (18.90” x 18.90” x 7.09”); Materials: Carbon fiber + 7075 aviation aluminum + plastic; Net weight: 2 kg; Max endurance: 60min; Max takeoff weight: 6 kg; Max payload: 2.5 kg; Max flight speed: 20 m/s. Delivery is quoted at 25 days.
Choosing your configuration
For a survey or inspection project, compare payload mass and dimensions, flight time at the intended load, launch area and operating conditions. Specify the sensor and required area coverage when asking for a configuration.
Pricing and quotation
Where a price is displayed, it applies to the listed configuration and quantity tier. Ask for a quotation to confirm included items, optional accessories, shipping charges and the current order total. Availability, delivery and support terms will be confirmed for your order.
Product questions
What should I check before selecting this model?
For a survey or inspection project, compare payload mass and dimensions, flight time at the intended load, launch area and operating conditions. Specify the sensor and required area coverage when asking for a configuration.
What information do you need for a quotation?
Send the model or SKU, quantity, destination and intended civil or commercial use through the inquiry form or the existing email and WhatsApp channels. Include the equipment you plan to connect so we can discuss the configuration.
Does the displayed price cover every configuration?
Where a price is displayed, it applies to the listed configuration and quantity tier. Ask for a quotation to confirm included items, optional accessories, shipping charges and the current order total. Availability, delivery and support terms will be confirmed for your order.
- Unfolded dimensions:480 mm*480 mm*180 mm (18.90” x 18.90” x 7.09”)
- Materials:Carbon fiber + 7075 aviation aluminum + plastic
- Net weight:2 kg
- Wind resistance level:Level 6
- Payload module:Quick release and replacement
- Max endurance:60min
Configuration and application fit
Published selection points
- Published specification: Unfolded dimensions: 480 mm*480 mm*180 mm (18.90” x 18.90” x 7.09”)
- Published specification: Materials: Carbon fiber + 7075 aviation aluminum + plastic
- Published specification: Net weight: 2 kg
- Published specification: Wind resistance level: Level 6
- Published specification: Payload module: Quick release and replacement
- Published specification: Max endurance: 60min
For a configuration quote, send the model, quantity, destination and intended civil or commercial use. Add the required interface, payload, cargo or sensor details where relevant so the supply scope can be checked clearly.
Technical Specifications
| Parameter | Value |
|---|---|
| Unfolded dimensions | 480 mm*480 mm*180 mm (18.90” x 18.90” x 7.09”) |
| Materials | Carbon fiber + 7075 aviation aluminum + plastic |
| Net weight | 2 kg |
| Wind resistance level | Level 6 |
| Payload module | Quick release and replacement |
| Max endurance | 60min |
| Max takeoff weight | 6 kg |
| Max payload | 2.5 kg |
| Max range | 5 km |
| Max flight speed | 20 m/s |
| Max climb / descent rate | 5 m/s |
| GPS operating mode | RTK / GPS positioning |
| Positioning accuracy | 5 cm |
| Navigation control | Dual-frequency GPS navigation |
| Mission mode | Fully automatic |
| Safety mechanism | Supports return on attitude abnormality, Automatic hover when GPS signal is lost, and automatic return to home on link loss. |
| Battery qty | 1 |
| Battery model | 6S 15000mAh |
| Battery weight | kg |
| Charging temperature | -40℃~65℃ |
| Charger qty | 1 |
| Charging input | 110V-220V |
| Rated power | 200W |
Application Scenarios
- Close-range structural inspection
- Aerial delivery in confined areas
- Surveillance of small sites
- Mapping of limited areas
- Sensor testing and integration work
