AT-100D Three-Axis Dual-Light Gimbal User Manual & Quick Start Guide
The AT-100D Three-Axis Dual-Light Gimbal is a Gimbals & Cameras by Aerosys Technology, supplied EXW from Hong Kong by Aerosys Technology. This page gathers the quick-start essentials for the AT-100D Three-Axis Dual-Light Gimbal: what is in the box, the key specifications, and how it pairs with the rest of the catalogue. For pricing and lead time, request a quotation — quotations are valid for 14 days and OEM configurations are available.
What’s in the box
The exact package contents are confirmed on the order confirmation for your configuration — contact us for the current packing list of the AT-100D Three-Axis Dual-Light Gimbal.
Compatibility & pairing
- Ground Control Stations — e.g. A2 mini FPV Gimbal + MK15 Agriculture Standard Combo Sales Bundle, G12
- Video & Data Links — e.g. AT-D35 High-Bandwidth MESH Link, AT-GC Portable Ground Base Station
- VTOL Fixed-Wing UAVs — e.g. AT-G02 Electric VTOL Fixed-Wing UAV, AT-G07 Electric VTOL Fixed-Wing UAV
- Other Gimbals & Cameras: AT-100T Three-Axis Triple-Light Gimbal, AT-115D Three-Axis Dual-Light Gimbal, AT-115S Three-Axis Single-Light Gimbal — all 22 models
Key specifications
| Parameter | Value |
|---|---|
| TV | 0.4-0.9μm / 1920×1080 / f=4.7-47mm (10×) / HFOV 58.3°-7.1° |
| LWIR | 8-14μm / 640×512 / 12μm / 19mm F1.0 / FOV 23°×18.4° |
| Detection | TV person 2.7 km / vehicle 11.9 km; LWIR person 0.9 km / vehicle 4.0 km |
| Stabilization | N×360° azimuth / -120°~+40° elevation |
| Dimensions | ≤Φ100mm×160mm, weight ≤800g |
| Power | 11-28 VDC, 15W avg / 30W peak |
At a glance
- Category: Gimbals & Cameras
- Price: $4,588 (EXW, 5 units)
- MOQ: 1 SET
- Quotation validity: 14 days from date of issue
Frequently asked questions
Which gimbal gives the longest detection range?
The AT-135D has the longest detection range in our gimbal line: person 11.1 km / vehicle 20 km. It pairs a 40x optical zoom with a 640×512 LWIR imager on a three-axis stabilised head. Next best is the AT-115S at person 11 km / vehicle 20 km.
Do your EO/IR gimbals support 360-degree continuous rotation?
Yes. The AT-100T, AT-115T, AT-125T and AT-135T all provide N x 360 degree continuous azimuth with -120 to +40 degree elevation, and the ZT30 has a 360 degree continuous yaw axis. Continuous rotation lets you orbit a target without a cable wrap or a blind sector.
Do your gimbals work with ArduPilot and PX4?
The ZT30 accepts S.Bus, Ethernet, UDP/TCP and UART and is compatible with ArduPilot and PX4. AEROLINK links expose network, RS232, TTL and SBUS ports that connect to the flight controller over a serial link. Tell us your autopilot and we confirm the wiring before dispatch.
What does Aerosys Technology supply?
Our catalogue covers 279 product models across 13 categories. Behind that catalogue sits production in the Pearl River Delta and a commercial centre in Hong Kong that handles the contracting, freight, banking and export documentation cross-border trade depends on.
What is the minimum order quantity?
It depends on the product line. Ground control stations are quoted on a 5-unit basis, while video and data links and camera payloads are quoted from a single unit. Complete platforms such as VTOL aircraft, multi-rotors and unmanned ground vehicles are quoted per set. Where a product page states a different MOQ, that page governs.
Related products
AT-100T Three-Axis Triple-Light Gimbal
The AT-100T is a three-axis gyro-stabilized triple-light gimbal with a compact and lightweight industrial design, equipped with a
AT-115D Three-Axis Dual-Light Gimbal
The AT-115D is a three-axis gyro-stabilized dual-light gimbal with a compact and lightweight industrial design, equipped with a 30
AT-115S Three-Axis Single-Light Gimbal
The AT-115S is a three-axis gyro-stabilized single-light gimbal with a compact and lightweight industrial design, equipped with a

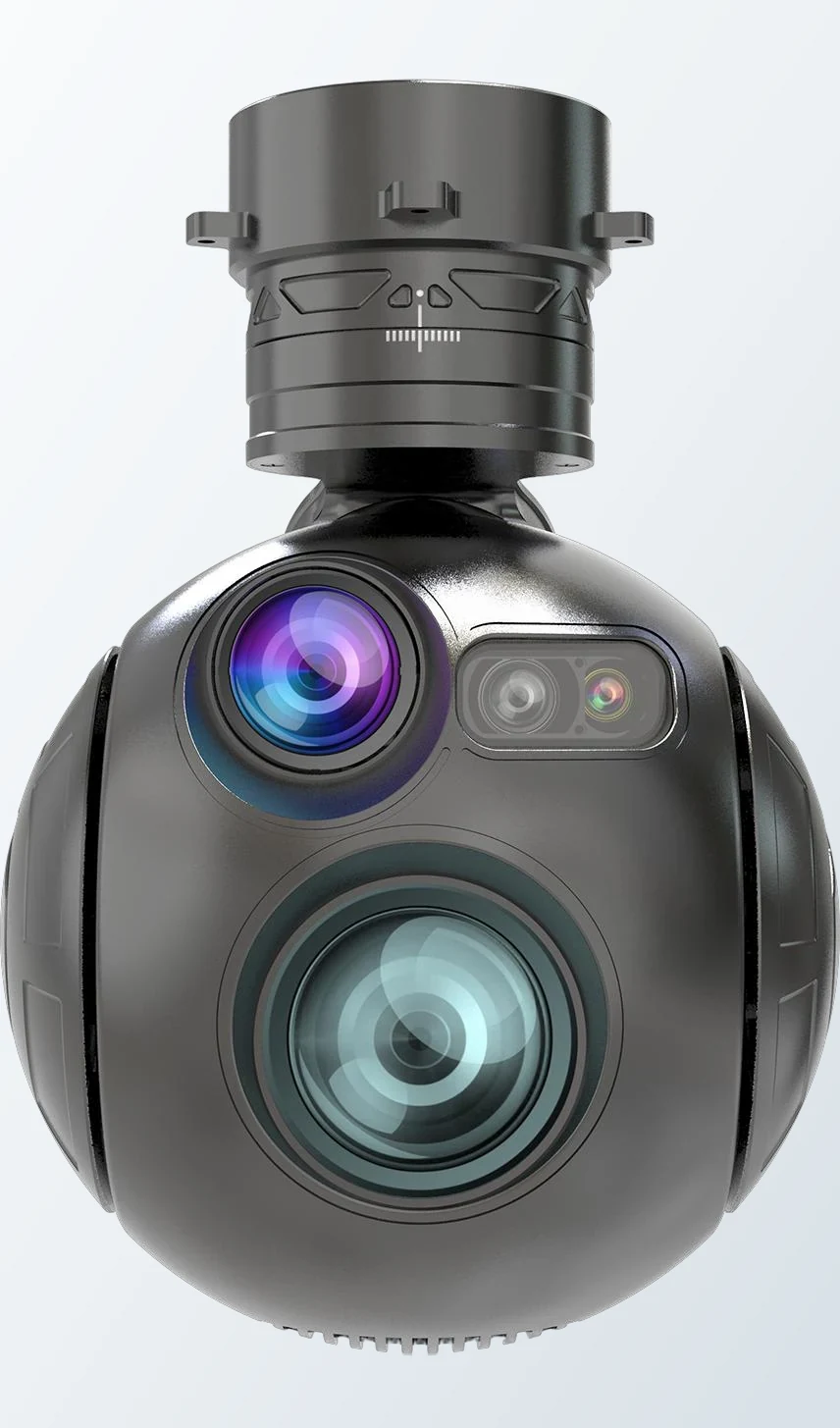

AT-115T Three-Axis Triple-Light Gimbal
