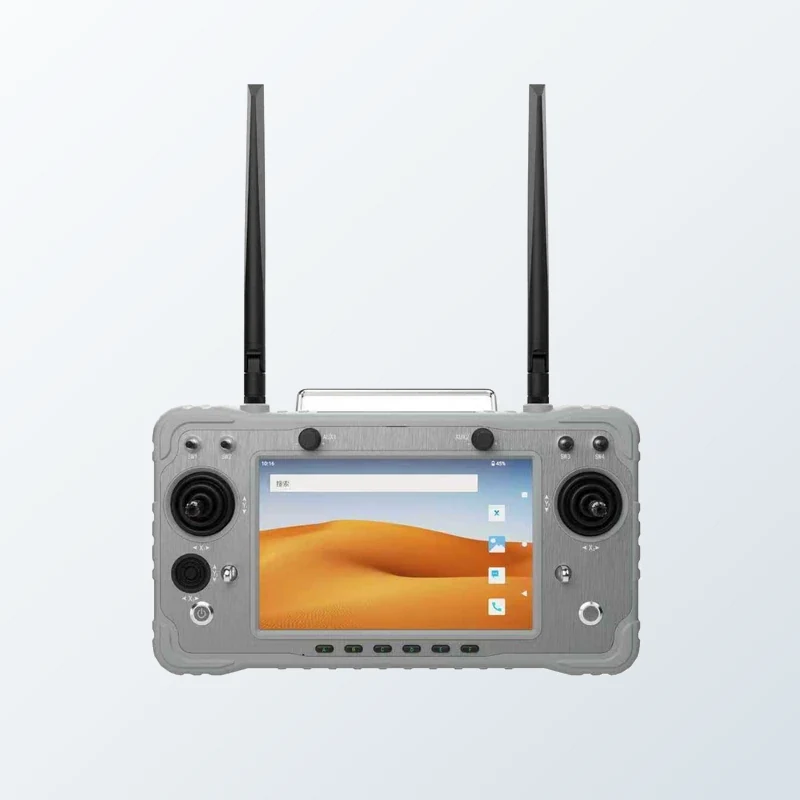

Skydroid G16
- Display: 7-inch industrial touchscreen, sunlight-readable
- Screen resolution: 1920 × 1200
- Processor: Qualcomm 6 nm, Android 13
Product overview
16-channel dual-band ground station with a 7-inch sunlight-readable 1920 × 1200 touchscreen, 9 km control range and a 20,000 mAh battery rated at 9-10 hours. Runs Android 13 on a Qualcomm 6 nm platform and ships with the GR01 receiver.
Choosing your configuration
Before choosing a controller, identify the air unit, vehicle interface, video input and ground-station software. Tell us which equipment you already have; the exact controller and air-unit combination determines compatibility.
Aerosys Technology is an authorized Skydroid dealer. Please confirm the exact model, included items and support terms in your quotation.
Pricing and quotation
Where a price is displayed, it applies to the listed configuration and quantity tier. Ask for a quotation to confirm included items, optional accessories, shipping charges and the current order total. Availability, delivery and support terms will be confirmed for your order.
Product questions
What should I check before selecting this model?
Before choosing a controller, identify the air unit, vehicle interface, video input and ground-station software. Tell us which equipment you already have; the exact controller and air-unit combination determines compatibility.
What information do you need for a quotation?
Send the model or SKU, quantity, destination and intended civil or commercial use through the inquiry form or the existing email and WhatsApp channels. Include the equipment you plan to connect so we can discuss the configuration.
Does the displayed price cover every configuration?
Where a price is displayed, it applies to the listed configuration and quantity tier. Ask for a quotation to confirm included items, optional accessories, shipping charges and the current order total. Availability, delivery and support terms will be confirmed for your order.
- Display:7-inch industrial touchscreen, sunlight-readable
- Screen resolution:1920 × 1200
- Processor:Qualcomm 6 nm, Android 13
- Memory:4 GB RAM + 64 GB storage
- Channels:16
- Frequency:2.4 GHz / 5.8 GHz, automatic frequency hopping
Configuration and application fit
Published selection points
- Published specification: Display: 7-inch industrial touchscreen, sunlight-readable
- Published specification: Screen resolution: 1920 × 1200
- Published specification: Processor: Qualcomm 6 nm, Android 13
- Published specification: Memory: 4 GB RAM + 64 GB storage
- Published specification: Channels: 16
- Published specification: Frequency: 2.4 GHz / 5.8 GHz, automatic frequency hopping
For a configuration quote, send the model, quantity, destination and intended civil or commercial use. Add the required interface, payload, cargo or sensor details where relevant so the supply scope can be checked clearly.
Technical Specifications
| Parameter | Value |
|---|---|
| Display | 7-inch industrial touchscreen, sunlight-readable |
| Screen resolution | 1920 × 1200 |
| Processor | Qualcomm 6 nm, Android 13 |
| Memory | 4 GB RAM + 64 GB storage |
| Channels | 16 |
| Frequency | 2.4 GHz / 5.8 GHz, automatic frequency hopping |
| RF power | 23 dBm @ CE/FCC |
| Control range | up to 9 km |
| Battery | 20,000 mAh, 9-10 hours endurance |
| Interfaces | USB-A, SIM slot, USB-C, PPM; USB-C charging |
| Dimensions | 272 × 183 × 94 mm |
| Weight | 1.05 kg |
| Receiver GR01 | 2.4/5.8 GHz, 7.2-72 V (XT30), 1 data port, 1 LAN, 1 SBUS, 3 PWM, 37 g |
Application Scenarios
- UAV flight and payload control
- Line patrol and area survey missions
- Security and perimeter operations
- Emergency response coordination
- Maritime and mountain operations
Related applications
UAV Powerline & Transmission Line Inspection
View application →
UAV Security & Perimeter Surveillance
View application →
UAV Emergency Response & Search-and-Rescue Support
View application →
UAV Surveying, Mapping & Photogrammetry
View application →Manual download
Related Products

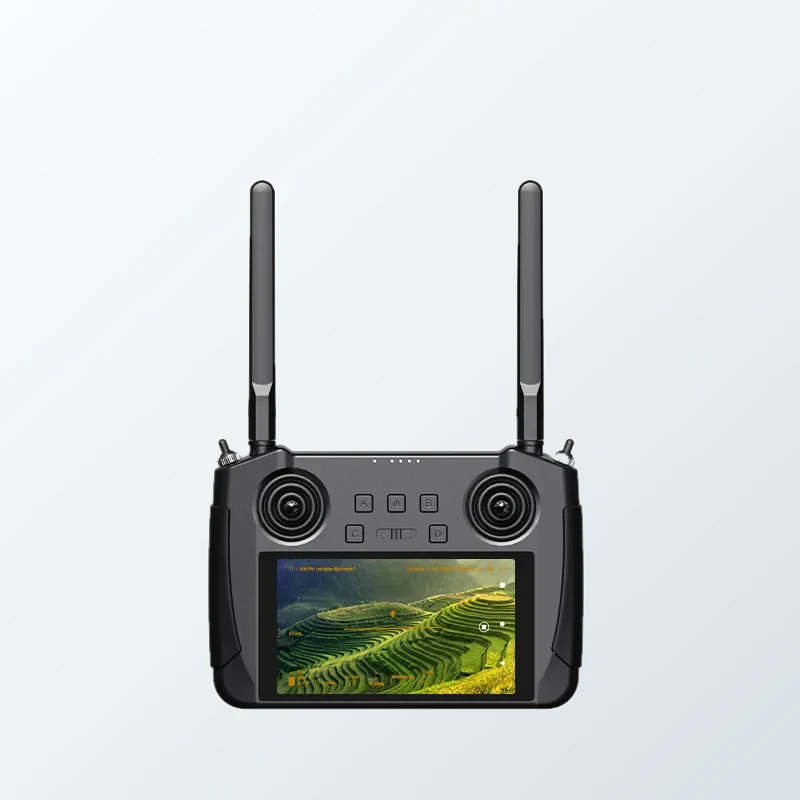

A2 mini FPV Gimbal + MK15 Agriculture Standard Combo Sales Bundle
Ground control station for professional UAV, UGV and USV operations. The package includes A2 mini FPV Gimbal, MK15 Agriculture Rem

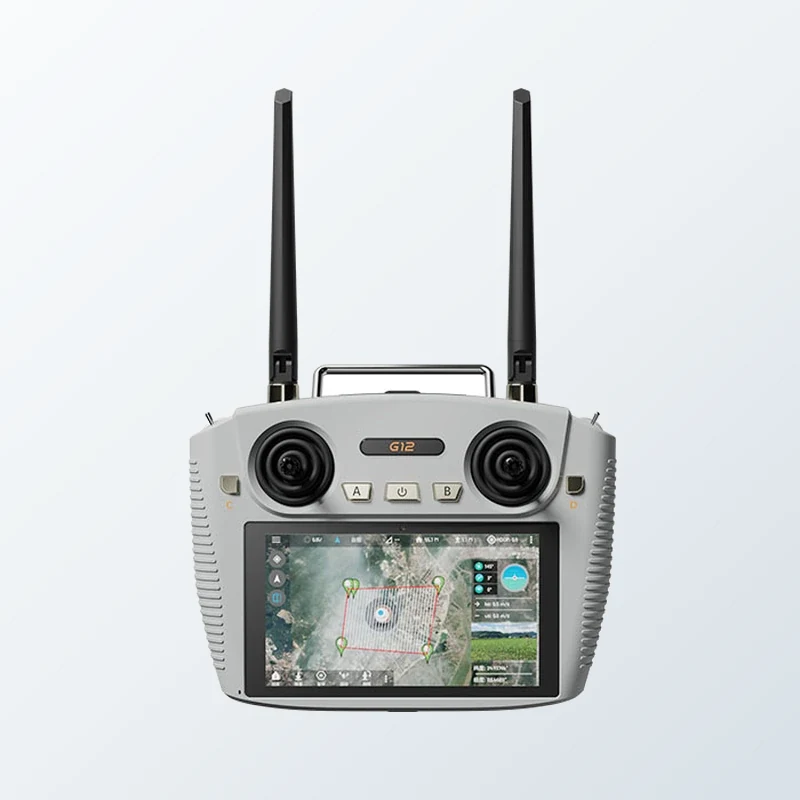

G12
20 km remote controller with a 5.5-inch HD screen and a 10,000 mAh battery. Runs Android 13 on a Qualcomm platform with hardware H

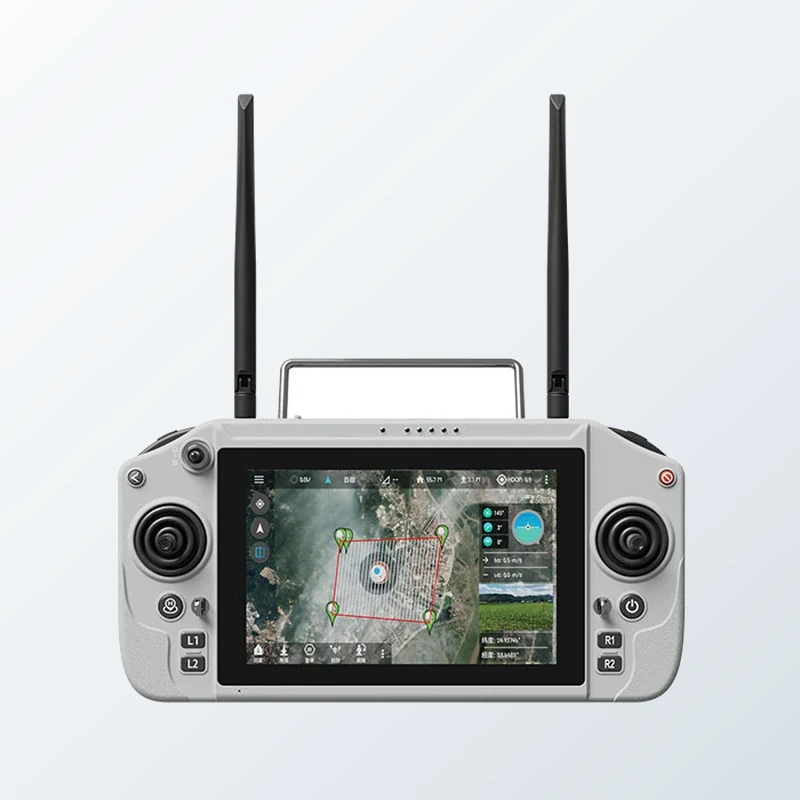

G20
30 km remote controller with HD image transmission and 6-8 hours of endurance. Runs Android 13 on a Qualcomm 6 nm platform, switch

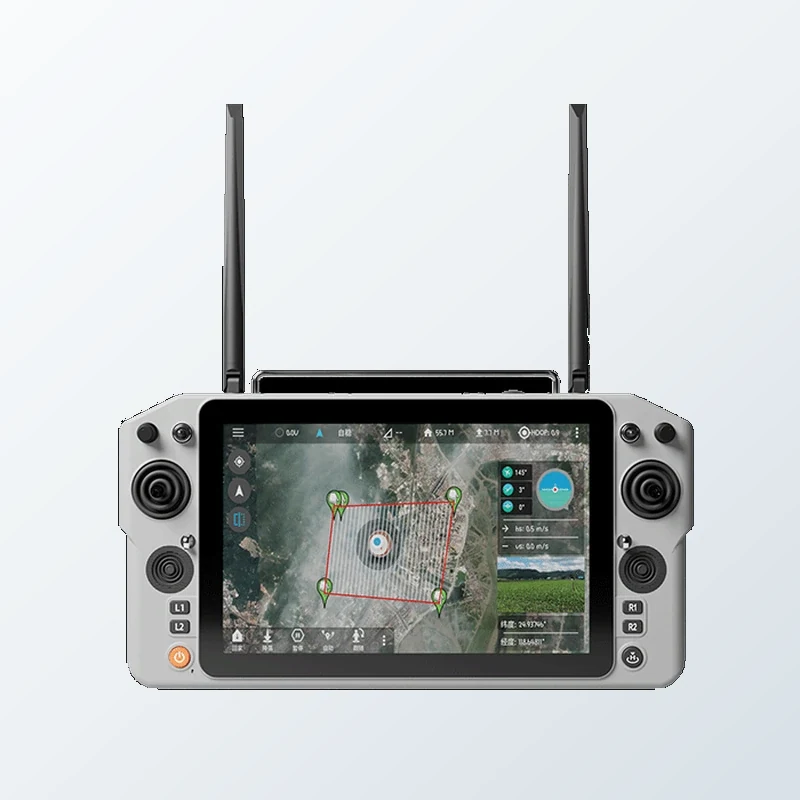

G30
10.1-inch sunlight-readable touchscreen controller with 30 km remote control and HD image transmission. Runs Android 13 on a Qualc
Commonly Integrated With

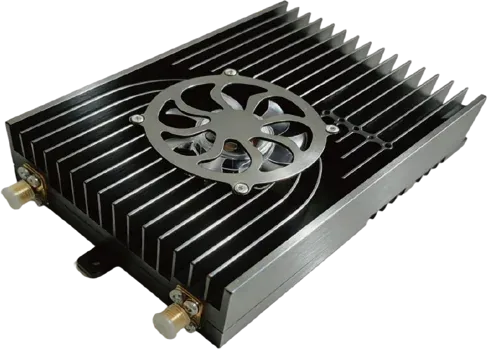

AT-D35 High-Bandwidth MESH Link
100 km ground-to-air link from the AEROLINK High-Bandwidth MESH Link series. High-bitrate video transmission with dynamic frequenc

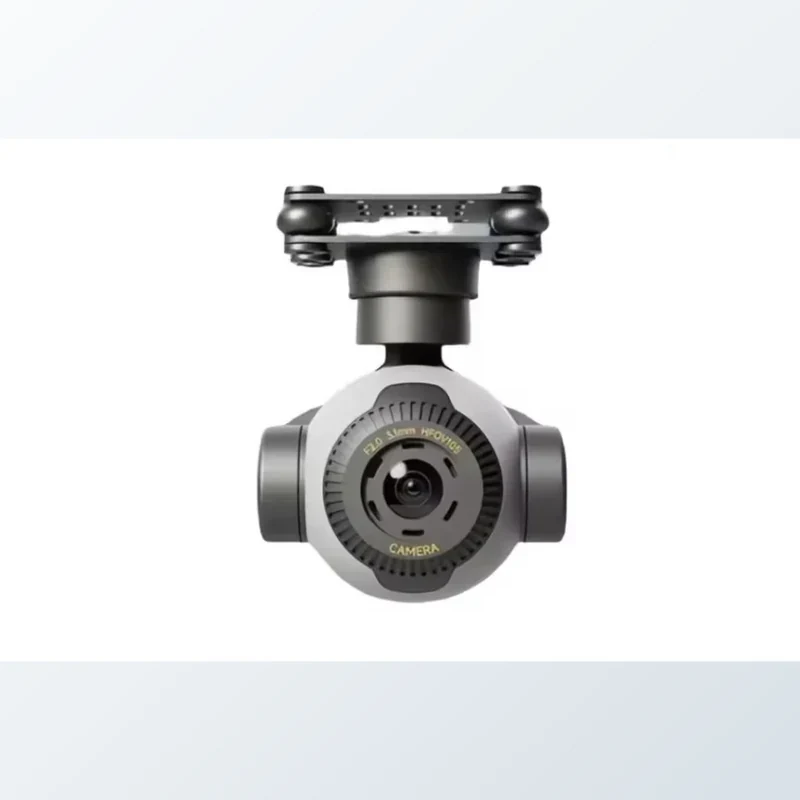

C11
106 g three-axis gimbal carrying an 8 MP 1/2.8-inch camera with a 3.1 mm F2.0 lens, 105° horizontal field of view and 30× digital

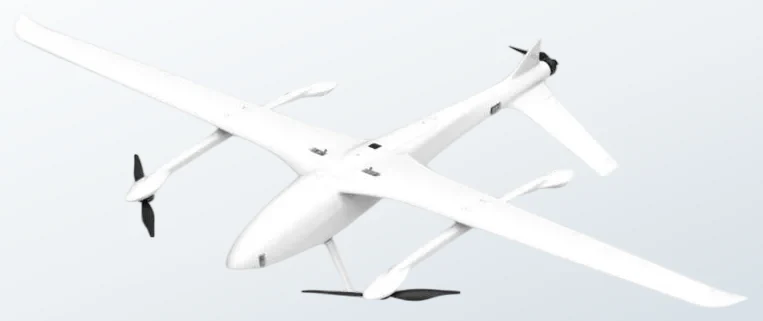

AT-G02 Electric VTOL Fixed-Wing UAV
Compact electric VTOL fixed-wing UAV built for cost-effective large-scale deployment. Weighing just 14 kg maximum take-off with a

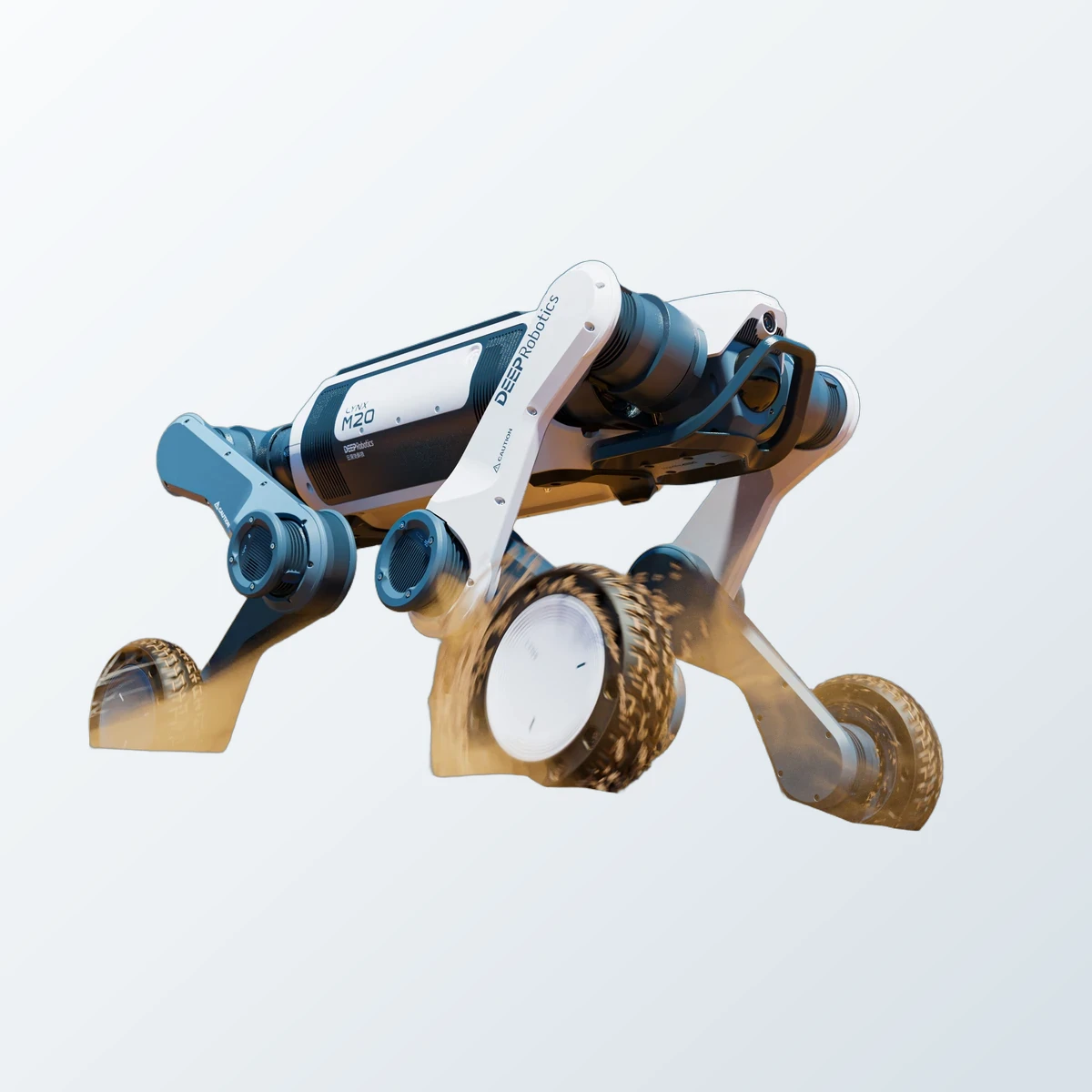

S1 All-Terrain Wheeled Quadruped Robot
