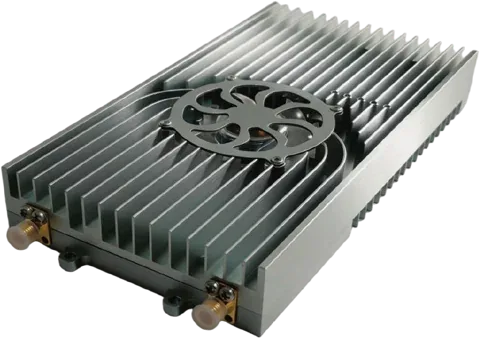

AT-S35 Long-Range Data Link
- Series: Long-Range Data Link
- Ground-to-Air Range: 200 km
- Operating Frequency Band: 1.4 GHz (supports custom frequency bands)
Product overview
200 km ground-to-air link from the AEROLINK Long-Range Data Link series. Long-range data transmission with real-time spectrum sensing. Operating band 1.4 GHz with custom frequency bands supported; Up to 128 nodes in a network configuration. Suited to UAV, USV, UGV, robot-dog, maritime and mountain-relay networks, and to inspection, firefighting and security communications.
Choosing your configuration
For a video or data link, check the air/ground units, interfaces, frequency and antenna setup. Range depends on the stated test conditions, line of sight and interference; describe your environment and required link distance.
Pricing and quotation
Where a price is displayed, it applies to the listed configuration and quantity tier. Ask for a quotation to confirm included items, optional accessories, shipping charges and the current order total. Availability, delivery and support terms will be confirmed for your order.
Product questions
What should I check before selecting this model?
For a video or data link, check the air/ground units, interfaces, frequency and antenna setup. Range depends on the stated test conditions, line of sight and interference; describe your environment and required link distance.
What information do you need for a quotation?
Send the model or SKU, quantity, destination and intended civil or commercial use through the inquiry form or the existing email and WhatsApp channels. Include the equipment you plan to connect so we can discuss the configuration.
Does the displayed price cover every configuration?
Where a price is displayed, it applies to the listed configuration and quantity tier. Ask for a quotation to confirm included items, optional accessories, shipping charges and the current order total. Availability, delivery and support terms will be confirmed for your order.
- Series:Long-Range Data Link
- Ground-to-Air Range:200 km
- Operating Frequency Band:1.4 GHz (supports custom frequency bands)
- Anti-Interference:Long-range data transmission with real-time spectrum sensing
- Interface:Network ports x2, RS232 x1, TTL x1, SBUS x1 (configurable as 422/485)
- Throughput:5 Mbps maximum per node
Configuration and application fit
Published selection points
- Published specification: Series: Long-Range Data Link
- Published specification: Ground-to-Air Range: 200 km
- Published specification: Operating Frequency Band: 1.4 GHz (supports custom frequency bands)
- Published specification: Anti-Interference: Long-range data transmission with real-time spectrum sensing
- Published specification: Interface: Network ports x2, RS232 x1, TTL x1, SBUS x1 (configurable as 422/485)
- Published specification: Throughput: 5 Mbps maximum per node
For a configuration quote, send the model, quantity, destination and intended civil or commercial use. Add the required interface, payload, cargo or sensor details where relevant so the supply scope can be checked clearly.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | Long-Range Data Link |
| Ground-to-Air Range | 200 km |
| Operating Frequency Band | 1.4 GHz (supports custom frequency bands) |
| Anti-Interference | Long-range data transmission with real-time spectrum sensing |
| Interface | Network ports x2, RS232 x1, TTL x1, SBUS x1 (configurable as 422/485) |
| Throughput | 5 Mbps maximum per node |
| Transmitting Power | 0-35 dBm +/-2 (dual 3 W) |
| Maximum Power Dissipation | 36 +/-5 W |
| Weight | 416 +/-10 g |
| Size | 185.6 x 92 x 26.4 mm |
| Networking | Up to 128 nodes in a network configuration |
| Applications | UAV, USV, UGV, robot dog, maritime and mountain relay; inspection, firefighting, security communications |
Application Scenarios
- UAV, USV and UGV command links
- Video downlink for inspection crews
- Maritime and mountain relay
- Firefighting and security communications
- Robot-dog and mobile platform telemetry
