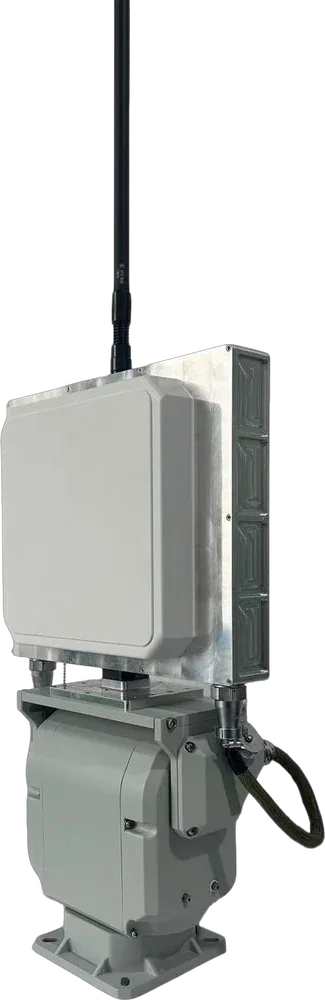

AT-GE Heavy-Duty Tracking Gimbal
- Series: Ground Stations & Tracking
- Type: Heavy-duty automatic tracking gimbal, directional + omnidirectional antennas
- Interface: Network port x2, serial port x2 (configurable)
Product overview
AT-GE Heavy-Duty Tracking Gimbal. Integrated dual-antenna automatic tracking with built-in RTK. Part of the AEROLINK ground segment, compatible with every AEROLINK link series for UAV, USV, UGV, robot-dog and maritime networks.
Choosing your configuration
For a video or data link, check the air/ground units, interfaces, frequency and antenna setup. Range depends on the stated test conditions, line of sight and interference; describe your environment and required link distance.
Pricing and quotation
Where a price is displayed, it applies to the listed configuration and quantity tier. Ask for a quotation to confirm included items, optional accessories, shipping charges and the current order total. Availability, delivery and support terms will be confirmed for your order.
Product questions
What should I check before selecting this model?
For a video or data link, check the air/ground units, interfaces, frequency and antenna setup. Range depends on the stated test conditions, line of sight and interference; describe your environment and required link distance.
What information do you need for a quotation?
Send the model or SKU, quantity, destination and intended civil or commercial use through the inquiry form or the existing email and WhatsApp channels. Include the equipment you plan to connect so we can discuss the configuration.
Does the displayed price cover every configuration?
Where a price is displayed, it applies to the listed configuration and quantity tier. Ask for a quotation to confirm included items, optional accessories, shipping charges and the current order total. Availability, delivery and support terms will be confirmed for your order.
- Series:Ground Stations & Tracking
- Type:Heavy-duty automatic tracking gimbal, directional + omnidirectional antennas
- Interface:Network port x2, serial port x2 (configurable)
- Enclosure:610 x 350 x 150 mm
- Power supply:External power supply
- Antenna interface:N-head
Configuration and application fit
Published selection points
- Published specification: Series: Ground Stations & Tracking
- Published specification: Type: Heavy-duty automatic tracking gimbal, directional + omnidirectional antennas
- Published specification: Interface: Network port x2, serial port x2 (configurable)
- Published specification: Enclosure: 610 x 350 x 150 mm
- Published specification: Power supply: External power supply
- Published specification: Antenna interface: N-head
For a configuration quote, send the model, quantity, destination and intended civil or commercial use. Add the required interface, payload, cargo or sensor details where relevant so the supply scope can be checked clearly.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | Ground Stations & Tracking |
| Type | Heavy-duty automatic tracking gimbal, directional + omnidirectional antennas |
| Interface | Network port x2, serial port x2 (configurable) |
| Enclosure | 610 x 350 x 150 mm |
| Power supply | External power supply |
| Antenna interface | N-head |
| Pan-tilt protocol | MAVLink |
| Positioning | Built-in RTK high-precision positioning |
| Protection | IP67 |
| Working temperature | -40 C to +55 C |
| Relative humidity | 95% |
| Horizontal rotation | unrestricted |
| Pitch rotation | -15 to +135 deg |
| Max rotation speed | 300 deg/s |
| Max pitch speed | 60 deg/s |
Application Scenarios
- UAV, USV and UGV command links
- Video downlink for inspection crews
- Maritime and mountain relay
- Firefighting and security communications
- Robot-dog and mobile platform telemetry
