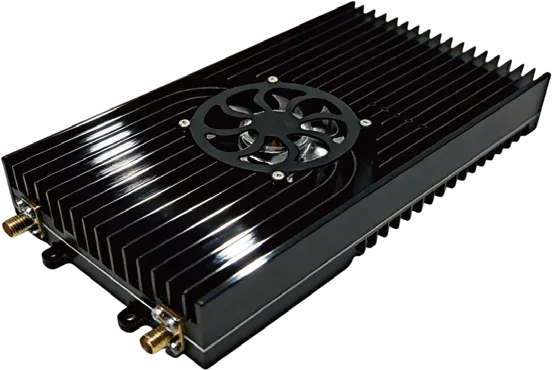

AT-M35 MESH Video & Data Link
- Series: MESH Video & Data Link
- Ground-to-Air Range: 100 km
- Operating Frequency Band: 1.4 GHz (supports custom frequency bands)
Product overview
100 km ground-to-air link from the AEROLINK MESH Video & Data Link series. MESH networking with real-time spectrum sensing and frequency hopping. Operating band 1.4 GHz with custom frequency bands supported; Up to 128 nodes in a network configuration. Suited to UAV, USV, UGV, robot-dog, maritime and mountain-relay networks, and to inspection, firefighting and security communications.
Choosing your configuration
For a video or data link, check the air/ground units, interfaces, frequency and antenna setup. Range depends on the stated test conditions, line of sight and interference; describe your environment and required link distance.
Pricing and quotation
Where a price is displayed, it applies to the listed configuration and quantity tier. Ask for a quotation to confirm included items, optional accessories, shipping charges and the current order total. Availability, delivery and support terms will be confirmed for your order.
Product questions
What should I check before selecting this model?
For a video or data link, check the air/ground units, interfaces, frequency and antenna setup. Range depends on the stated test conditions, line of sight and interference; describe your environment and required link distance.
What information do you need for a quotation?
Send the model or SKU, quantity, destination and intended civil or commercial use through the inquiry form or the existing email and WhatsApp channels. Include the equipment you plan to connect so we can discuss the configuration.
Does the displayed price cover every configuration?
Where a price is displayed, it applies to the listed configuration and quantity tier. Ask for a quotation to confirm included items, optional accessories, shipping charges and the current order total. Availability, delivery and support terms will be confirmed for your order.
- Series:MESH Video & Data Link
- Ground-to-Air Range:100 km
- Operating Frequency Band:1.4 GHz (supports custom frequency bands)
- Anti-Interference:MESH networking with real-time spectrum sensing and frequency hopping
- Interface:Network ports x2, RS232 x1, TTL x1, SBUS x1 (configurable as 422/485)
- Throughput:40 Mbps maximum single-node throughput
Configuration and application fit
Published selection points
- Published specification: Series: MESH Video & Data Link
- Published specification: Ground-to-Air Range: 100 km
- Published specification: Operating Frequency Band: 1.4 GHz (supports custom frequency bands)
- Published specification: Anti-Interference: MESH networking with real-time spectrum sensing and frequency hopping
- Published specification: Interface: Network ports x2, RS232 x1, TTL x1, SBUS x1 (configurable as 422/485)
- Published specification: Throughput: 40 Mbps maximum single-node throughput
For a configuration quote, send the model, quantity, destination and intended civil or commercial use. Add the required interface, payload, cargo or sensor details where relevant so the supply scope can be checked clearly.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | MESH Video & Data Link |
| Ground-to-Air Range | 100 km |
| Operating Frequency Band | 1.4 GHz (supports custom frequency bands) |
| Anti-Interference | MESH networking with real-time spectrum sensing and frequency hopping |
| Interface | Network ports x2, RS232 x1, TTL x1, SBUS x1 (configurable as 422/485) |
| Throughput | 40 Mbps maximum single-node throughput |
| Transmitting Power | 0-35 dBm +/-2 (dual 3 W) |
| Maximum Power Dissipation | 36 +/-5 W |
| Weight | 416 +/-10 g |
| Size | 185.6 x 92 x 26.4 mm |
| Networking | Up to 128 nodes in a network configuration |
| Applications | UAV, USV, UGV, robot dog, maritime and mountain relay; inspection, firefighting, security communications |
Application Scenarios
- UAV, USV and UGV command links
- Video downlink for inspection crews
- Maritime and mountain relay
- Firefighting and security communications
- Robot-dog and mobile platform telemetry
