Holybro Pixhawk Jetson 6X Pro Baseboard Bundle User Manual & Quick Start Guide
The Holybro Pixhawk Jetson 6X Pro Baseboard Bundle is a AI Intelligent Modules by Holybro, supplied EXW from Hong Kong by Aerosys Technology. This page gathers the quick-start essentials for the Holybro Pixhawk Jetson 6X Pro Baseboard Bundle: what is in the box, the key specifications, and how it pairs with the rest of the catalogue. For pricing and lead time, request a quotation — quotations are valid for 14 days and OEM configurations are available.
What’s in the box
- Pixhawk 6X Pro flight controller
- Pixhawk Jetson Orin motherboard
- NVIDIA Orin NX 16 GB / Orin Nano 4 GB with cooler and fan
- Samsung PM9B1 PCIe 4.0 NVMe 512 GB SSD
- Intel 8265NGW Wi-Fi/Bluetooth module
- IMX219-200 camera
- PM02D power module
- UBEC 12A (3-14S)
- PDB board
- cable set
Compatibility & pairing
- Other AI Intelligent Modules: N200M VIO Navigation Module, FalconLock DS240 | DS120 UAV Visual Guidance System, DS072 Ultra-Light AI Video Tracking Board — all 18 models
Key specifications
| Parameter | Value |
|---|---|
| Processor | STM32H753 FMU (32-bit Arm Cortex-M7, 480 MHz) + STM32F103 IO (Cortex-M3, 72 MHz) |
| Computing | NVIDIA Jetson Orin NX (16 GB) or Orin Nano (4 GB), compatible with both |
| Sensors | 3 × ICM-45686 IMU (BalancedGyro), ICP20100 + BMP388 barometers, BMM150 magnetometer |
| Network | 2 × Gigabit Ethernet (Jetson + autopilot via RTL8367S switch, 8-pin JST-GH and RJ45) |
| Camera | 2 × MIPI CSI input (4-lane, 22-pin FFC), IMX219-200 camera included |
| Output | Mini HDMI |
| USB | 2 × USB 3.0 host (USB-A, 1.5 A), 2 × USB 2.0 host (JST-GH, 1.0 A), 1 × USB-C programming/debug |
| Storage | M.2 Key M 2242/2280 for NVMe SSD (PCIe x4) — Samsung PM9B1 512 GB included; M.2 Key E 2230 for Wi-Fi/Bluetooth (Intel 8265NGW included) |
| PAB interface | Pixhawk Autopilot Bus, 100-pin + 50-pin Hirose DF40 (accepts any PAB flight controller, e.g. Pixhawk 6X) |
| PWM outputs | 16 (2 × 10-pin JST-GH) |
| Control interfaces | 2 × CAN, SPI, I2C, I2S, UART4 + I2C, 3 × telemetry UART with flow control, RC input (PPM/SBUS), DSM input |
| Operating voltage | 7–21 V (3S–4S) built-in BEC; separate power circuits for flight safety |
| Power consumption | min. 8 V / 3 A (depends on peripherals) |
| Dimensions | 126 × 80 × 38 mm (without Jetson and FC) |
| Weight | 203.2 g (with Jetson, cooler, FC, SSD, Wi-Fi) |
At a glance
- Category: AI Intelligent Modules
- Price: Price on Request (EXW, 5 units)
- MOQ: 1 PC
- Quotation validity: 14 days from date of issue
Frequently asked questions
What does Aerosys Technology supply?
We are a manufacturer of unmanned aircraft, unmanned ground vehicles and the components that support them, and have been building and shipping them since 2018. Our catalogue covers 108 product models across 8 categories: Ground Control Stations, Video and Data Links, Gimbals and Cameras, VTOL Fixed-Wing UAVs, Multi-rotor UAVs, Unmanned Ground Vehicles, Mowers and Lawn Equipment, and Drone Detection and Tracking — serving commercial operators, system integrators and enterprises worldwide from our base in Hong Kong.
What is the minimum order quantity?
It depends on the product line. Complete platforms such as VTOL aircraft and unmanned ground vehicles are quoted per set. Ground control stations, gimbal systems and video link systems are quoted on a 5-unit basis. Individual components and mowers are available from a single piece. The MOQ for each item is listed on its product page.
How do I get a quotation, and how long is it valid?
Send us the model numbers and quantities you need — WhatsApp is the fastest route, and email works too. Quotations are issued in USD and are valid for 14 days from the date of issue unless a different period is stated. An order is confirmed only when we issue a written order confirmation and receive the agreed payment; a quotation or a WhatsApp message alone is not an accepted order.
How long does shipping take?
In-stock components are generally prepared within 1 to 3 business days after payment clears. Typical transit time is roughly 3 to 7 business days by international express (DHL, UPS or FedEx) and 7 to 21 business days by standard parcel service, with air or sea freight arranged for larger and heavier items. These are estimates rather than guarantees, because customs processing is outside our control.
Are your prices EXW or delivered?
Published prices are in USD on an EXW basis unless the quotation says otherwise. EXW means the price covers the goods at our premises; international freight, insurance, import duty, VAT and destination charges are additional and are the buyer's responsibility. Send us your destination country and postcode and we will give you a delivered estimate.
Related products

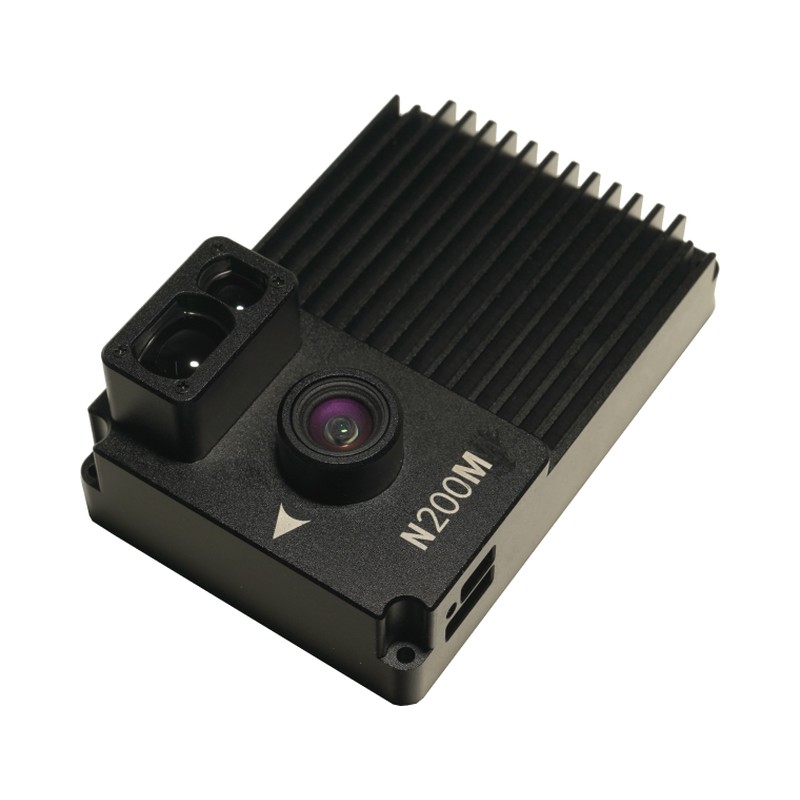

N200M VIO Navigation Module
