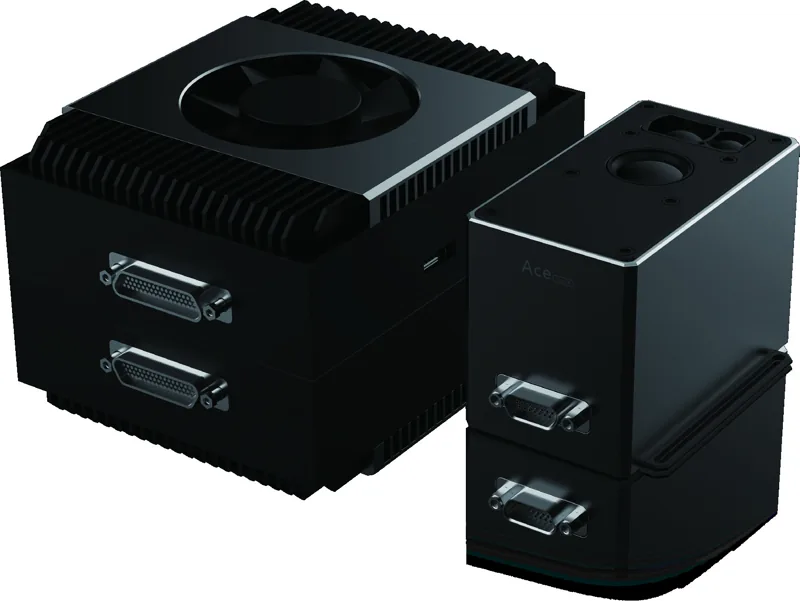

Moss Ace Visual Navigation & AI Perception System
- Core algorithm: VIO (Visual Odometry), Map Matching, Inertial Navigation Fusion
- Positioning accuracy: ≤ ±(10 m + 1% altitude)
- Altitude range: 200 - 1500 m
Product Overview
The Moss Ace Visual Navigation & AI Perception System is part of the AI Intelligent Modules range, typically used for Real-time target detection, locking and tracking. Key specifications: Core algorithm: VIO (Visual Odometry), Map Matching, Inertial Navigation Fusion; Positioning accuracy: ≤ ±(10 m + 1% altitude); Altitude range: 200 - 1500 m. Aerosys Technology supplies it EXW from Hong Kong; MOQ 1 PC.
Two-box 100 TOPS system with 75 m/s navigation, universal object recognition of 500+ types, scene matching ≥98.5% and 32+ tracked targets — autonomous missions even with GPS and data link denied (navigation and perception time-shared).
Embedded AI tracking and visual guidance modules from our partner production line — FPGA-accelerated target locking, RK3588S/RV1126B AI boards and multi-algorithm video trackers for pods, sentries and terminal guidance.
Key Features
- Core algorithm:VIO (Visual Odometry), Map Matching, Inertial Navigation Fusion
- Positioning accuracy:≤ ±(10 m + 1% altitude)
- Altitude range:200 - 1500 m
- Speed range:75 m/s
- Output frequency:10 Hz
- AI perception:100 TOPS edge computing
Technical Specifications
| Parameter | Value |
|---|---|
| Core algorithm | VIO (Visual Odometry), Map Matching, Inertial Navigation Fusion |
| Positioning accuracy | ≤ ±(10 m + 1% altitude) |
| Altitude range | 200 - 1500 m |
| Speed range | 75 m/s |
| Output frequency | 10 Hz |
| AI perception | 100 TOPS edge computing |
| Scene matching | ≥ 98.5% accuracy at ≥ 5 FPS |
| Object detection | ≥ 27 categories, F1-score ≥ 85% at ≥ 20 FPS |
| Universal recognition | ≥ 500 types covering 80% of scenarios, F1-score ≥ 80% |
| Multi-object tracking | ≥ 32 targets, ID stability ≥ 85% within 5 s, ≥ 30 FPS |
| Map area | up to 320 × 320 km |
| Camera | visible light, FOV 84.5 deg |
| Laser wavelength | 905 nm |
| Software protocol | NMEA-0183 |
| Minimum illuminance | ≥ 80 lx (daytime) |
| Power supply | 18 - 28 V |
| Max power | ≤ 36 W; avg ≤ 30 W |
| Interfaces | Gigabit Ethernet, CAN, RS422 |
| Weight | navigation box ≤ 350 g; perception box ≤ 180 g |
| Protection rating | perception box IP65 |
| Operating temp | -10 to +60 °C |
| Applicable terrain | all terrains except weak-texture areas (e.g., water, snow) |
Application Scenarios
- Real-time target detection, locking and tracking
- UAV visual guidance and terminal guidance
- Airborne pods and intelligent gimbal systems
- Border, coastal and perimeter surveillance
- Secondary development for embedded AI vision
Optional Accessories & Variants

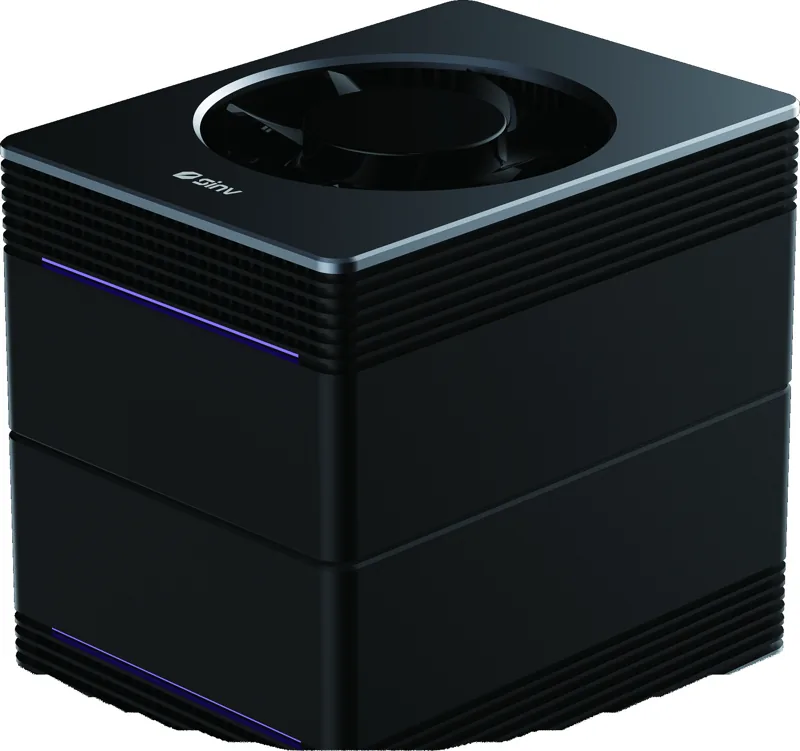

Moss Ace Lite Visual Navigation & AI Perception System
Two-box system pairing fused VIO / map matching / INS navigation with a 67 TOPS AI perception module: scene matching ≥98.5%, detec
Moss Ace Lite-T Day/Night Navigation & AI Perception
Two-box day/night system: fused VIO / map matching / INS navigation plus a 67 TOPS AI perception module with visible + infrared ca

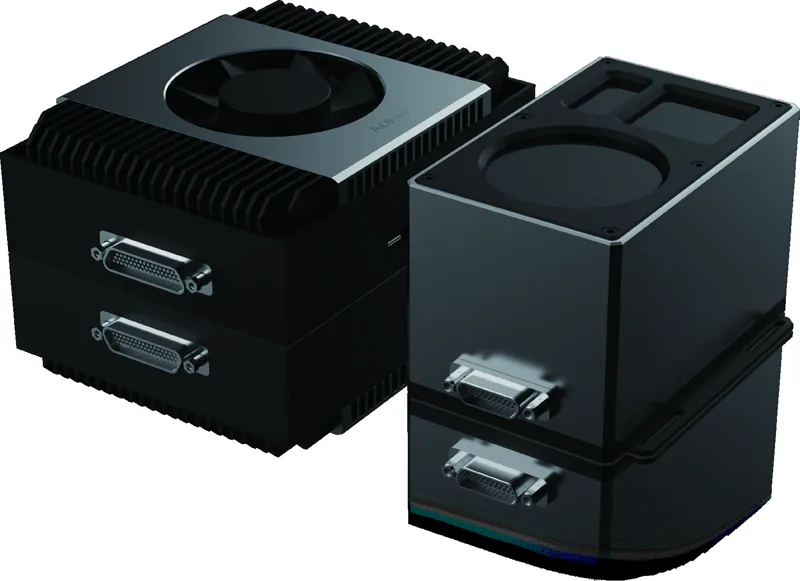

Moss Ace-T Day/Night Navigation & AI Perception System
Two-box 100 TOPS day/night system with 75 m/s navigation, visible + infrared cameras, universal recognition of 500+ types, scene m
Moss Ace-Gen2 Navigation & AI Perception System
Second-generation 100 TOPS system with customizable 2,500 m ceiling and 100 m/s top speed, universal recognition of 500+ types and
