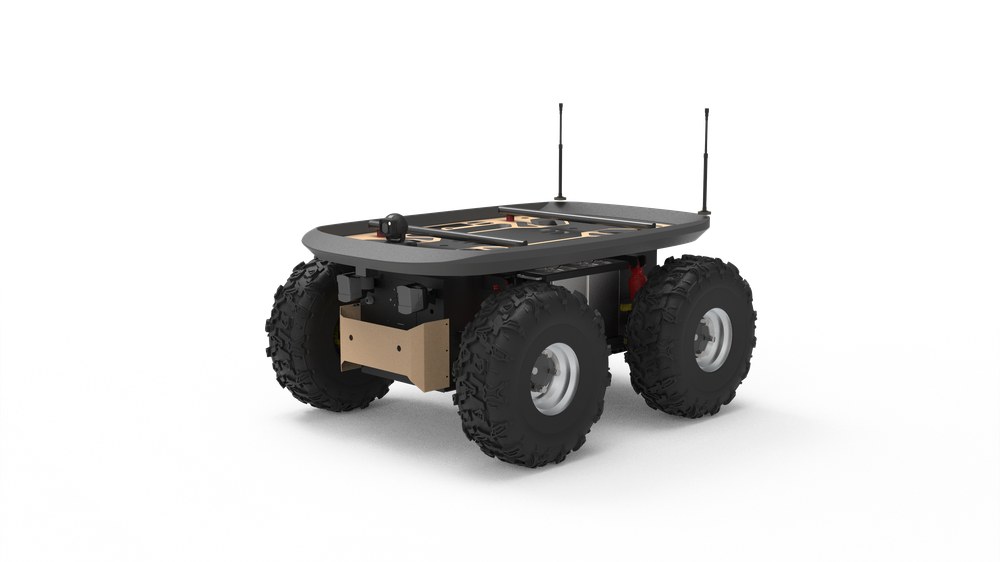

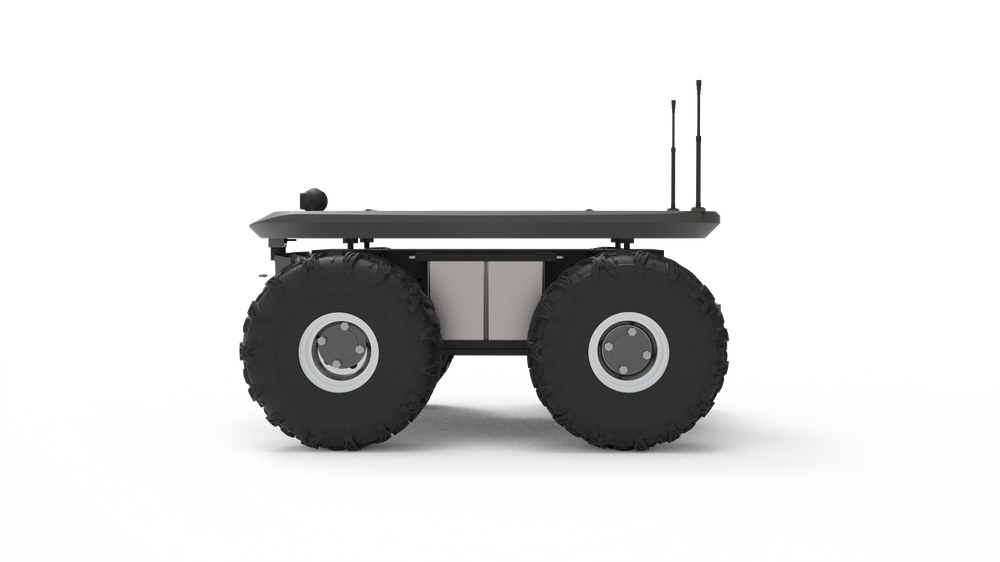

Aerosys AT-W235 Wheeled Robot Chassis
Aerosys AT-W235 wheeled robot chassis with 235 kg payload. MOQ 1, EXW Hong Kong. Ask for a USD quote, configuration details and delivery estimate.
- Payload: 235KG
- Speed: 0-16Km/h
- Dimensions: 1450 × 1220 × 1000 mm
EXW Hong Kong
10 units in stock - confirmed 9 October 2026. Please reconfirm before ordering.
One-year warranty. Technical support within 24 hours.
Product overview
The AT-W235 is an Aerosys wheeled robot chassis with a published 235 kg payload rating. It provides a mobile base for mobile inspection prototypes, indoor or outdoor integration projects and sensor-carrying platforms.
Choose this model by its 1450 × 1220 × 1000 mm footprint, 0-16Km/h published speed and the specifications below. Payload mounting and operating conditions should be defined together, rather than selecting by payload capacity alone.
Configuration snapshot: protection rating: IP64; ground clearance: 165±20mm （Look at the load）; supply voltage: DC 48V. Match these details to your operating environment and upper-module installation.
Configuration and application fit
Published selection points
- Published specification: Rated Payload: 235KG
- Published specification: Max Speed: 0-16Km/h
- Published specification: Dimensions (L×W×H): 1450 × 1220 × 1000 mm
- Published specification: Chassis Weight: 300KG
- Published specification: Ground Clearance: 165±20mm （Look at the load）
- Published specification: Protection Rating: IP64
For a configuration quote, send the model, quantity, destination and intended civil or commercial use. Add the required interface, payload, cargo or sensor details where relevant so the supply scope can be checked clearly.
Technical specifications
| Parameter | Published specification |
|---|---|
| Rated Payload | 235KG |
| Max Speed | 0-16Km/h |
| Dimensions (L×W×H) | 1450 × 1220 × 1000 mm |
| Chassis Weight | 300KG |
| Ground Clearance | 165±20mm （Look at the load） |
| Protection Rating | IP64 |
| Drive Power | 4×2000W |
| Supply Voltage | DC 48V |
| Battery | 48V 120AH ≈6KWH |
Load distribution, center of gravity, surface or terrain and configuration affect operation. Payload, speed, slope and obstacle specifications are separate limits, not a combined operating guarantee.
Standard configuration
- Drive unit
- Vehicle control unit (VCU)
- Radio controller
- Battery
- Charger
Cameras, LiDAR, robotic arms, autonomous navigation, ROS drivers and application-specific tools are not represented as standard equipment. State the required accessories and interfaces in your enquiry.
Application and integration
For AT-W235 integration, provide the complete payload mass, mounting dimensions, center of gravity, work area and operating conditions. Tell us the control interfaces, required sensors and software environment so the supply scope can be quoted clearly.
Potential projects include sensor platforms, inspection prototypes and material-handling integration. Check route width, surface condition and turning requirements against the listed chassis geometry. Navigation and safety systems must be specified for the finished application.
Price, availability and support
Published price: USD 22,400, EXW Hong Kong. Minimum order: 1 unit. Freight, taxes and optional peripherals are quoted separately. Formal quotations are valid for 30 days from issue.
Stock confirmed on 9 October 2026: 10 units per model. Typical estimated arrival is within two weeks, depending on destination, shipping arrangements and customs clearance; this is not a worldwide delivery guarantee. Confirm current stock and transport details before payment.
One-year warranty and technical support within 24 hours. Supply is for lawful civilian and industrial applications, subject to applicable export controls and destination requirements. Availability and shipping eligibility are confirmed with the quotation.
Frequently asked questions
What is included with the AT-W235?
The standard configuration includes the drive unit, VCU, radio controller, battery and charger. Sensors, cameras, navigation systems and other peripherals are quoted separately.
How should the payload rating be used?
The published payload figure is 235 kg. Mounting, load distribution, center of gravity, terrain and operating speed must be assessed together. Maximum speed and obstacle figures are separate specifications, not a guarantee that all limits can be reached simultaneously.
Does the chassis include autonomous navigation or ROS drivers?
Autonomous navigation, obstacle avoidance, ROS drivers and SDK delivery are not part of the stated standard package. Tell us your control interface and software requirements so we can confirm the available integration scope.
What are the price and minimum order?
The published price is USD 22,400, EXW Hong Kong, with a minimum order of 1 unit. Freight, taxes and optional peripherals are additional. A formal quotation is valid for 30 days from its issue date.
What are the stock, delivery and support terms?
10 units are in stock as confirmed on 9 October 2026. Typical estimated arrival is within two weeks, subject to destination, transport arrangements and customs. Confirm current availability before ordering. One-year warranty and technical support within 24 hours apply; freight is quoted separately.
Request a configuration quote
Send the model, quantity, destination, application, payload and required options. We will confirm the configuration-specific price and delivery plan.
