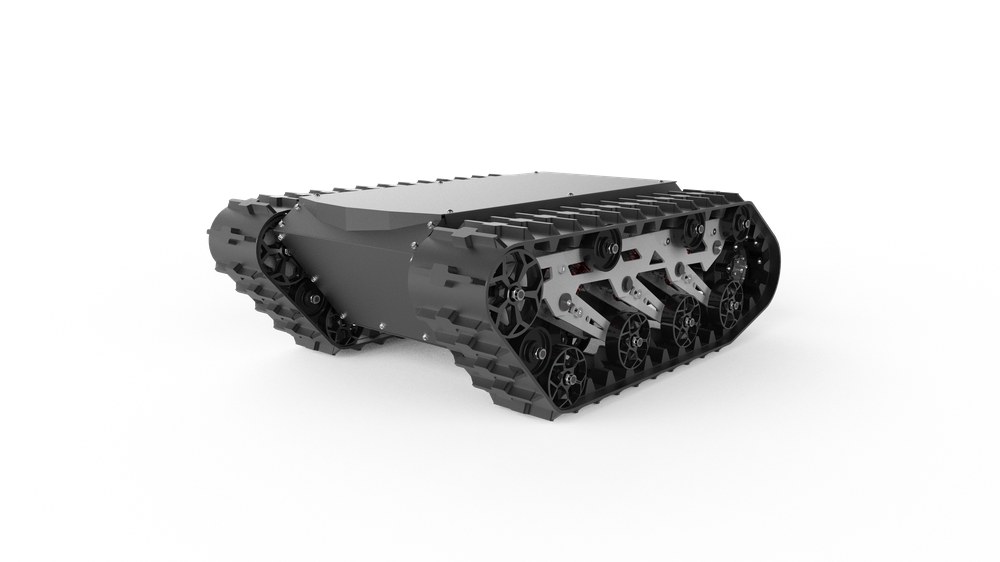

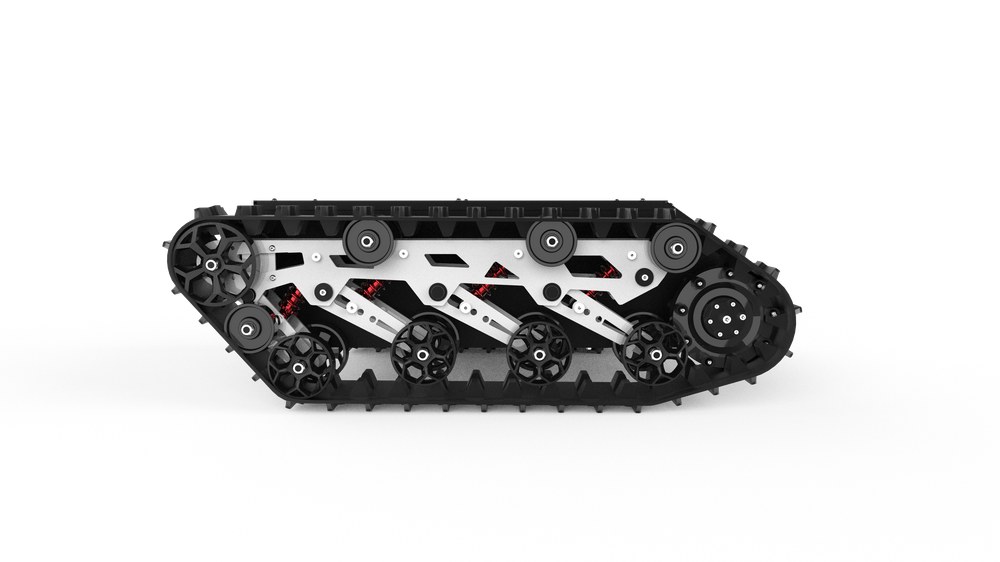

Aerosys AT-T65 Tracked Robot Chassis
Aerosys AT-T65 tracked robot chassis with 65 kg payload. MOQ 1, EXW Hong Kong. Ask for a USD quote, configuration details and delivery estimate.
- Payload: 65 kg
- Speed: 0-6.2 km/h (min. fine-tune speed: 0.6 km/h)
- Dimensions: 960 × 700 × 330 mm
EXW Hong Kong
10 units in stock - confirmed 9 October 2026. Please reconfirm before ordering.
One-year warranty. Technical support within 24 hours.
Product overview
The AT-T65 is an Aerosys tracked robot chassis with a published 65 kg payload rating. It provides a mobile base for sensor-carrying prototypes, industrial inspection projects and agricultural monitoring platforms.
Choose this model by its 960 × 700 × 330 mm footprint, 0-6.2 km/h (min. fine-tune speed: 0.6 km/h) published speed and the specifications below. Payload mounting and operating conditions should be defined together, rather than selecting by payload capacity alone.
Configuration snapshot: protection rating: IP54 (upgradable to IP64); ground clearance: 75 ± 10 mm (depending on load); supply voltage: DC 48V. Match these details to your operating environment and upper-module installation.
Configuration and application fit
Published selection points
- Published specification: Rated Payload: 65 kg
- Published specification: Max Speed: 0-6.2 km/h (min. fine-tune speed: 0.6 km/h)
- Published specification: Dimensions (L×W×H): 960 × 700 × 330 mm
- Published specification: Chassis Weight: 105 kg
- Published specification: Ground Clearance: 75 ± 10 mm (depending on load)
- Published specification: Protection Rating: IP54 (upgradable to IP64)
For a configuration quote, send the model, quantity, destination and intended civil or commercial use. Add the required interface, payload, cargo or sensor details where relevant so the supply scope can be checked clearly.
Technical specifications
| Parameter | Published specification |
|---|---|
| Rated Payload | 65 kg |
| Max Speed | 0-6.2 km/h (min. fine-tune speed: 0.6 km/h) |
| Dimensions (L×W×H) | 960 × 700 × 330 mm |
| Chassis Weight | 105 kg |
| Ground Clearance | 75 ± 10 mm (depending on load) |
| Protection Rating | IP54 (upgradable to IP64) |
| Max Climbing | 30° |
| Vertical Obstacle | 125 mm (depending on center of gravity) |
| Travel Unit | High-quality rubber embedded with Kevlar fiber |
| Track Width | 150 mm |
| Suspension | 8 independent hydraulic damping shock absorbers (left/right) |
| Drive Power | 2 × 785 W |
| Supply Voltage | DC 48V |
| Remote Range | >200 m (line of sight); clear line of sight, unobstructed and interference-free conditions |
Load distribution, center of gravity, surface or terrain and configuration affect operation. Payload, speed, slope and obstacle specifications are separate limits, not a combined operating guarantee.
Standard configuration
- Drive unit
- Vehicle control unit (VCU)
- Radio controller
- Battery
- Charger
Cameras, LiDAR, robotic arms, autonomous navigation, ROS drivers and application-specific tools are not represented as standard equipment. State the required accessories and interfaces in your enquiry.
Application and integration
For AT-T65 integration, provide the complete payload mass, mounting dimensions, center of gravity, work area and operating conditions. Tell us the control interfaces, required sensors and software environment so the supply scope can be quoted clearly.
Potential projects include carrying inspection instruments over uneven industrial routes and agricultural monitoring equipment. A spraying, mowing, mapping or inspection task requires separately specified tools and validation; purchasing the chassis alone does not provide those functions.
Price, availability and support
Published price: USD 7,000, EXW Hong Kong. Minimum order: 1 unit. Freight, taxes and optional peripherals are quoted separately. Formal quotations are valid for 30 days from issue.
Stock confirmed on 9 October 2026: 10 units per model. Typical estimated arrival is within two weeks, depending on destination, shipping arrangements and customs clearance; this is not a worldwide delivery guarantee. Confirm current stock and transport details before payment.
One-year warranty and technical support within 24 hours. Supply is for lawful civilian and industrial applications, subject to applicable export controls and destination requirements. Availability and shipping eligibility are confirmed with the quotation.
Frequently asked questions
What is included with the AT-T65?
The standard configuration includes the drive unit, VCU, radio controller, battery and charger. Sensors, cameras, navigation systems and other peripherals are quoted separately.
How should the payload rating be used?
The published payload figure is 65 kg. Mounting, load distribution, center of gravity, terrain and operating speed must be assessed together. Maximum speed and obstacle figures are separate specifications, not a guarantee that all limits can be reached simultaneously.
Does the chassis include autonomous navigation or ROS drivers?
Autonomous navigation, obstacle avoidance, ROS drivers and SDK delivery are not part of the stated standard package. Tell us your control interface and software requirements so we can confirm the available integration scope.
What are the price and minimum order?
The published price is USD 7,000, EXW Hong Kong, with a minimum order of 1 unit. Freight, taxes and optional peripherals are additional. A formal quotation is valid for 30 days from its issue date.
What are the stock, delivery and support terms?
10 units are in stock as confirmed on 9 October 2026. Typical estimated arrival is within two weeks, subject to destination, transport arrangements and customs. Confirm current availability before ordering. One-year warranty and technical support within 24 hours apply; freight is quoted separately.
Request a configuration quote
Send the model, quantity, destination, application, payload and required options. We will confirm the configuration-specific price and delivery plan.
