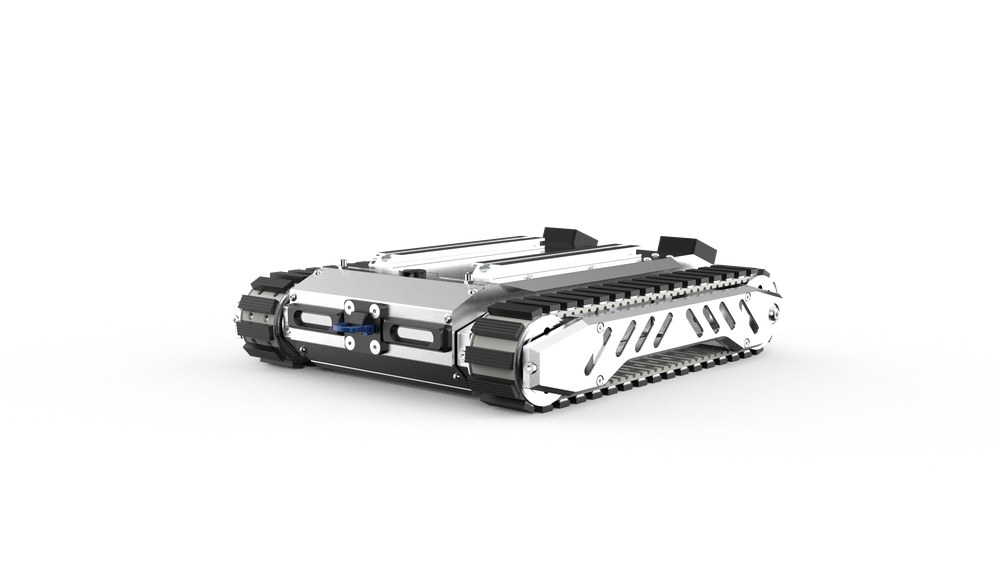

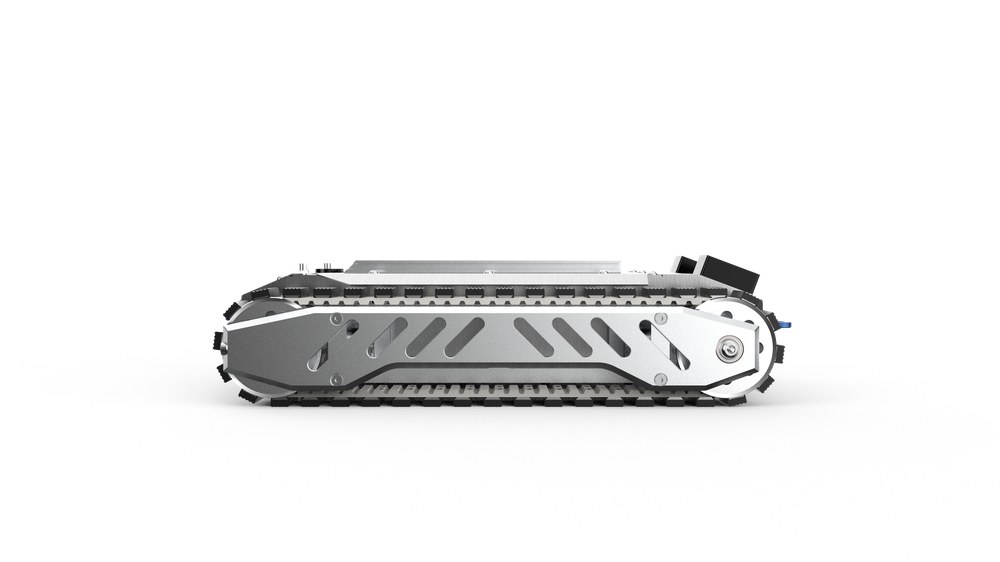

Aerosys AT-G10 Magnetic Wall-Climbing Chassis
Aerosys AT-G10 magnetic climbing chassis with 10 kg vertical payload. MOQ 1, EXW Hong Kong. Ask for a USD quote, configuration details and delivery estimate.
- Payload: 10 kg (90-degree vertical surface)
- Speed: 0-0.39 m/s
- Dimensions: 390 × 342 × 100 mm
EXW Hong Kong
10 units in stock - confirmed 9 October 2026. Please reconfirm before ordering.
One-year warranty. Technical support within 24 hours.
Product overview
The AT-G10 is an Aerosys magnetic wall-climbing chassis with a published 10 kg payload rating. It provides a mobile base for sensor-integration projects on suitable magnetically conductive steel surfaces, such as tank or vessel inspection.
Choose this model by its 390 × 342 × 100 mm footprint, 0-0.39 m/s published speed and the specifications below. Payload mounting and operating conditions should be defined together, rather than selecting by payload capacity alone.
Configuration snapshot: protection rating: IP54 (upgradable to IP65, but this will reduce the ability to adapt to large curved surfaces); supply voltage: DC 22.2V. Match these details to your operating environment and upper-module installation.
Magnetic adhesion requires suitable iron or steel surfaces. This is a climbing base for integration, not a complete certified inspection system. Inspection sensors and task-specific equipment are not included in the standard chassis price.
Configuration and application fit
Published selection points
- Published specification: Rated Payload: 10 kg (90-degree vertical surface)
- Published specification: Max Speed: 0-0.39 m/s
- Published specification: Dimensions (L×W×H): 390 × 342 × 100 mm
- Published specification: Chassis Weight: 7.5 kg (without battery)
- Published specification: Protection Rating: IP54 (upgradable to IP65, but this will reduce the ability to adapt to large curved surfaces)
- Published specification: Travel Unit: Polyurethane & magnet composite
For a configuration quote, send the model, quantity, destination and intended civil or commercial use. Add the required interface, payload, cargo or sensor details where relevant so the supply scope can be checked clearly.
Technical specifications
| Parameter | Published specification |
|---|---|
| Rated Payload | 10 kg (90-degree vertical surface) |
| Max Speed | 0-0.39 m/s |
| Dimensions (L×W×H) | 390 × 342 × 100 mm |
| Chassis Weight | 7.5 kg (without battery) |
| Protection Rating | IP54 (upgradable to IP65, but this will reduce the ability to adapt to large curved surfaces) |
| Travel Unit | Polyurethane & magnet composite |
| Track Width | 40 mm |
| Drive Power | 240W × 2 |
| Battery | Li-ion DC 24V 10Ah |
| Wheel Diameter | 75.6 mm |
| Rated Torque | 16.8 Nm |
| Supply Voltage | DC 22.2V |
| Adhesion surface | Magnetically conductive material (iron) |
| Curved surface | Cylinder diameter greater than 5 m |
Load distribution, center of gravity, surface or terrain and configuration affect operation. Payload, speed, slope and obstacle specifications are separate limits, not a combined operating guarantee.
Standard configuration
- Drive unit
- Vehicle control unit (VCU)
- Radio controller
- Battery
- Charger
Cameras, LiDAR, robotic arms, autonomous navigation, ROS drivers and application-specific tools are not represented as standard equipment. State the required accessories and interfaces in your enquiry.
Application and integration
For AT-G10 integration, provide the complete payload mass, mounting dimensions, center of gravity, work area and operating conditions. Tell us the control interfaces, required sensors and software environment so the supply scope can be quoted clearly.
Potential projects include sensor mounting for steel tank, vessel and structural inspection. Check surface material, curvature, coating, adhesion and payload position before selecting a configuration. Non-destructive testing equipment and inspection certification are not included claims.
Price, availability and support
Published price: USD 5,200, EXW Hong Kong. Minimum order: 1 unit. Freight, taxes and optional peripherals are quoted separately. Formal quotations are valid for 30 days from issue.
Stock confirmed on 9 October 2026: 10 units per model. Typical estimated arrival is within two weeks, depending on destination, shipping arrangements and customs clearance; this is not a worldwide delivery guarantee. Confirm current stock and transport details before payment.
One-year warranty and technical support within 24 hours. Supply is for lawful civilian and industrial applications, subject to applicable export controls and destination requirements. Availability and shipping eligibility are confirmed with the quotation.
Frequently asked questions
What is included with the AT-G10?
The standard configuration includes the drive unit, VCU, radio controller, battery and charger. Sensors, cameras, navigation systems and other peripherals are quoted separately.
Which surfaces and payload conditions apply?
The AT-G10 is a magnetic climbing chassis for suitable magnetically conductive iron or steel surfaces. Its 10 kg payload figure applies to vertical operation. It is not a general-purpose robot for glass, concrete or non-magnetic walls. Surface condition, adhesion and payload mounting require assessment.
Does the chassis include autonomous navigation or ROS drivers?
Autonomous navigation, obstacle avoidance, ROS drivers and SDK delivery are not part of the stated standard package. Tell us your control interface and software requirements so we can confirm the available integration scope.
What are the price and minimum order?
The published price is USD 5,200, EXW Hong Kong, with a minimum order of 1 unit. Freight, taxes and optional peripherals are additional. A formal quotation is valid for 30 days from its issue date.
What are the stock, delivery and support terms?
10 units are in stock as confirmed on 9 October 2026. Typical estimated arrival is within two weeks, subject to destination, transport arrangements and customs. Confirm current availability before ordering. One-year warranty and technical support within 24 hours apply; freight is quoted separately.
Request a configuration quote
Send the model, quantity, destination, application, payload and required options. We will confirm the configuration-specific price and delivery plan.
