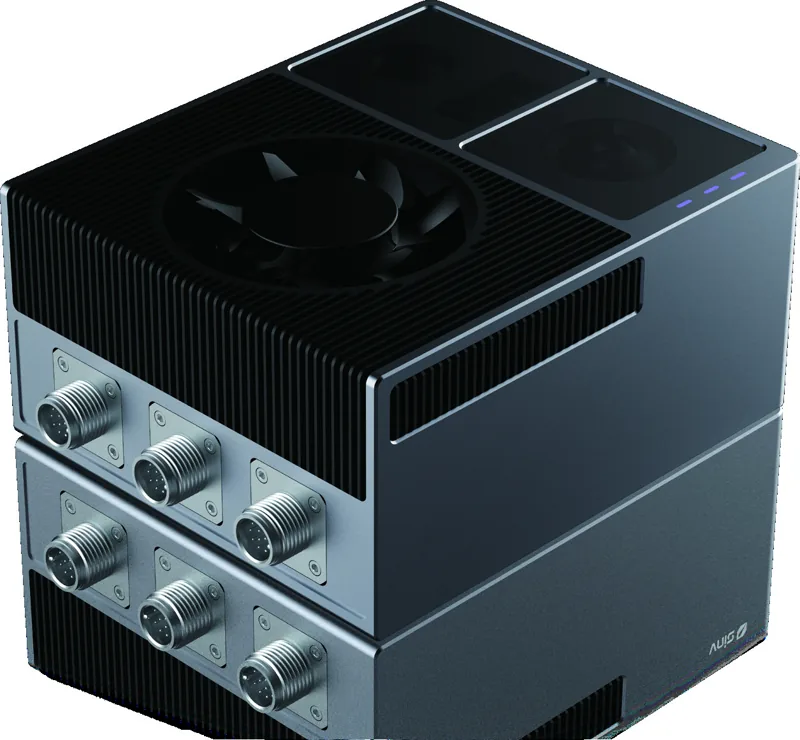

Sight Ace Lite-T Day/Night Fused Module
- Weight: ≤ 625 g
- Core algorithm: VIO (Visual Odometry), Map Matching, Inertial Navigation Fusion
- Interfaces: Gigabit Ethernet, CAN, RS422
- Power supply: 18 - 26 V
Product Overview
Aerosys offers the Sight Ace Lite-T Day/Night Fused Module, an AI module. Fused VIO, map matching and INS navigation with visible + infrared cameras for VTOL and fixed-wing UAVs: 1,500 m ceiling, 60 m/s top speed. Published data lists max power as ≤ 33 W; avg ≤ 27 W and dimensions as ≤ 131 × 107.3 × 57 mm. Supply scope and included equipment are itemised in the quotation for the selected configuration.
Technical Specifications
| Parameter | Value |
|---|---|
Compute and algorithms | |
| Core algorithm | VIO (Visual Odometry), Map Matching, Inertial Navigation Fusion |
| Output frequency | 10 Hz |
| Camera | visible (84.5 deg) + infrared (99 deg) |
Interfaces and performance | |
| Positioning accuracy | ≤ ±(10 m + 1% altitude) |
| Altitude range | 200 - 1500 m |
| Speed range | 60 m/s |
| Interfaces | Gigabit Ethernet, CAN, RS422 |
Power and environment | |
| Power supply | 18 - 26 V |
| Max power | ≤ 33 W; avg ≤ 27 W |
| Weight | ≤ 625 g |
| Dimensions | ≤ 131 × 107.3 × 57 mm |
Additional published specifications | |
| Initialization time | ≤ 3 min |
| Map loading | pre-loaded |
| Map area | up to 200 × 200 km |
| Laser wavelength | 905 nm |
| Software protocol | NMEA-0183 |
| Lighting conditions | day / night, no requirement |
| Protection rating | IP65 |
| Operating temp | -40 to +60 °C |
| Applicable terrain | all terrains except weak-texture areas (e.g., water, snow) |
Configuration and supply
Export documents are confirmed per destination.
Application Scenarios
- Real-time target detection, locking and tracking
- UAV visual guidance and terminal guidance
- Airborne pods and intelligent gimbal systems
- Border, coastal and perimeter surveillance
- Secondary development for embedded AI vision
Frequently Asked Questions
What endurance and range are published for the Sight Ace Lite-T Day/Night Fused Module?
Altitude range: 200 - 1500 m. Actual figures depend on payload, speed, altitude and mission profile; confirm the intended configuration before order.
What is included in one set?
The quotation itemises the selected items and accessories, ground equipment where applicable, and documentation for the chosen configuration. MOQ is 1 PC; lead time is confirmed per order.
Can the Sight Ace Lite-T Day/Night Fused Module be configured for a specific mission?
Send the payload or sensor, interface, operating environment, quantity and destination. The configuration and supply scope is confirmed before quotation.
How are price and shipping handled?
Prices are in USD on an EXW Hong Kong basis. Freight, insurance, import duty, VAT and destination charges are additional. Packing and shipping are confirmed with the quotation.
