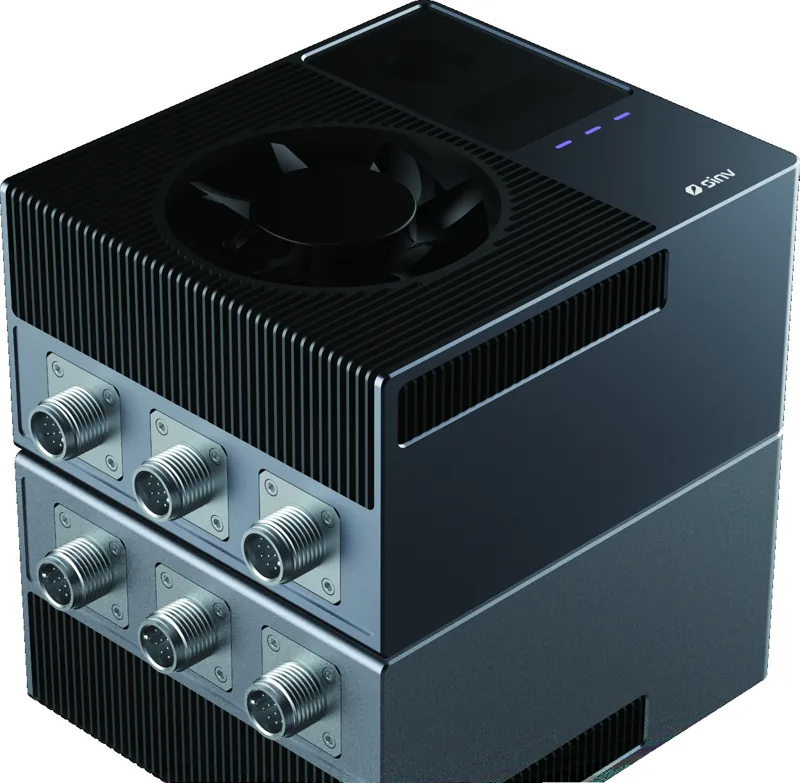

Sight Ace Lite Fused Navigation Module
- Core algorithm: VIO (Visual Odometry), Map Matching, Inertial Navigation Fusion
- Positioning accuracy: ≤ ±(10 m + 1% altitude)
- Altitude range: 200 - 1500 m
Product Overview
The Sight Ace Lite Fused Navigation Module is part of the AI Intelligent Modules range, typically used for Real-time target detection, locking and tracking. Key specifications: Core algorithm: VIO (Visual Odometry), Map Matching, Inertial Navigation Fusion; Positioning accuracy: ≤ ±(10 m + 1% altitude); Altitude range: 200 - 1500 m. Aerosys Technology supplies it EXW from Hong Kong; MOQ 1 PC.
Deeply fused visible-light VIO, map matching and INS for VTOL and fixed-wing UAVs in GPS-denied environments: 1,500 m ceiling, 60 m/s top speed, maps up to 200 × 200 km and IP65 protection.
Embedded AI tracking and visual guidance modules from our partner production line — FPGA-accelerated target locking, RK3588S/RV1126B AI boards and multi-algorithm video trackers for pods, sentries and terminal guidance.
Key Features
- Core algorithm:VIO (Visual Odometry), Map Matching, Inertial Navigation Fusion
- Positioning accuracy:≤ ±(10 m + 1% altitude)
- Altitude range:200 - 1500 m
- Speed range:60 m/s
- Output frequency:10 Hz
- Initialization time:≤ 3 min
Technical Specifications
| Parameter | Value |
|---|---|
| Core algorithm | VIO (Visual Odometry), Map Matching, Inertial Navigation Fusion |
| Positioning accuracy | ≤ ±(10 m + 1% altitude) |
| Altitude range | 200 - 1500 m |
| Speed range | 60 m/s |
| Output frequency | 10 Hz |
| Initialization time | ≤ 3 min |
| Map loading | pre-loaded |
| Map area | up to 200 × 200 km (open-source, surveying or custom satellite maps) |
| Camera | visible light, FOV 84.5 deg |
| Laser wavelength | 905 nm |
| Software protocol | NMEA-0183 |
| Minimum illuminance | ≥ 80 lx (daytime) |
| Power supply | 18 - 26 V |
| Max power | ≤ 30 W; avg ≤ 24 W |
| Interfaces | Gigabit Ethernet, CAN, RS422 |
| Weight | ≤ 535 g |
| Dimensions | ≤ 118 × 94.5 × 57 mm |
| Protection rating | IP65 |
| Operating temp | -40 to +60 °C |
| Applicable terrain | all terrains except weak-texture areas (e.g., water, snow) |
Application Scenarios
- Real-time target detection, locking and tracking
- UAV visual guidance and terminal guidance
- Airborne pods and intelligent gimbal systems
- Border, coastal and perimeter surveillance
- Secondary development for embedded AI vision
