DA030H | AI Intelligent Modules

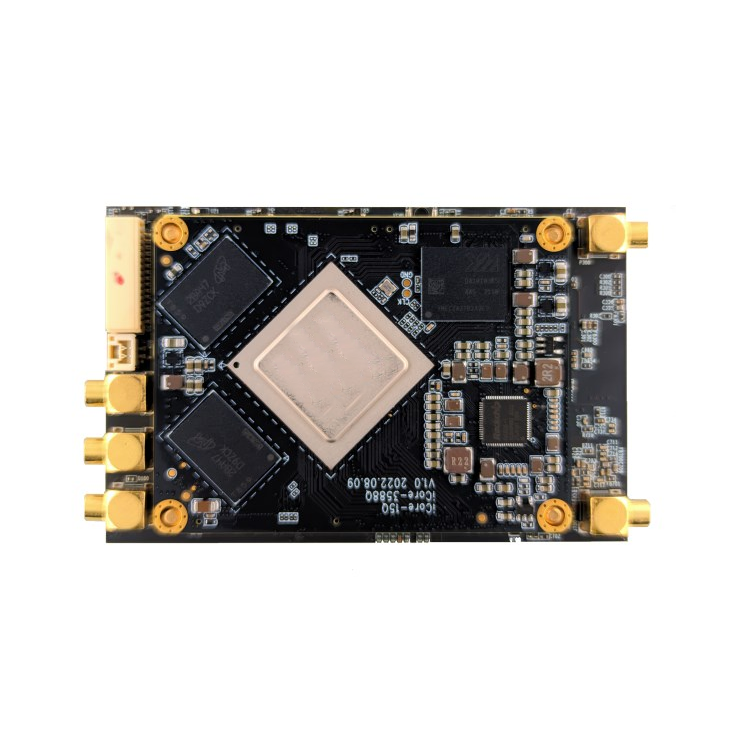

Trac-DA030H Video Tracking Board

Weight: 50.3 g bare board / 108 g with heat sink
Tracking algorithms: centroid, correlation, multi-target, AI-based
Control interfaces: RS422 / RS232 / UDP / TCP
Power consumption: < 10 W typical

$3,231Sample price — bulk pricing on requestUSD · EXW Hong Kong

Send inquiry

SKUDA030H

MOQ1 PC

Lead timeTo be confirmed in the quotation for the selected configuration and destination

Price basisUSD · EXW Hong Kong

Product Overview

Aerosys offers the Trac-DA030H Video Tracking Board, an AI module. tracking board for mission-critical surveillance: dual SDI inputs, multi-channel outputs, AI-based multi-target tracking and large local storage for extended recording. For input, the published value is 2 × SDI (3G-SDI / HD-SDI), 1 × CVBS (PAL); weight is published as 50.3 g bare board / 108 g with heat sink. Configuration and supply scope are confirmed for the selected set and itemised in the quotation.

Technical Specifications

Parameter	Value
Compute and algorithms
Output	1 × SDI (3G-SDI / HD-SDI), 1 × CVBS (PAL)
Tracking algorithms	centroid, correlation, multi-target, AI-based
Interfaces and performance
Input	2 × SDI (3G-SDI / HD-SDI), 1 × CVBS (PAL)
Tracking frame rate	60 Hz (up to 100 Hz with compatible camera)
Tracking accuracy	≤ 1 pixel
Tracking speed	≥ 64 pixels/frame
Recognition accuracy	0.616 mAP (IoU 0.5, VisDrone2019)
Control interfaces	RS422 / RS232 / UDP / TCP
Power and environment
Power consumption	< 10 W typical
Operating voltage	12 V DC ± 2 V
Dimensions	85 × 55 mm
Weight	50.3 g bare board / 108 g with heat sink
Additional published specifications
Serial ports	1 × RS422, 1 × RS232, 1 × TTL (3 V)
Network	Gigabit Ethernet (RTSP stream output)
USB	1 × USB 2.0, 1 × debug serial port
Memory capacity	64 GB (expandable)
Local storage	≥ 3 h recording @ 6 Mbps
Min. trackable target	2 × 2 px (centroid) / 8 × 8 px (correlation)
Min. target contrast	≥ 3 % (centroid)
Multi-target capacity	≤ 64 targets
Recognition frame rate	25 Hz
Min. recognizable target	10 × 10 px
Video compression	H.264 / H.265
Stream protocols	RTSP / UDP / RTMP / HLS
Operating temp	-40 °C to +65 °C
Storage temp	-55 °C to +75 °C

Configuration and supply

MOQ1 PC

Price$3,231

Price basisEXW Hong Kong; freight, insurance, import duty, VAT and destination charges excluded.

Supply scopeItemised in the quotation for the selected configuration.

Lead timeConfirmed in the quotation for the selected configuration and destination.

PackingDimensions and gross weight confirmed with the quotation.

Export documents are confirmed per destination.

Application Scenarios

Real-time target detection, locking and tracking
UAV visual guidance and terminal guidance
Airborne pods and intelligent gimbal systems
Border, coastal and perimeter surveillance
Secondary development for embedded AI vision
