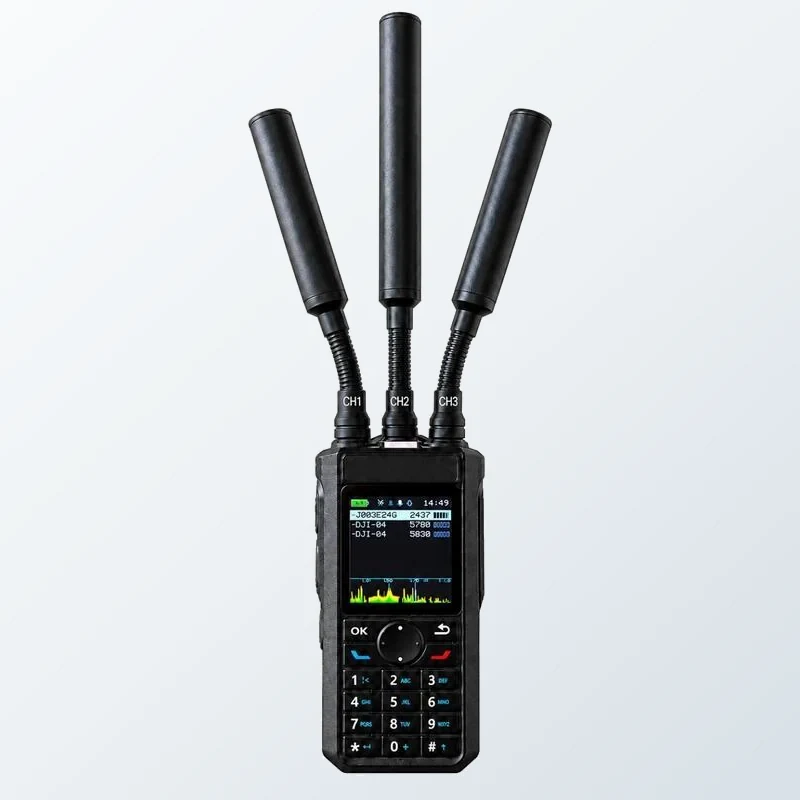

F13M Ultra-Wideband Portable Drone Detector
- Working mode: detection
- Detection frequency band: 300 MHz - 13,400 MHz (1 MHz tuning step)
- Detection distance: 500 m - 5 km, varies with band, environment and drone transmit power
Product Overview
The F13M Ultra-Wideband Portable Drone Detector is part of the CUAS range. Potential applications include: Airport and critical-site perimeter monitoring. Key specifications: Working mode: detection; Detection frequency band: 300 MHz - 13,400 MHz (1 MHz tuning step); Detection distance: 500 m - 5 km, varies with band, environment and drone transmit power. Aerosys Technology supplies it EXW from Hong Kong; MOQ 1 PC.
Handheld ultra-wideband drone detector covering 300 MHz - 13.4 GHz with real-time full-band spectrum output. It recognises more than 100 drone types - DJI, Autel, FIMI and Hubsan links, analog and digital FPV such as Walksnail, HDZero, Artosyn ArtLynk and OpenIPC, plus Wi-Fi drones - at 500 m to 5 km, reads RID over 2.4 / 5.8 GHz Wi-Fi and Bluetooth, and stores logs on board, in about 450 g at IP54.
Counter-UAS (CUAS) systems for low-altitude airspace defense — RF detection, direction finding, jamming, GNSS spoofing and electro-optical tracking to detect, locate and neutralize unauthorized drones.
Key Features
- Working mode:detection
- Detection frequency band:300 MHz - 13,400 MHz (1 MHz tuning step)
- Detection distance:500 m - 5 km, varies with band, environment and drone transmit power
- Model recognition:100+ drone types incl. DJI, Autel, FIMI, Hubsan, analog and digital FPV (Walksnail, HDZero, Artosyn ArtLynk, BetaFPV P1, Antigravity A1, OpenIPC) and Wi-Fi drones
- Features:real-time full-band spectrum output, RID reception over 2.4 GHz / 5.8 GHz Wi-Fi and 2.4 GHz Bluetooth (GB 46750-2025, ASTM F3411-22a, ASD-STAN prEN 4709-002), vibration / sound / GPIO alerts, built-in logging, OTA upgrade via Type-C or Bluetooth, interface for a backpack jammer
- Screen size:2.4-inch TFT display, 240 × 320
Configuration and application fit
Published selection points
- Published specification: Working mode: detection
- Published specification: Detection frequency band: 300 MHz - 13,400 MHz (1 MHz tuning step)
- Published specification: Detection distance: 500 m - 5 km, varies with band, environment and drone transmit power
- Published specification: Model recognition: 100+ drone types incl. DJI, Autel, FIMI, Hubsan, analog and digital FPV (Walksnail, HDZero, Artosyn ArtLynk, BetaFPV P1, Antigravity A1, OpenIPC) and Wi-Fi drones
- Published specification: Features: real-time full-band spectrum output, RID reception over 2.4 GHz / 5.8 GHz Wi-Fi and 2.4 GHz Bluetooth (GB 46750-2025, ASTM F3411-22a, ASD-STAN prEN 4709-002), vibration / sound / GPIO alerts, built-in logging, OTA upgrade via Type-C or Bluetooth, interface for a backpack jammer
- Published specification: Screen size: 2.4-inch TFT display, 240 × 320
For a configuration quote, send the model, quantity, destination and intended civil or commercial use. Add the required interface, payload, cargo or sensor details where relevant so the supply scope can be checked clearly.
Technical Specifications
| Parameter | Value |
|---|---|
| Working mode | detection |
| Detection frequency band | 300 MHz - 13,400 MHz (1 MHz tuning step) |
| Detection distance | 500 m - 5 km, varies with band, environment and drone transmit power |
| Model recognition | 100+ drone types incl. DJI, Autel, FIMI, Hubsan, analog and digital FPV (Walksnail, HDZero, Artosyn ArtLynk, BetaFPV P1, Antigravity A1, OpenIPC) and Wi-Fi drones |
| Features | real-time full-band spectrum output, RID reception over 2.4 GHz / 5.8 GHz Wi-Fi and 2.4 GHz Bluetooth (GB 46750-2025, ASTM F3411-22a, ASD-STAN prEN 4709-002), vibration / sound / GPIO alerts, built-in logging, OTA upgrade via Type-C or Bluetooth, interface for a backpack jammer |
| Screen size | 2.4-inch TFT display, 240 × 320 |
| Antenna interface | 3 detection antennas (SMA male) |
| External interfaces | Type-C, Bluetooth, GPIO |
| Endurance | about 8 h (single battery) |
| Power supply | detachable 7.4 V lithium-ion battery, 2,800 mAh, Type-C 5 V / 1 A charging |
| Protection rating | IP54 |
| Operating temperature | -25 °C to +55 °C |
| Dimensions | 140 × 63 × 41 mm (main unit without antenna clip), 360 × 63 × 54 mm with antennas and clip |
| Weight | about 450 g (with battery and antenna) |
Application Scenarios
- Airport and critical-site perimeter monitoring
- Industrial plant airspace awareness
- Event and venue security
- Prison and correctional facility monitoring
- Detection trials and system integration
