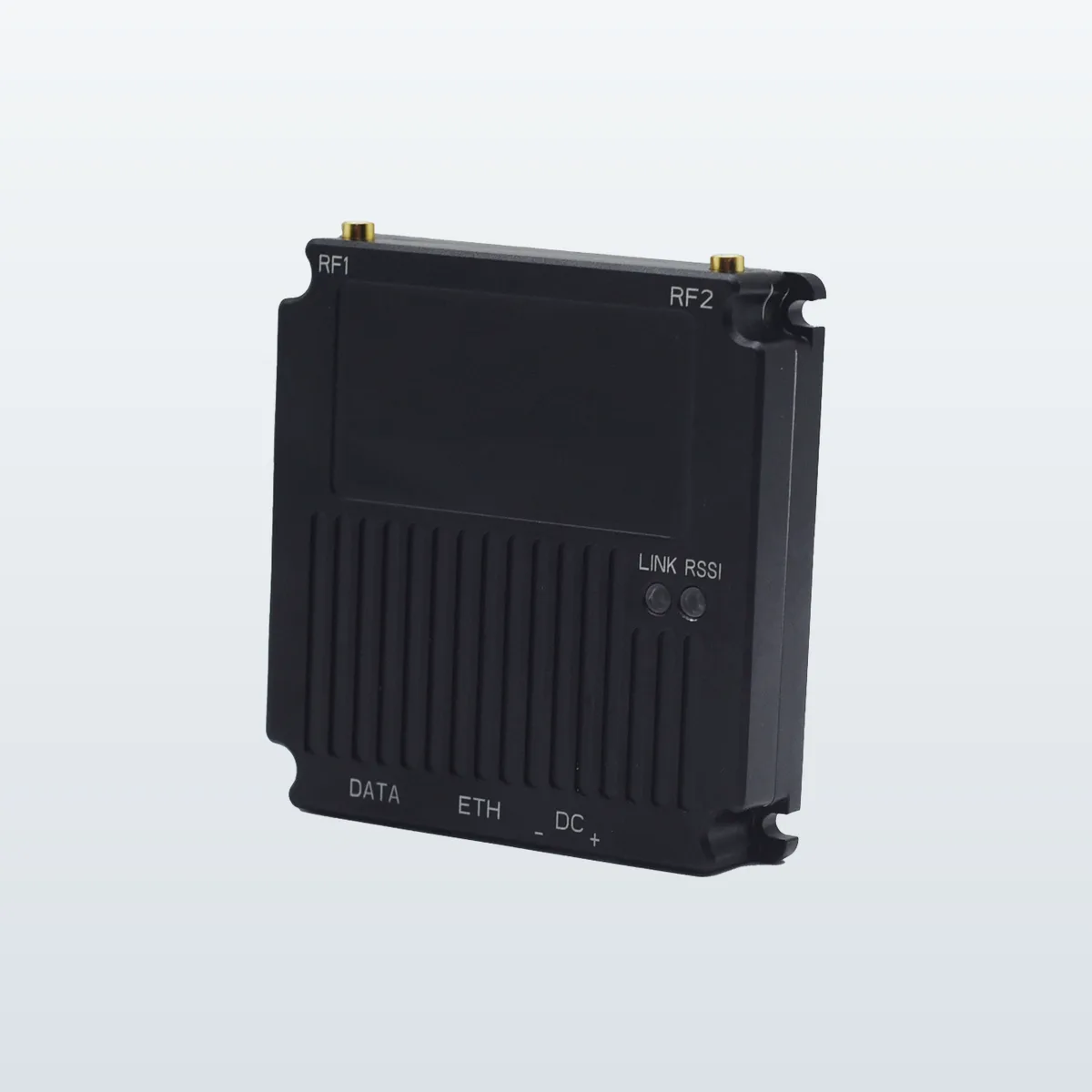

AT-M501E airborne MIMO mesh radio
- Radio type: SDR airborne MIMO mesh radio
- RF output power: 0.5 W x 2
- Frequency band: order-configurable, model-specific option(s) within 70 MHz-6 GHz; confirm the selected configuration in the quotation. The published range is not simultaneous full-range coverage
Product Overview
AT-M501E airborne MIMO mesh radio is an airborne SDR MIMO mesh radio for UAV communications. It supports frequency-hopping operation, dynamic routing and multi-hop networking for IP video, data and voice traffic. Key specifications: Radio type: SDR airborne MIMO mesh radio; RF output power: 0.5 W x 2; Frequency band: order-configurable, model-specific option(s) within 70 MHz-6 GHz; confirm the selected configuration in the quotation. The published range is not simultaneous full-range coverage. The minimum order quantity for AT-M501E is 2 PC, as listed in the supplied product sheet.
AT-M501E is an airborne SDR MIMO mesh radio for UAV communications. It supports frequency-hopping operation, dynamic routing and multi-hop networking for IP video, data and voice traffic.
Select the mesh radio by mounting form, RF band, output power, channel bandwidth, interfaces, node count and required topology. Manufacturer-stated link range depends on configuration, line of sight, terrain and radio interference.
Key Features
- Radio type:SDR airborne MIMO mesh radio
- RF output power:0.5 W x 2
- Frequency band:order-configurable, model-specific option(s) within 70 MHz-6 GHz; confirm the selected configuration in the quotation. The published range is not simultaneous full-range coverage
- Receive sensitivity:-103 dBm at 5 MHz
- MIMO technology:Space-time coding, receive diversity, TX/RX beamforming and spatial multiplexing
- Networking:P2P, P2MP and mesh; dynamic routing and multi-hop relay
Configuration and application fit
Published selection points
- Published specification: Radio type: SDR airborne MIMO mesh radio
- Published specification: RF output power: 0.5 W x 2
- Published specification: Frequency band: order-configurable, model-specific option(s) within 70 MHz-6 GHz; confirm the selected configuration in the quotation. The published range is not simultaneous full-range coverage
- Published specification: Receive sensitivity: -103 dBm at 5 MHz
- Published specification: MIMO technology: Space-time coding, receive diversity, TX/RX beamforming and spatial multiplexing
- Published specification: Networking: P2P, P2MP and mesh; dynamic routing and multi-hop relay
Send the model, quantity, destination, required frequency band, network topology, interfaces and intended operating distance. Include node count and relay requirements where applicable. Current stock, final configuration, price and dispatch timing are confirmed in the quotation.
Technical Specifications
| Parameter | Value |
|---|---|
| Radio type | SDR airborne MIMO mesh radio |
| RF output power | 0.5 W x 2 |
| Frequency band | order-configurable, model-specific option(s) within 70 MHz-6 GHz; confirm the selected configuration in the quotation. The published range is not simultaneous full-range coverage |
| Receive sensitivity | -103 dBm at 5 MHz |
| MIMO technology | Space-time coding, receive diversity, TX/RX beamforming and spatial multiplexing |
| Networking | P2P, P2MP and mesh; dynamic routing and multi-hop relay |
| Single-hop air-to-ground range | 10-30 km (manufacturer-stated; configuration and conditions apply) |
| Channel bandwidth | 1.25/2.5/5/10/20 MHz |
| Power consumption | 0.3-0.5 A operating; 0.2-0.3 A standby at 12 V |
| Dimensions | 60 x 58 x 13.2 mm |
| Weight | 64 g including heatsink |
Application Scenarios
- UAV, USV and UGV communications
- Multi-hop mesh relay for mobile or remote sites
- IP video, data and voice transport
Related Products
AT-M503E airborne MIMO mesh radio
AT-M503E is an airborne SDR MIMO mesh radio for UAV communications. It supports frequency-hopping operation, dynamic routing and m
AT-M504E airborne MIMO mesh radio
AT-M504E is an airborne SDR MIMO mesh radio for UAV communications. It supports frequency-hopping operation, dynamic routing and m

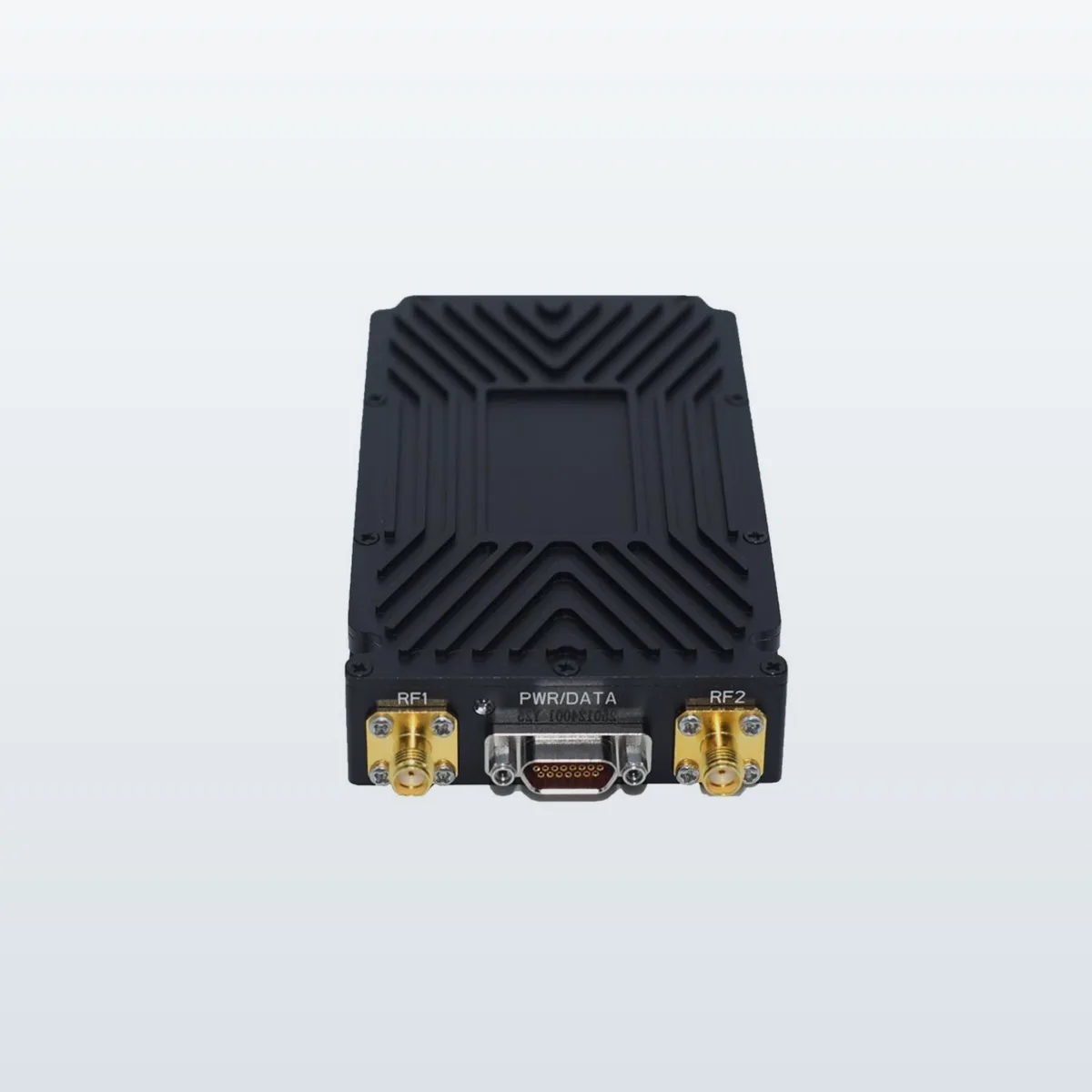

AT-F355 airborne MIMO mesh radio
AT-F355 is an airborne SDR MIMO mesh radio for UAV communications. It supports frequency-hopping operation, dynamic routing and mu

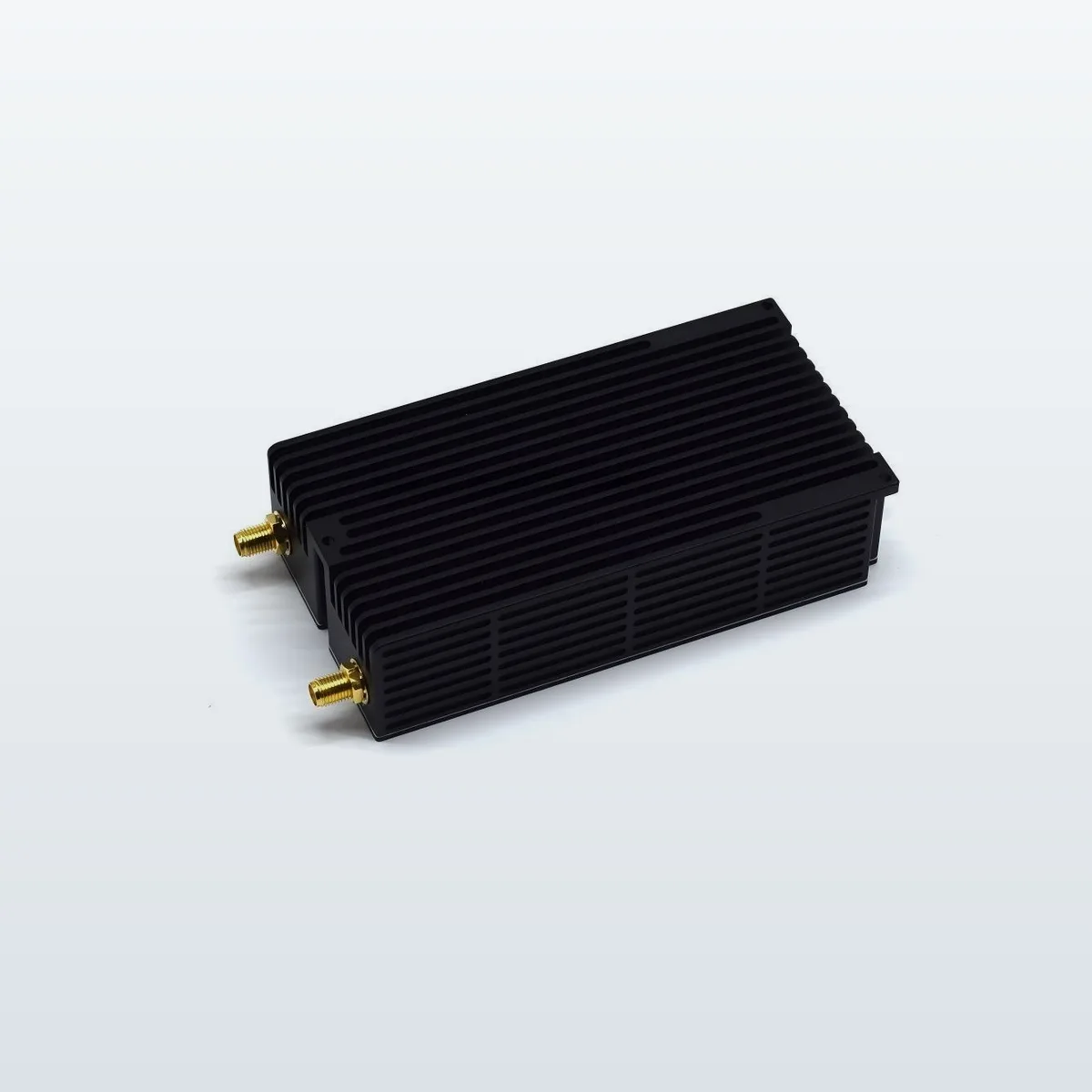

AT-F356 airborne MIMO mesh radio
