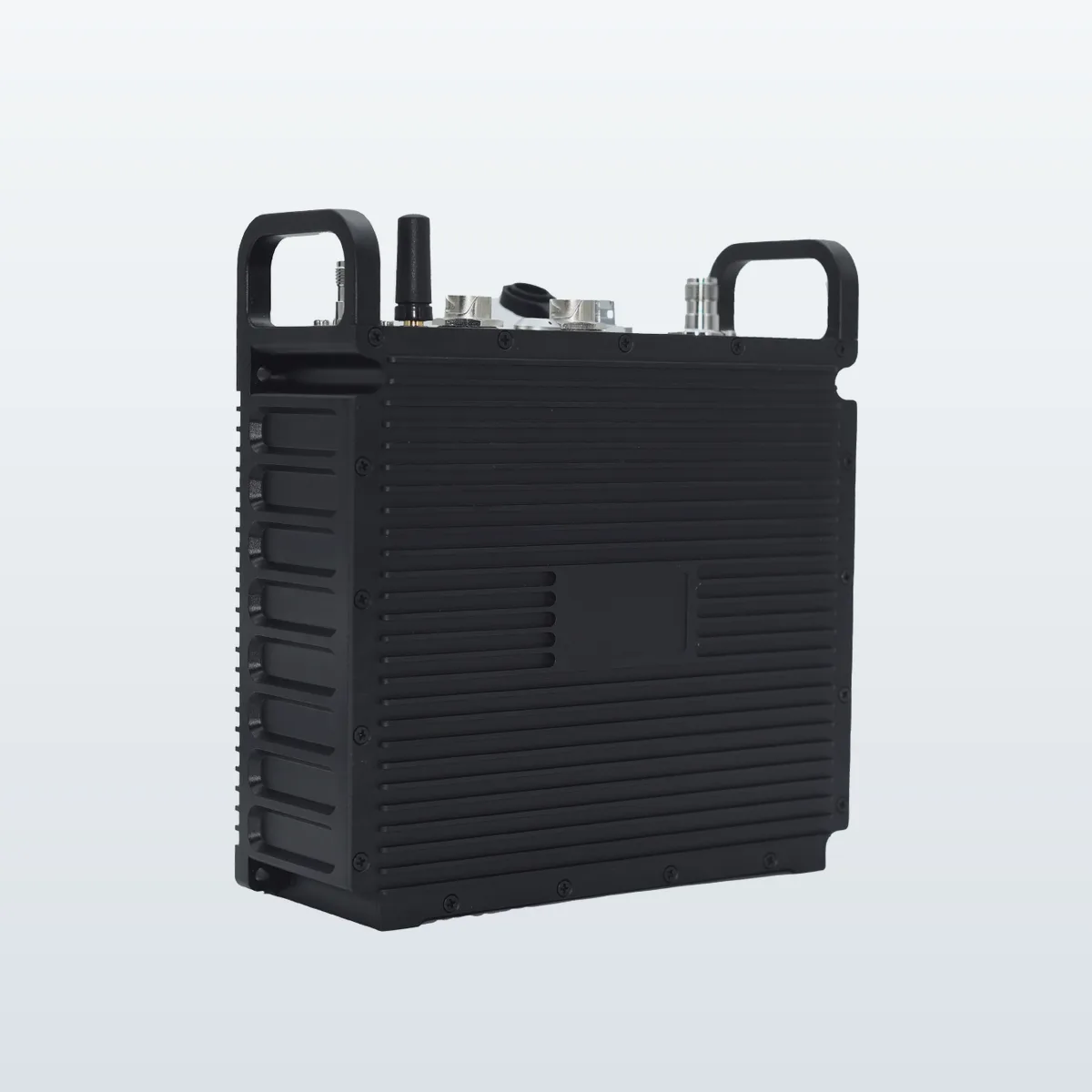

AT-F366 vehicular MIMO mesh radio
- Radio type: SDR vehicular MIMO mesh radio
- RF output power: 10 W x 2
- Frequency band: order-configurable, model-specific option(s) within 350 MHz-6 GHz; confirm the selected configuration in the quotation. The published range is not simultaneous full-range coverage
Product Overview
AT-F366 vehicular MIMO mesh radio is a vehicle-mounted SDR MIMO mesh radio for mobile broadband communications. It supports frequency hopping, mesh networking and point-to-point or multipoint IP links for video, data and voice. Key specifications: Radio type: SDR vehicular MIMO mesh radio; RF output power: 10 W x 2; Frequency band: order-configurable, model-specific option(s) within 350 MHz-6 GHz; confirm the selected configuration in the quotation. The published range is not simultaneous full-range coverage. The minimum order quantity for AT-F366 is 2 PC, as listed in the supplied product sheet.
AT-F366 is a vehicle-mounted SDR MIMO mesh radio for mobile broadband communications. It supports frequency hopping, mesh networking and point-to-point or multipoint IP links for video, data and voice.
Select the mesh radio by mounting form, RF band, output power, channel bandwidth, interfaces, node count and required topology. Manufacturer-stated link range depends on configuration, line of sight, terrain and radio interference.
Key Features
- Radio type:SDR vehicular MIMO mesh radio
- RF output power:10 W x 2
- Frequency band:order-configurable, model-specific option(s) within 350 MHz-6 GHz; confirm the selected configuration in the quotation. The published range is not simultaneous full-range coverage
- Receive sensitivity:-103 dBm at 5 MHz
- MIMO technology:Space-time coding, receive diversity, TX/RX beamforming and spatial multiplexing
- Networking:P2P, P2MP and mesh; dynamic routing and multi-hop relay
Configuration and application fit
Published selection points
- Published specification: Radio type: SDR vehicular MIMO mesh radio
- Published specification: RF output power: 10 W x 2
- Published specification: Frequency band: order-configurable, model-specific option(s) within 350 MHz-6 GHz; confirm the selected configuration in the quotation. The published range is not simultaneous full-range coverage
- Published specification: Receive sensitivity: -103 dBm at 5 MHz
- Published specification: MIMO technology: Space-time coding, receive diversity, TX/RX beamforming and spatial multiplexing
- Published specification: Networking: P2P, P2MP and mesh; dynamic routing and multi-hop relay
Send the model, quantity, destination, required frequency band, network topology, interfaces and intended operating distance. Include node count and relay requirements where applicable. Current stock, final configuration, price and dispatch timing are confirmed in the quotation.
Technical Specifications
| Parameter | Value |
|---|---|
| Radio type | SDR vehicular MIMO mesh radio |
| RF output power | 10 W x 2 |
| Frequency band | order-configurable, model-specific option(s) within 350 MHz-6 GHz; confirm the selected configuration in the quotation. The published range is not simultaneous full-range coverage |
| Receive sensitivity | -103 dBm at 5 MHz |
| MIMO technology | Space-time coding, receive diversity, TX/RX beamforming and spatial multiplexing |
| Networking | P2P, P2MP and mesh; dynamic routing and multi-hop relay |
| Single-hop air-to-ground range | 150-300 km (manufacturer-stated; configuration and conditions apply) |
| Channel bandwidth | 1.25/2.5/5/10/20 MHz; 40 MHz optional |
| Dimensions | 173 x 157 x 64.4 mm |
| Weight | 1,992 g |
Application Scenarios
- UAV, USV and UGV communications
- Multi-hop mesh relay for mobile or remote sites
- IP video, data and voice transport
Related Products

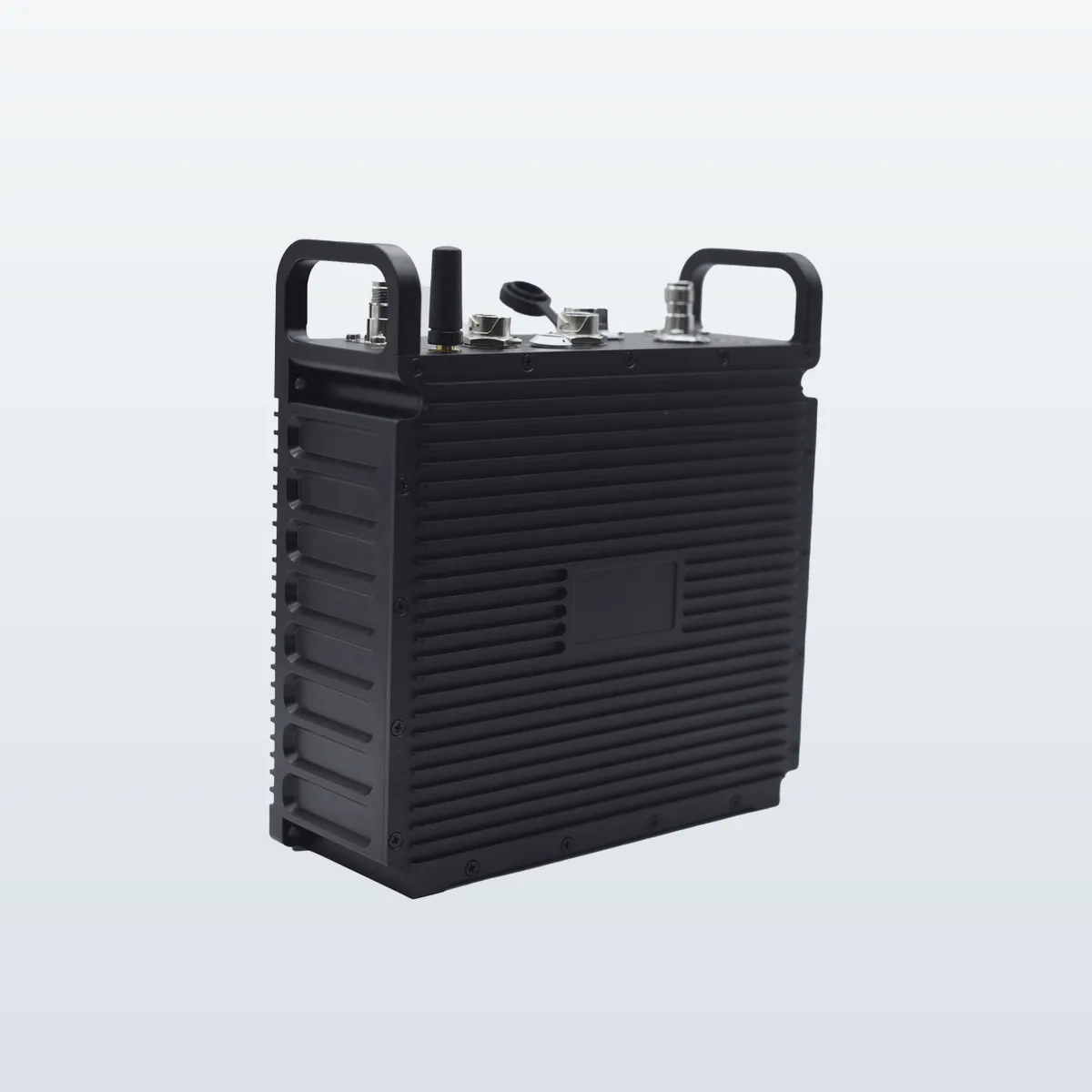

AT-F367 vehicular MIMO mesh radio
AT-F367 is a vehicle-mounted SDR MIMO mesh radio for mobile broadband communications. It supports frequency hopping, mesh networki

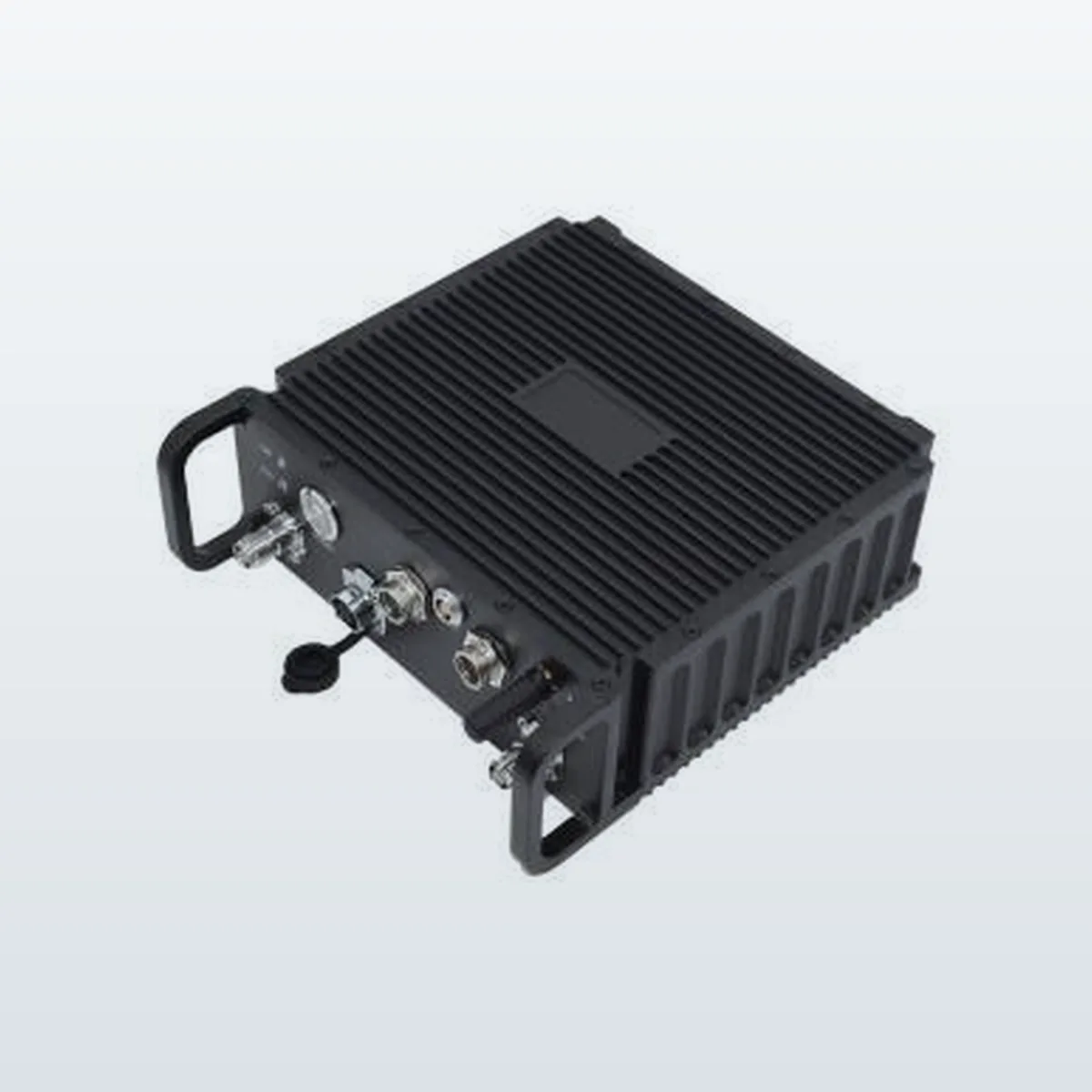

AT-F370 vehicular MIMO mesh radio
AT-F370 is a vehicle-mounted SDR MIMO mesh radio for mobile broadband communications. It supports frequency hopping, mesh networki

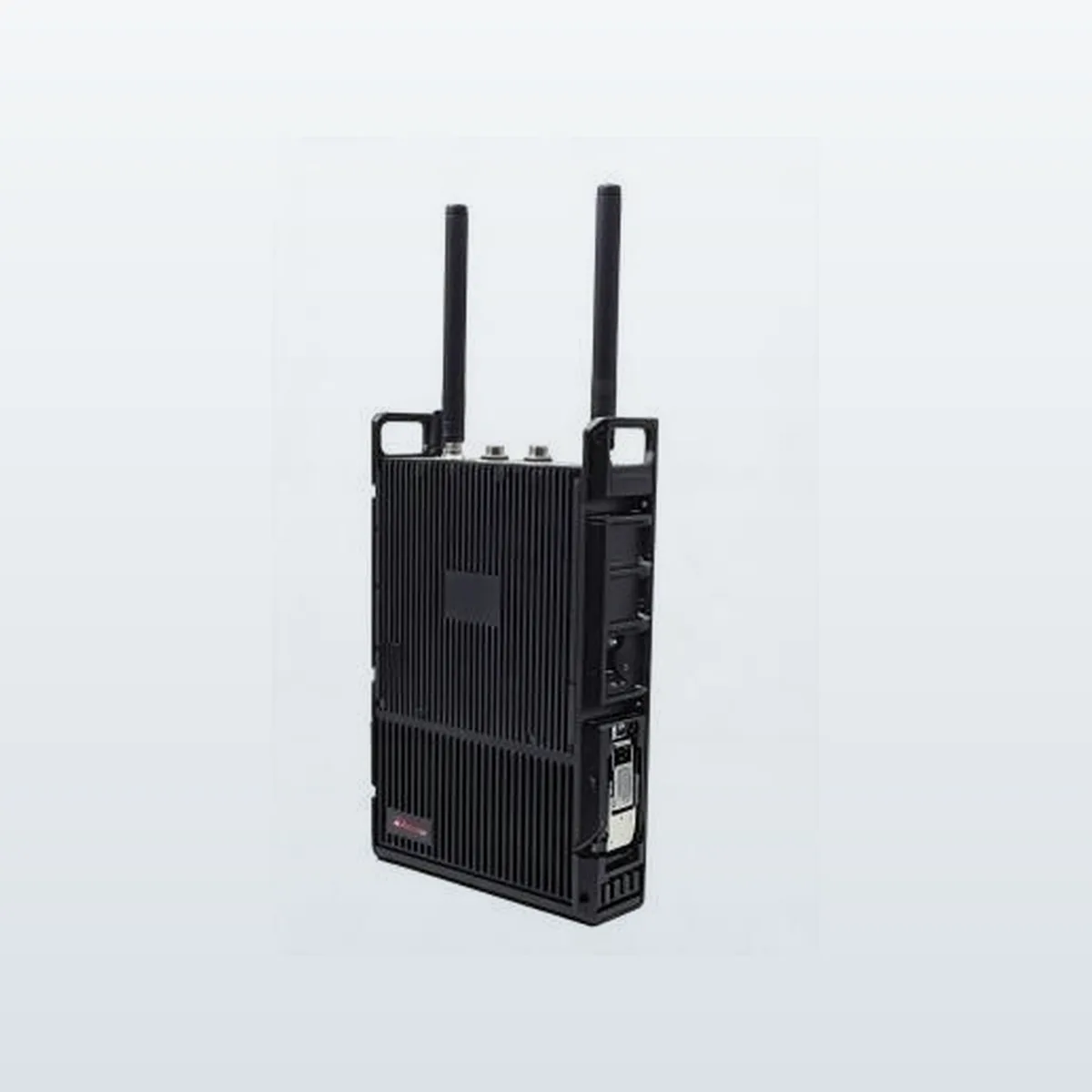

AT-F360 backpack MIMO mesh radio
AT-F360 is a backpack SDR MIMO mesh radio for portable field communications. Its mesh networking and multi-hop routing support IP

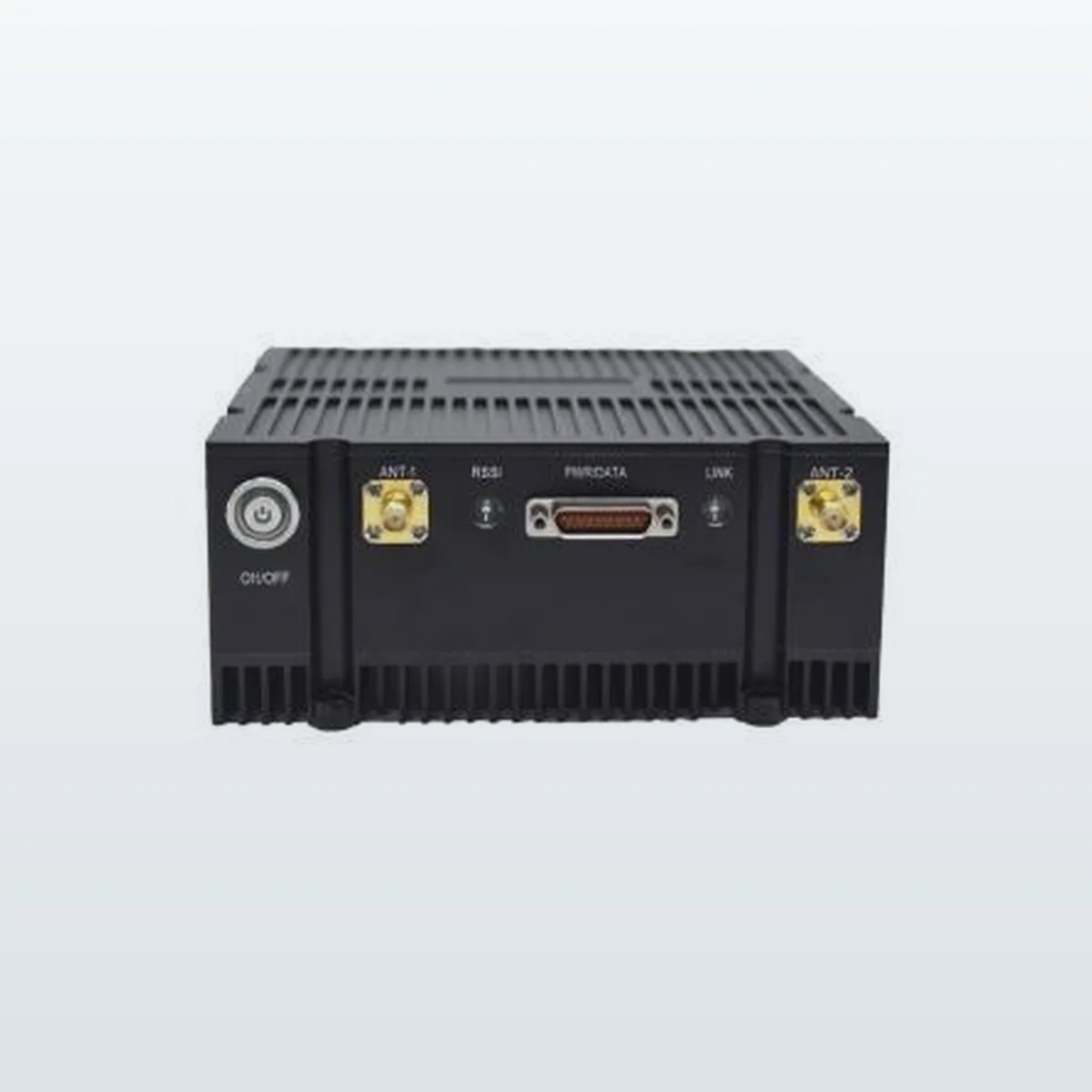

AT-F359 airborne MIMO mesh radio
AT-F359 is an airborne SDR MIMO mesh radio for UAV communications. It supports frequency-hopping operation, dynamic routing and mu
Frequently Asked Questions
What is the MOQ for AT-F366?
The minimum order quantity for AT-F366 is 2 PC, as listed in the supplied product sheet.
Does the stated link range apply in every operating environment?
No. The listed range is a manufacturer-stated reference. Actual performance depends on the configured frequency, antennas, line of sight, terrain, interference, topology and data load. Confirm the link budget for the intended route and configuration.
What details should I include in a quotation request?
Send the model, quantity, destination, required frequency band, network topology, interfaces and intended operating distance. Include node count and relay requirements where applicable. Current stock, final configuration, price and dispatch timing are confirmed in the quotation.
